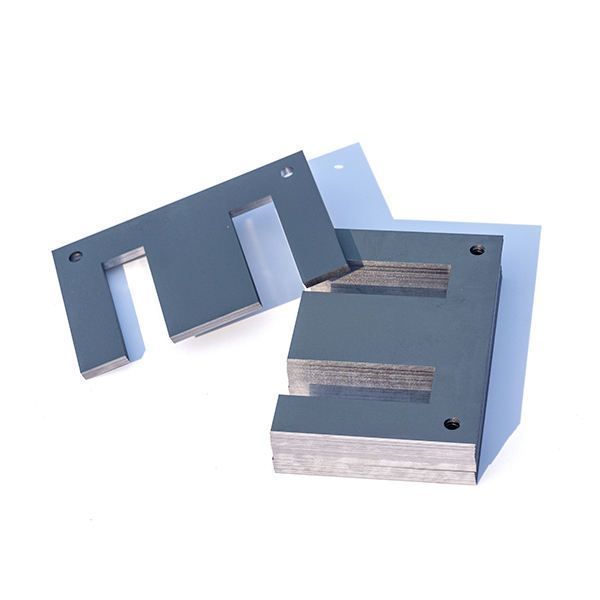

JWDC EI electric board with transformer core seal/international ei lamination standard/silicon steel core transformer
- 100.00 >=500 kilograms
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| technology: | cold rolled | Height - Seated (max): | custom made |
| Current Saturation - Series: | custom made | Current Saturation - Parallel: | custom made |
| model: | EI-19-EI-76.2,EI-28-76.2 | brand: | Mastery |
| type: | Non-oriented silicon steel | Resistor Tolerance: | Do not |
| feature: | custom made | Surface treatment: | coating |
| Number of coils: | custom made | rated power: | custom made |
| inductance: | custom made | shield: | Do not |
| Resist: | custom made | Packaging Details: | 25kg/box, 25-27 tons/box |
| DC Resistance (DCR) - Parallel: | custom made | Supplier Type: | Agent, production enterprise |
| Installation type: | custom made | Frequency - Self-Resonance: | custom made |
| Material - Core: | Iron craft customization | payment terms: | L/C,D/P,D/A,T/T,MoneyGram |
| type of packaging: | custom made | type: | Non-oriented silicon steel |
| Inductance - Parallel: | custom made | DC Resistance (DCR): | Do not |
| application: | Electronics, transformer core | Dimensions / Dimensions: | custom made |
| Card: | Mastery | Inductor - Series: | custom made |
| Supply capacity: | 10kg per day | place of origin; place of origin: | Tianjing, China |
| Function: | Conductive | product name: | EI Core |
| Current - Saturation: | Do not | Material quality: | 50W470/1300 |
| Packaging/Case: | custom made | Available media: | Do not |
| Rated Current - Parallel: | custom made | Ask @ Frequency: | Do not |
| Rated Current (Ampere): | custom made | Certification: | ISO9001:2008 |
| DC Resistance (DCR) - Series: | custom made | high: | 0.23mm/0.3mm -/0.35mm/0.5mm |
| port: | Tianjin harbor | Temperature Coefficient: | Do not |
| Material: | copper wire | Operating temperature: | constant temperature |
| Packaging Preview: |
Product Description
Specification
type | B1 | C | H | V1 | V2 | u | B2 | Hole(Φ) | Aperture (Φ |
EI-28 | 28 | twenty one | 4 | 4 | 4 | 4 | 28 | ||
EI-30 | 30 | 20 | 5 | 5 | 5 | 5 | 30 | ||
EI-35 | 35 | 24.5 | 5 | 5 | 5 | 5 | 35 | ||
EI-38.4 | 38.4 | 25.6 | 6.4 | 6.4 | 6.4 | 6.4 | 38.4 | ||
EI-41 | 41 | 27 | 6 | 6 | 6 | 6 | 41 | ||
EI-42 | 42 | 28 | 7 | 7 | 7 | 7 | 42 | ||
EI-48 | 48 | 32 | 8 | 8 | 8 | 8 | 48 | ||
EI-48 4H | 48 | 32 | 8 | 8 | 8 | 8 | 48 | 4 | 3.5 |
EI-54 | 54 | 36 | 9 | 9 | 9 | 9 | 54 | ||
EI-54 4H | 54 | 36 | 9 | 9 | 9 | 9 | 54 | 4 | 3.5 |
EI-57 | 57 | 38 | 9.5 | 9.5 | 9.5 | 9.5 | 57 | ||
EI-57 4H | 57 | 38 | 9.5 | 9.5 | 9.5 | 9.5 | 57 | 4 | 4 |
EI-60 | 60 | 40 | 10 | 10 | 10 | 10 | 60 | ||
EI-66 | 66 | 44 | 11 | 11 | 11 | 11 | 66 | ||
EI-66 4H | 66 | 44 | 11 | 11 | 11 | 11 | 66 | 4 | 4.5 |
EI-67 | 67 | 46 | 10 | 10 | 10 | 10 | 67 | ||
EI-76.2 | 76.2 | 50.8 | 12.7 | 12.7 | 12.7 | 12.7 | 76.2 | ||
EI-76.2 4H | 76.2 | 50.8 | 12.7 | 12.7 | 12.7 | 12.7 | 76.2 | 4 | 5 |
EI-85.8 4H | 85.8 | 57.2 | 14.3 | 14.3 | 14.3 | 14.3 | 85.8 | 4 | 5 |
EI-96 4H | 96 | 64 | 16 | 16 | 16 | 16 | 96 | 4 | 6 |
EI-105 4H | 105 | 70 | 17.5 | 17.5 | 17.5 | 17.5 | 105 | 4 | 6 |
EI-114 4H | 114 | 76 | 19 | 19 | 19 | 19 | 114 | 4 | 7 |
| EI-133.2 4H | 133.2 | 88.8 | 22.2 | 22.2 | 22.2 | 22.2 | 133.2 | 4 | 7 |
EI-150 4H | 150 | 100 | 25 | 25 | 25 | 25 | 150 | 4 | 8 |
EI-152.4 4H | 152.4 | 101.6 | 25.4 | 25.4 | 25.4 | 25.4 | 152.4 | 4 | 8 |
EI-162 4H | 162 | 108 | 27 | 27 | 27 | 27 | 162 | 4 | 8 |
EI-180 4H | 180 | 120 | 30 | 30 | 30 | 30 | 180 | 4 | 10 |
EI-192 4H | 192 | 128 | 32 | 32 | 32 | 32 | 192 | 4 | 8 |
EI-200 4H | 200 | 130.2 | 30 | 30 | 30 | 30 | 200 | 4 | 8 |
EI-210 4H | 210 | 140 | 35 | 35 | 35 | 35 | 210 | 4 | 8 |
EI-228.6 4H | 228.6 | 152 | 38.1 | 38.1 | 38.1 | 38.1 | 228.6 | 4 | 10 |
