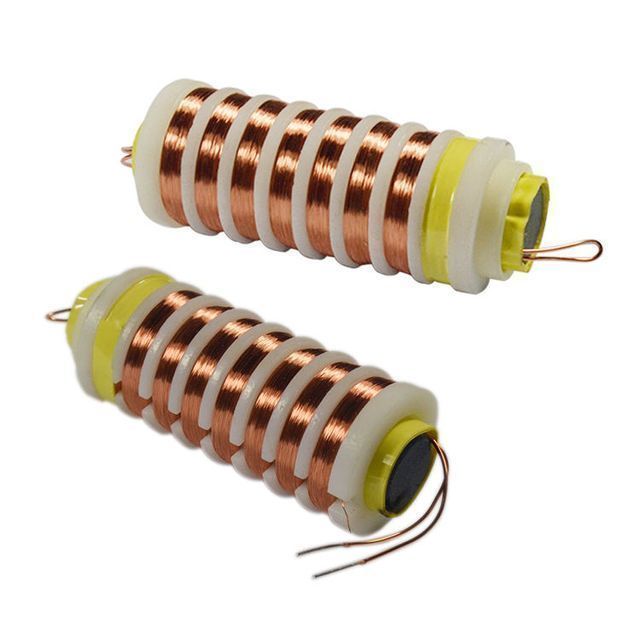

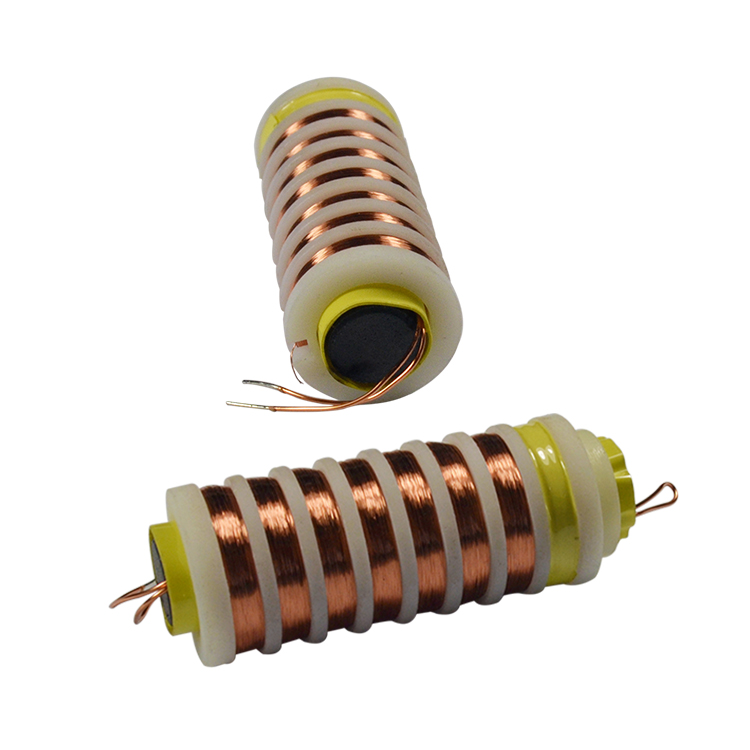

Chipsen transformer manufacturer 5KV-40KV high voltage step-up transformer step-up transformer
- 5.00 1 - 4999 pieces
- 3.30 5000 - 99999 pieces
- 1.23 100000 - 99999999 pieces
- 0.35 >=100000000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Advantage: | Provide OEM service | brand: | chipson |

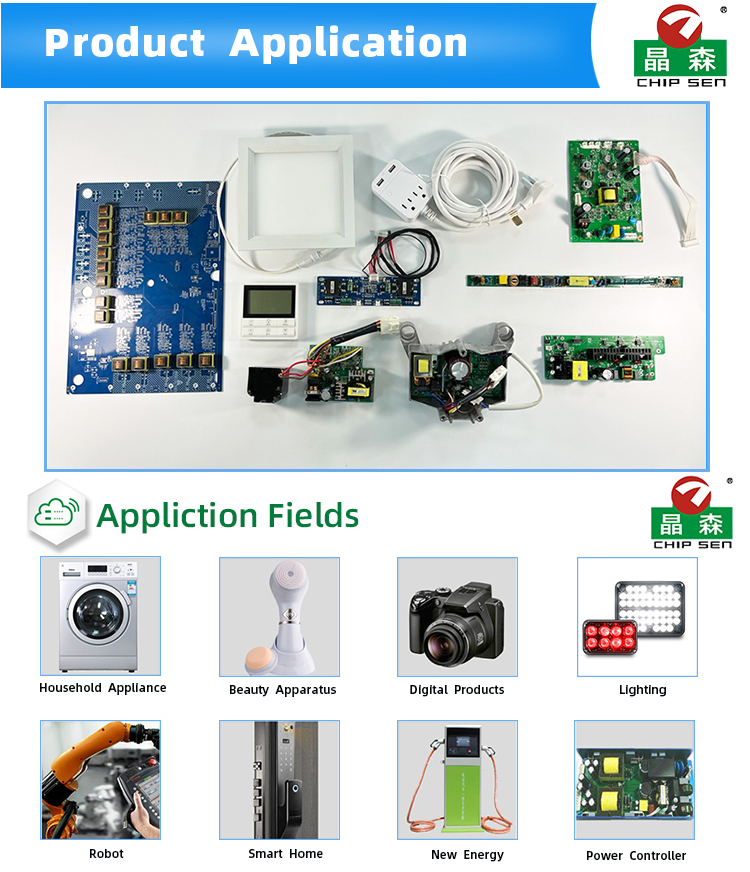

| application: | Ozone Generator, Air Purifier | Operating temperature: | -20~180 |
| port: | Shenzhen Yantian | Supply capacity: | 1,000,000 pieces of high frequency SMP electronic transformers per month |
| product name: | High Voltage Ferrite Transformer | Input voltage: | DC 12-24 |
| Supplier type: | manufacturer | model: | Xinsen-CHG1015 |
| Packaging Details: | According to customer's requirement. SGS Certified EE Electronic Transformer for High Frequency SMP | The output voltage: | 10KV-40KV |
| Packaging/Case: | Box | type of packaging: | Box |
| Certification: | IATF16949, UL(Calss B & Calss F), REACH, ROHS & CQC | Number of ports: | dual port |
| Payment/Payment: | 220412 | Origin: | Guangdong, China |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal | tolerant: | 1% |
| brand: | chipson | frequency: | 1KHz -200KHz |
| Primary voltage: | 0~250V | Package preview: | |
| type: | step-up transformer, step-up transformer |
Related Products
Product parameters
 |
model. | High frequency transformer CHG1015 |
| Operating frequency range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| The output voltage | 0.5V-15000V | |
| Output current | 0.01A-100A | |
| Storage temperature | +5°C to +95°C | |
| Operating temperature | -40°C to +125°C | |
| storage humidity | 30% to 70% | |
| certified | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
| Design Resources | working frequency | |
| circuit topology | ||
| Input voltage range | ||
| Output power(V/A) | ||
| installation size | ||
| security requirements | ||
| Applications |
