DC transformer with current sensor 200A/2V with hall effect
- 5.30 1 - 99 pieces
- 5.00 100 - 999 pieces
- 4.50 >=1000 pieces
| model: | HOVS-51S03 | brand: | Deheng |
| Rated input: | 200A | Supply capacity: | 100000 pieces per month |
| Packaging Details: | One-piece Hall effect DC current transformer One piece of decompression packaging, please contact us for detailed packaging and also support customization | Operating temperature: | -25+80℃ |
| OEM/ODM: | support | theory: | Hall sensor |
| accuracy: | ≤1.0% | voltage: | 5V |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | port: | Shenzhen |
| Certification: | RoHS ISO9001 | Package preview: | |
| Origin: | China | Rated output: | 2.5±2V |
| type: | custom, current transformer | product name: | Hall effect AC and DC current transformers |

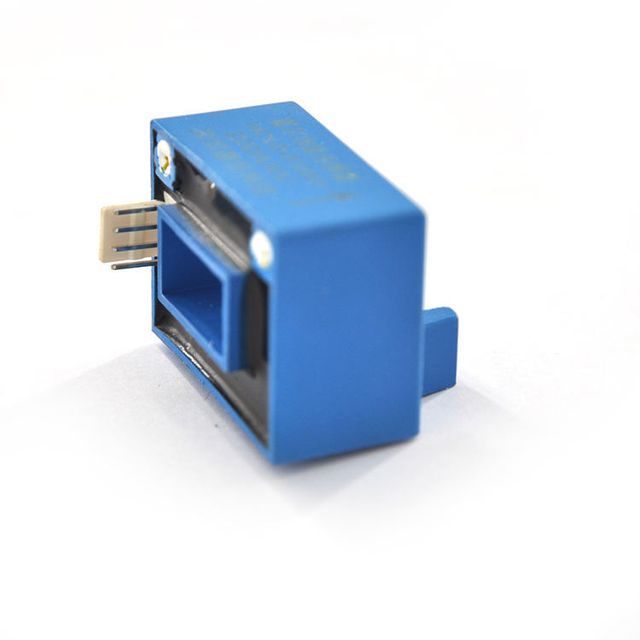

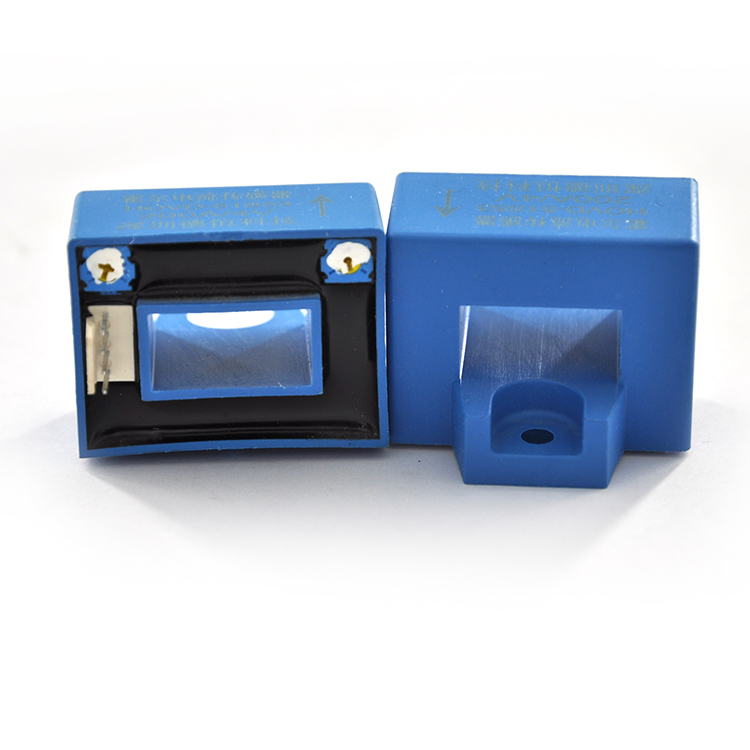

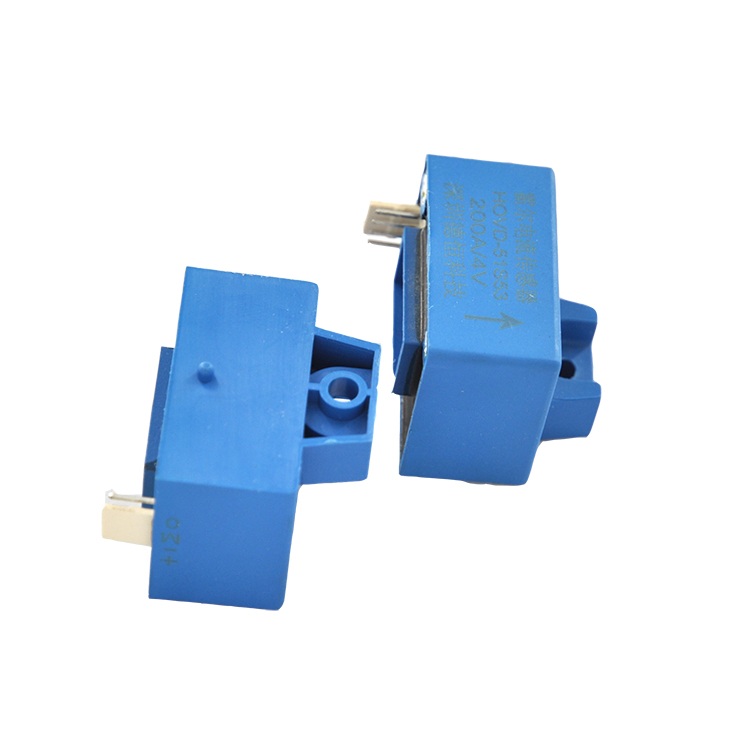

200a/2v hall effect ac dc current sensor dc current transformer
HOVD-51S series Hall current sensor (singlepower supply)
Iintroduce:
This is a newly developed open-loop Hall current sensor series, which can be used to detect DC, AC, high frequency, pulse and various irregular waveform current signals.
Primary and secondary isolation, pressure and security.
Applied to single power supply system, power supply and output voltage support customization
fFeatures:
compact and lightweight
easy to install
Flame retardant (UL94-V0).
Environmental protection (EU RoHS)
Aadvantage:
High precision and good linearity.
Low offset and gain drift.
Low insertion loss and good overload capability.
The frequency band is wide and the response speed is fast.
Aapplication:
Communication base station equipment
New energy equipment
Welder power supply
Communication power
switching power supply,
medical equipment
instrumentation,
Rail
Industrial measurement
Power Control
inverter
Instructions for use:
1. Connect the current according to the calibration direction of the circuit diagram, and pay attention to the current direction.

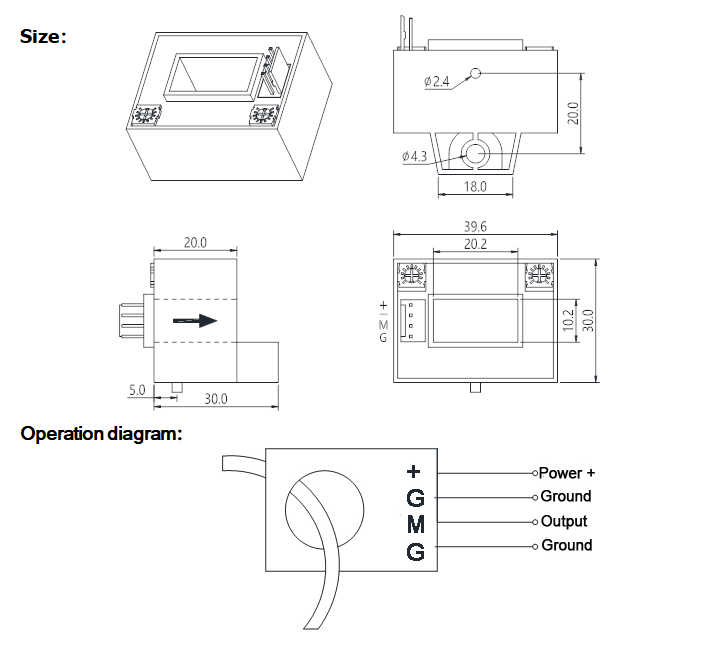

2. Define the connecting lines according to the function pins calibrated in the structure diagram.
Specification:
|
Model scope |
HOVS-51S01 |
HOVS-51S02 |
HOVS-51S03 |
HOVS-51S04 |
HOVS-51S05 |
HOVS-51S06 |
unit |
|
Rated input current |
50 |
100 |
200 |
300 |
400 |
500 |
A |
|
Test current range |
±50 |
±100 |
±200 |
±300 |
±400 |
±500 |
A |
|
Rated output voltage |
2.5±2 (temperature=25℃) |
V |
|||||
|
Load Resistance |
≥10 |
Kiloohms |
|||||
|
voltage |
+5(5%) |
V |
|||||
|
current consumption |
≤15 |
Well |
|||||
|
Zero Offset Voltage |
≤±10（Temperature=25℃） |
millivolt |
|||||
|
magnetic offset voltage |
≤±15 (temperature=25℃) |
millivolt |
|||||
|
Offset Voltage Temperature Drift |
≤±1mV/℃(IP=0 T=-10~+70℃) |
millivolt |
|||||
|
Linearity |
≤0.5 (temperature=25℃) |
% |
|||||
|
accuracy |
≤1 .0 (T=25℃ VC=±15V) |
% |
|||||
|
Response time |
<5 |
microsecond |
|||||
|
insulation voltage
|
3.0 |
kV/min |
|||||
|
-3db bandwidth
|
DC…20 |
kilohertz |
|||||
|
Operating temperature |
-25~+85 |
℃ |
|||||
|
Storage temperature |
-40~+90 |
℃ |
|||||
