Laboratory Sigma Dispersion Rubber Kneader Machine

Supplier: Nantong Hengming Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Angus Chen
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	680360620-650030003000mm;	Name:	Laboratory Sigma Dispersion Rubber Kneader Machine;
Brand Name:	HM;	Key Selling Points:	Competitive price;
Type:	Rubber Mixer;	Port:	Shanghai port;
Supply Ability:	10 Set/Sets per Month;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Color:	Optional;	Capacity:	0.15-6300L;
Applicable Industries:	Manufacturing Plant;	Packaging Detail:	Laboratory Sigma Dispersion Rubber Kneader Machine is packed by plywood, electric parts will be packed in waterproof boxes.;
Certification:	CE ISO;	Weight:	120-75000KG;
Warranty:	1 YEAR;	After-sales Service Provided:	Free spare parts,Engineers available to service machinery overseas;
Place of Origin:	Jiangsu China;	Condition:	New;
Model Number:	0.25-7000L;	Power(W):	0.5-160KW;
Voltage:	380V/50HZ;

Product Description

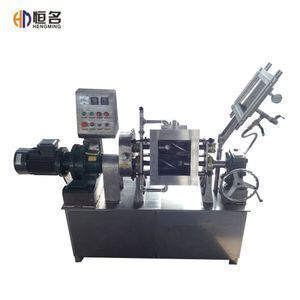

Laboratory Sigma Dispersion Rubber Kneader Machine

The Hengming Laboratory Sigma Dispersion Rubber Kneader Machine offers general purpose kneading of high-to super high-viscosity materials. The kneading effect(kneading, crushing, dispersing) is maximized by the powerful shear force generated between the two strong blades and between the blades and kneading trough. Cooling,heating, and vacuum/decompression are also possible (as options). A flushing-type kneader (flusher), which operates with heat vacuum/decompression, is also available as an option.

Applications for Laboratory Sigma Dispersion Rubber Kneader Machine :

Technical ceramics
Hot-melt adhesives
Manufacture of abrasives
Graphite compounds
Sealing compounds
Lubricants
Hard metal compounds

Advantages of Laboratory Sigma Dispersion Rubber Kneader Machine:

Intensive kneading and dispersion of high viscosity products
Shorter processing times with improved product quality
Minimum processing capacity of 25% of the total container volume
Infinitely variable speed adjustment via a frequency converter
Automation possible in accordance with customer requirements
All metal components which come into contact with the product are made from AISI 316L / 316Ti stainless steel
Seals made from high quality materials

Blade type selecttion:

∑(sigma) blade		Most common blade;,optimum for kneading materials that require a large movement inside the kneading trough. It is mainly used in an overlapping arrangement, and is particularly superior for materials processed by flushing. Commonly used for printing inks, chocolate, carbon pitch, etc.
Masticator blade		Strongest blade available, making it the choice for kneading super high-viscosity materials and large loads that require a large power. It is mainly used in a tangential arrangement. Commonly used for rubber, iron oxide, magnetic coating agents, etc.
Z blade		Known also as the “simple blade,” this is the simplest shape available. It is best for kneading high-viscosity materials such as resins in which pigments have been dispersed.
Double-wing blade		Known also as the “fishtail blade,” it is suitable for kneading cellulose materials.

Specification

Specification of Laboratory Sigma Dispersion Rubber Kneader Machine

Type	Total capacity (L)	Working capacity (L)	Power of motor (KW)	Speed of blades (rpm.)	Size(mm)	Weight(Kg)	Heating methods	Vacuum degree(MPa)
NH(Z)-1	1	0.6	0.37-0.75	44/27	680360620	135	By steam or electric	-0.094
NH(Z)-2	2	1.2	0.55-1.1	44/27	760430990	180
NH(Z)-5	5	3	1.5	44/27	10205601000	190
NH(Z)-10	10	6	2.2	44/27	10805801050	240
NH(Z)-20	20	12	2.2-3	44/27	16806601380	560
NH(Z)-30	30	18	3-4	41/23	19208501450	610
