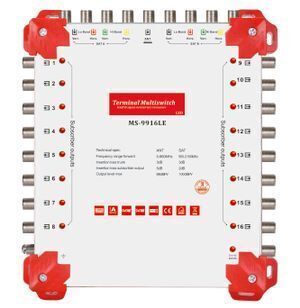

2150Hz 9 Inputs 16 Outputs DiSEqC 2.0 Satellite Cascade Multiswitch

Softel 16 Receiving Ports DiSEqC Satellite Multi Switch

Display of Satellite Switch

2 In Satellite Switch

3 In Satellite Switch

5 In Satellite Switch

9 In Satellite Switch

Features of Satellite Switch

-Top quality tinplate housing and exquisite plastic case shell attached, making installationconvenient. -Excellent quality component, professional amplification design and low loss. -An external 20V,700mA DC power offering more stable operation. -13/18V,0/22KHz supplied by satellite receiver through coaxial cable to switch correspondingport. -Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously. -Four SATV signals switched through 13/18V,0/22KHz. -Distributed into eight subscribers to use simultaneously and no mutual interference. -Applicable to multi-satellite and multi-receiver usage.

Specifications of Satellite Switch

Item Specification Item Specification Frequency Range ANT 5-860(MHz) Return Loss ANT Input 12(dB) Frequency Range SAT 950-2150 (MHz) Return Loss Outputs 8(dB) Insertion Loss ANT 0(dB) Output Level ANT 88(dBuV) Insertion Loss SAT 2(dB) Output Level SAT 100(dBuV) Isolation In-In SAT 25(dB) Normal Working Voltage 12-20 (V) Isolation In-In SAT/ANT 25(dB) DC Power Consumption 100(mA) Isolation Between Outputs 25(dB) Supply Voltage(VDC) 20V(±1)700mA Switching Isolation SAT Inputs 28(dB) Temperature Range -20℃-60℃ Return Loss SAT Inputs 10(dB) Impedance(all ports) 75(Ω)

1. What are the payment terms that you support?

Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?

When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

4. How can I place an order?

(1) Negotiation is agreed upon for the product price and specifications.

(2) The Proforma invoice will be sent for confirmation.

(3) After the agreement on the proforma invoice, the customer makes the deposit.

(4) Manufacturing will be started as soon as the payment is confirmed by our bank.

(5) Ship out the goods within the agreed delivery deadline.

5. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. How about the Warranty?

There are 12 months for the warranty.

While the warranty is not responsible for those broken by violence or updated with other brands.
