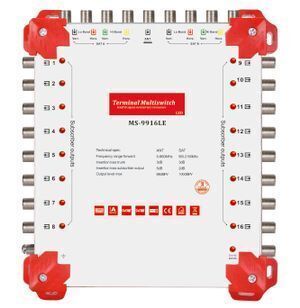

2150Hz 9 Inputs 16 Outputs DiSEqC 2.0 Satellite Cascade Multiswitch

Product details
Temperature Range:-20℃-60℃;Supply Ability:3000 Piece/Pieces per Month Satellite DiSEqC Switch;
SAT Insertion Loss:2-5dB;Place of Origin:Zhejiang China;
Certification:CE;SAT Frequency Range:950-2150MHz;
ANT Insertion Loss:3-5dB;Isolation In-In SAT:25dB;
ANT Frequency Range:5-860MHz;Brand Name:SOFTEL;
Packaging Detail:Packing of Satellite DiSEqC Switch: PE Foam in Carton Box(Standard Export Packing or Customized);Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Model Number:MS-9916LE;Port:Shanghai/Ningbo;
All Ports Impedance:75(Ω);Isolation In-In SAT/ANT:25dB;
Supply Voltage:DC 20V(±1)700mA-3000mA;
Product Description



Softel 16 Receiving Ports DiSEqC Satellite Multi Switch

Display of Satellite Switch
2 In Satellite Switch
3 In Satellite Switch

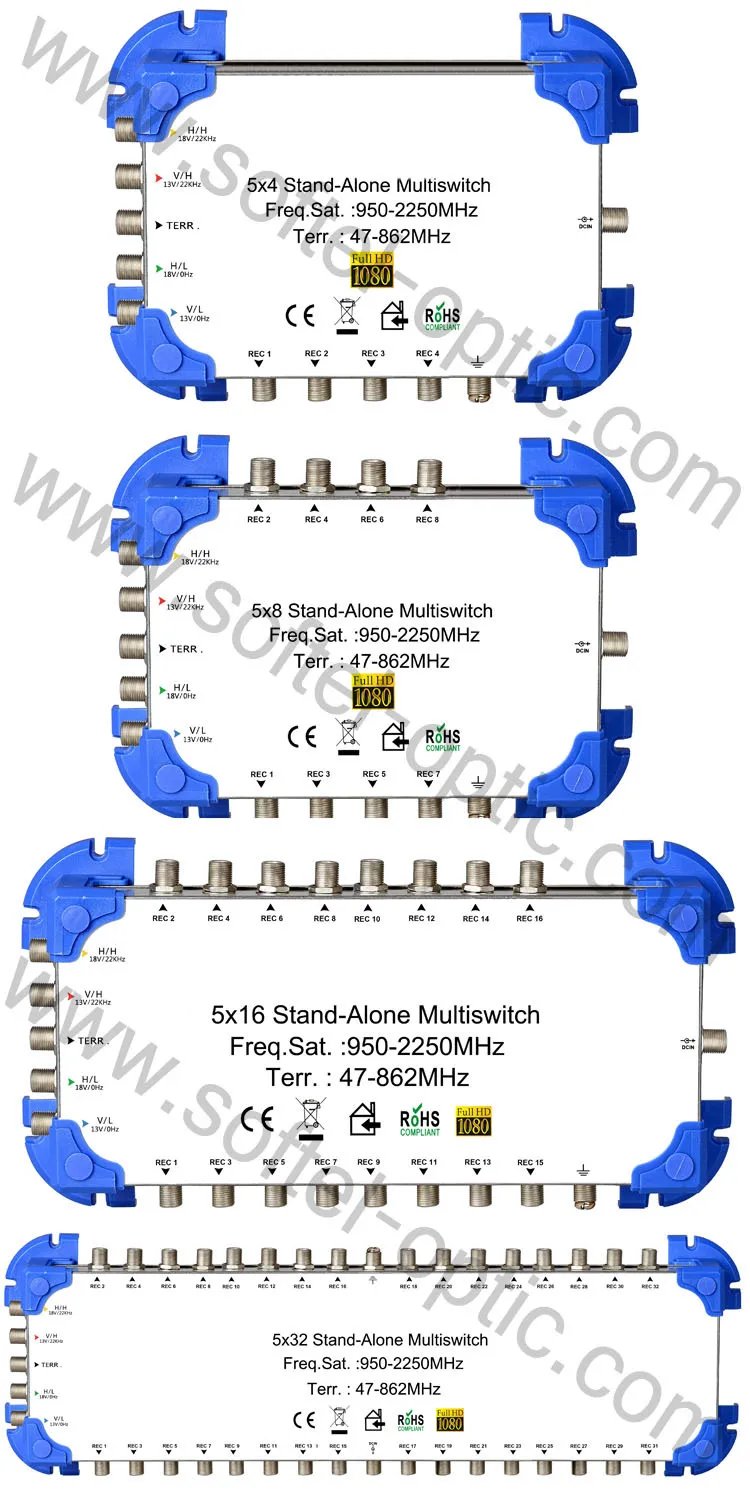

5 In Satellite Switch

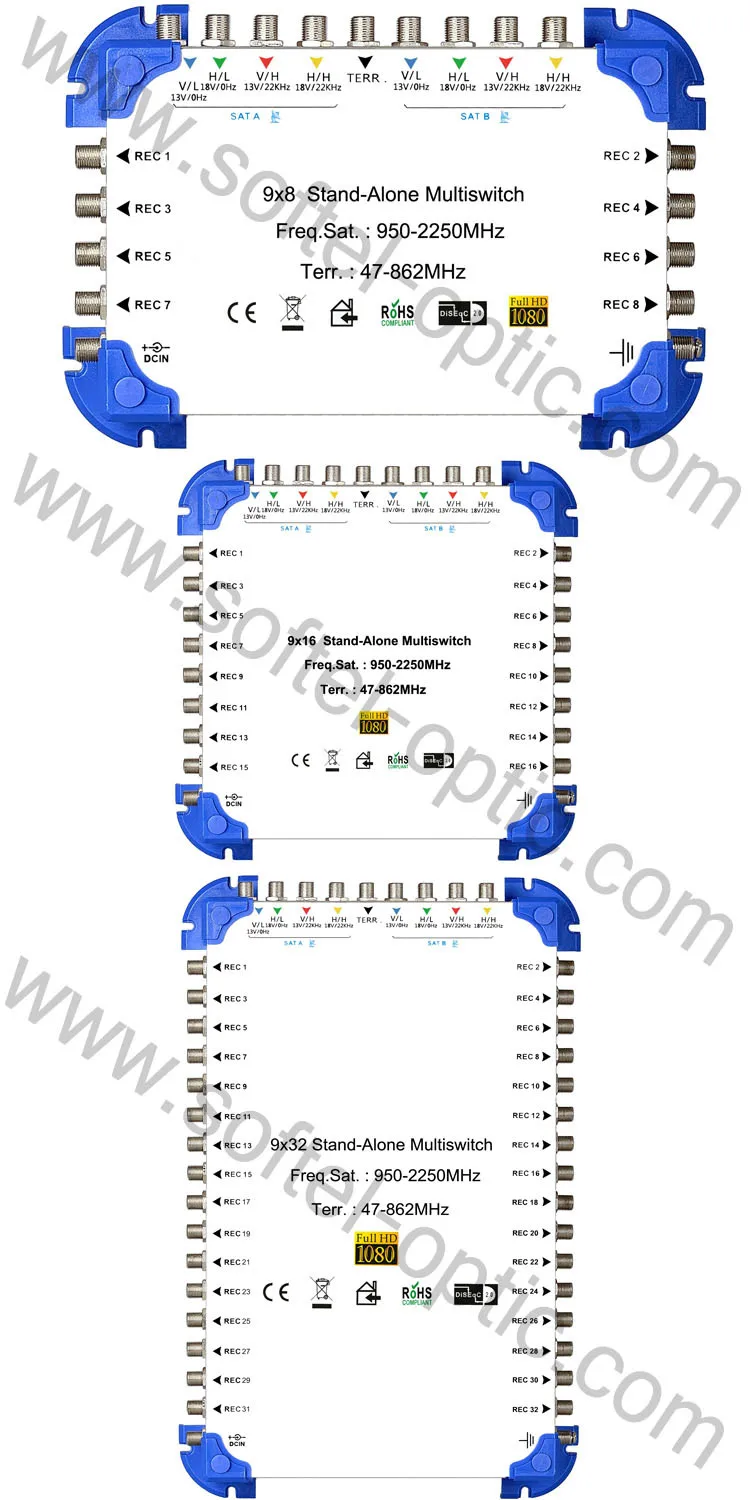

9 In Satellite Switch
Features of Satellite Switch

-Top quality tinplate housing and exquisite plastic case shell attached, making installationconvenient.

-Excellent quality component, professional amplification design and low loss.

-An external 20V,700mA DC power offering more stable operation.

-13/18V,0/22KHz supplied by satellite receiver through coaxial cable to switch correspondingport.

-Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously.

-Four SATV signals switched through 13/18V,0/22KHz.

-Distributed into eight subscribers to use simultaneously and no mutual interference.

-Applicable to multi-satellite and multi-receiver usage.

Specifications of Satellite Switch

Item

Specification

Item

Specification

Frequency Range ANT

5-860(MHz)

Return Loss ANT Input

12(dB)

Frequency Range SAT

950-2150 (MHz)

Return Loss Outputs

8(dB)

Insertion Loss ANT

0(dB)

Output Level ANT

88(dBuV)

Insertion Loss SAT

2(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20 (V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

100(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)700mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Return Loss SAT Inputs

10(dB)

Impedance(all ports)

75(Ω)
