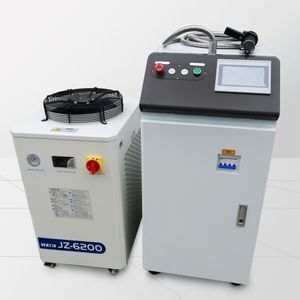

500w handheld fiber transmission laser welding machine for aluminum stainless steel in laser welders

Supplier: Wuhan Beisida Laser Co., Ltd.
Region: Hubei, China
Contact: Ms Cathrin Xu
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Compound Wooden cased which comply with export standard Package Size :15808301340mm Gross Weight :300W (300KG),500W (450KG);	Wavelength:	1064nm;
Guiderail Brand:	PMI;	After-sales Service Provided:	Online support;
Display:	ccd;	Pump Source:	imported ceramic cavity;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Home Use,Construction works ,Energy & Mining,Advertising Company;	Max. Output Power:	500w;
Controlling system:	Single-chip microprocessor;	Port:	Wuhan /Shanghai/Guangzhou for handheld laser welding machine;
Supply Ability:	800 Set/Sets per Year;	Working Table:	Marble1:350900mm (optional:Tempered glass:1200800mm);
Dimensions:	15808301340mm;	Payment Terms:	L/C,T/T,Western Union;
Focal Spot Diameter:	0.3mm-2.0mm;	Power:	500w;
Condition:	New;	Place of Origin:	Hubei China (Mainland);
Laser Output Power Focus Distance:	150-250mm,fiber :120mm;	Certification:	CE;
Brand Name:	Best Laser;	Welding depth:	0.1-2.5mm;
Machine power suply:	300w:220V±10%/50/60Hz,500w:380V±10%/50/60Hz;	Warranty:	1 Year;
Control System Brand:	FANUC;	Laser Head Brand:	Raytools;
Laser Source Brand:	RAYCUS;	Usage:	Auto Metal Welding;
Water Cooler:	S&A,CW6000,2P;	Keywords:	handheld laser welding machine;
Pulse Width:	0.5-20ms;	Single Pulse Energy:	90J/10ms;

Product Description

500w handheld fiber transmission laser welding machine for aluminum stainless steel in laser welders

(whatsapp:+8618140685791,Skype:bstlaser)

Model No.:BE-W300F/BE-W500F

Brief Introduction :
Best Laser self developed portable fiber transmission fiber laser welding machine adopt Japan imported technonology which largely change traditional welding method and improve working efficiency.
It's handheld welding head,easy to align welding joint for multidirectional moving. 5 meter long light output cable with large moving range. Can be connected to the robot to achieve six-axis three-link welding which suitable for large work piece welding, irregular work piece welding.

Handheld Fiber Letter Laser Welding Machine Main Features

1.The optical path of the hard-light laser welding machine is fixed. The laser energy is distributed according to Gauss in the spot,the center energy is the strongest, the spark is large when welding, no progressive function.

2.It is not suitable for high-demand spot welding, welding just started. Welding is unstable at

the beginning and requires pre-lighting.

3.Optical fiber transmission laser welding machine, the laser is transmitted to the welding head

through the optical fiber, which is a flexible connection. The laser energy is distributed in the shape of the hat in the spot, the energy distribution of the whole spot is even, the welding spot is smooth and beautiful, and it is suitable for the high demand spot Welding, spot welding stability is high.

4.Optical fiber transmission laser welding machine has a uniform beam quality, and laser energy can be transmitted only by one fiber.

5.The optical fiber transmission laser welding machine utilizes the structural separation of the

laser transmission and the structural separation of the laser to realize the energy splitting or the

time splitting.

Detailed Images

Handheld Laser Welding Gun with 5m fiber cable, can be customized based on your special requirement

Two kind of laser hand guns (optional )are available to support different welding needs,has

wider application.

Adopt Famous Brand Fiber

Transmission

Equipped with 5m transmission fiber
(Can be lengthened as needed)
Adopting Japanese Mitsubishi fiber tube,
the transmission is stable and the energy is more stable.

LCD Touch Screen Controller

Easy parameters adjustment ,you can keep
parameter and search directly when need

Controlling system

Industrial water chiller can cool the machine and make the machine work in good condition.

Operators can adjust the temperature parameters on the chiller panel.The water chiller comes with air-conditioner system.

(300w-1p,400w-2p)

Electrical Controlling System

Controlling board and cable connection are

integrated to avoid confusion.

Double-layer laser power supply,
more stable energy output and higher reliability.

Technical Data

Application for Handheld Fiber Laser Welding Machine

Widely used in mobile phone components, computer casings, lithium batteries, stainless steel

kitchen supplies, vacuum flasks, sensors, auto parts, mold parts, safes, distribution boxes,

medical equipment, glasses and clocks, jewelry, stainless steel, aluminum products , copper products, alloy materials, etc.

Welding Materials:
0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum (500w laser welder).The channel letter welding machine also called handheld laser welding machine,portable laser welding machine,advertising letter welding machine,laser welder for sale.

Packing & Delivery

Packaging
Size	15808301340mm
Weight	450kg
Packaging Details	We have 3 layers package. 1.Outside:we adopt wood craft case. 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof.

Company Introduction

As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Best Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.

To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!

FAQ&Contact

FAQ for Best Laser Auto Laser Welding Machine

1. What are the main functions of the laser welding machine?
Mainly for the welding of metal advertising words to replace the traditional argon arc and soldering.

2. What are the advantages of laser welding?
Laser welding has no requirements for technicians, it is quick to get started, there is no heat deformation after welding, and it can be used without polishing and grinding.

3. How many models are there for your laser welding machine?
At present, the welding machine is divided into three types according to the power:

300W and 500w .

There are two types of ordinary type and double optical path according to the function. The common type is mainly made of small characters. The double optical path is a 5m conductive fiber added to the ordinary type. Use a common optical path when welding small characters, and use a fiber laser welding head when welding large characters or ordinary types cannot achieved.

4. What are the consumables for laser welding machines?
The main consumables of the laser welding machine are laser xenon lamps, which have a service life of 8 million times. The calculation is about 5 hours per day, about 6-12 months. If you use less, replace it once every 1-2 years. We use the Xenon lamp of the best Anguang in China. Below 300W is a xenon lamp, and 400W or more is two xenon lamps.

5. Does the laser welding machine need a computer, and the requirements for the user are not high?
The laser welding machine does not need a computer when it is used. There is a control screen. On the top, three parameters are set. One is CUR current which is equivalent to laser power, the second is the Wid" pulse width" which is the time the laser stays on the material, and the third is the Fre "welding frequency", which is the welding speed. There is no high demand for personnel, and it can be used after simple training.

6. What are the materials that the laser welding machine can weld?
The laser welding machine is mainly designed for the advertising industry. The materials that can be welded mainly include stainless steel, iron sheet, galvanized sheet, copper plate, aluminum alloy plate and other metal materials. For customers who use more aluminum and copper materials, 400W and above lasers are recommended. Welding machine model.

Please contact Best Laser for more information. Your kind reply of following questions will help us to recommend the most suitable machine.

1.What's the welding materials (stainless steel,galvanized sheet,aluminum...)
2.To recommend suitable power,may we know max welding depth you demand ?
3. What's the application ? (advertisement, signage,mould,jewelery...)
