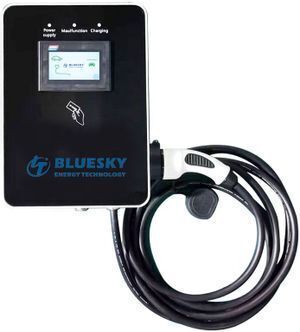

7kw AC EV Charger IEC62196-2 Type 2 connector CE approved floor-standing

Product details
Packaging Detail:WOODEN/CARTON;Application:EV;
Place of Origin:Zhejiang China;Certificate:CE;
Port:NINGBO;Material:Galvanized sheet;
Payment Terms:L/C,T/T;Model Number:BSEC-7K(A)1(CCS)400S;
Cable Length:3.5-5meters;Connector:IEC62196-2 Type 2;
Product name:7kw AC EV Charger;Warranty:12 Months;
Package Preview:;Input Voltage:220Vac+10%;
Color:Customized;Output Current:32A;
Brand Name:BLUESKY;Supply Ability:500.0 Piece/Pieces per Month;

Overview

BSEC series AC charger is the charging equipment specially developed by Wenzhou Bluesky Energy Technology Co., Ltd. for electric vehicles. This series of products have single phase and three phase type and are equipped with wall-mounted and floor-mounted installation modes. The product has integrated charging interface, HMI, communication, billing system together aims to achieve a higher safety, stronger adaptability and more convenient operation. With waterproof, dustproof, anti-corrosion functions. Streamline design adopted in the charger appearance makes users feel more comfortable. Bluesky AC charger could be applied in large parking lots, residential areas, shopping malls, hospitals, parks and scenic spots, etc.





Key Features
1. Strict Control Pilot

Charging pile could fit well with all European/Japanese/National standard EVs with its perfect compatibility. Precise control of power supply and cut off to avoid safety incident.
2.Robust Protection
The charging pile has been equipped with robust protection functions of overload, surge, overvoltage, undervoltage, short circuit, earthing, overheat, lightening, emergency stop, etc to avoid damages by accident caused by abnormal weather or grid.
4. Appearance with Perfect Sealing
Appearance design adopts zinc-plated board + multi-layer spraying process to achieve excellent sealing, which can resist the rainstorm effectively. The multi-layer spraying technology could prevent rust from causing damage to the product. Anti-ultraviolet treatment adopted in the coating process aims to restrain the cabinet from aging, which has ensured longer life cycle of the product.


Technical Parameters:

7KW AC EV Charger with Single gun

Structure appearance

Shell Material

Galvanized sheet

Size

283*115*400/283*115*1270

Installation Method

Wall-mounted /Floor- mounted

Route way

Under the line,under the qualifying

Charging interface

1 piece (Type 1,Type 2 or GB/T)

Cable length

3.5~5 meters

Enviromental indicator

Applicable Scene

Indoor/Outdoor

Operation temperature

-35ºC~+60ºC (-20ºC~+35ºC,heating required)

Storage temperature

-40ºC~+70ºC

Operating humidity

≤95% non-comdensing

Altitude

Up to 2000m

Degree of protection

IP55,IK10

Cooling method

Strong exhaust air cooling

Acoustic noise

<55dB

Electrical indicators

Input voltage

230Vac ± 10%

Output voltage

AC 220V

Steady flow accuracy

≤ ± 0.5%

Number of Plugs

One gun

Rated power

7KW

Average current imbalance

≤ ± 0.3

Features

Safety indicator

Short circuit,over voltage,over current,leakage,over temperature,lighting protection.Ground insulation monitoring.

Protective measures

Moisture,moid,saly spray,dust,

water,sun,wind,anti-theft and so on

Fractional fees

Peak sub-billing and charging service chargers,consumer transparency

Human-computer interaction

LED indicator+4.3 inch touch screen

Payment method

RFID card payment

Communication Protocol

OCPP1.6(With or without is optional)

Communication Interface

Etherbet (default), Infrared Remote Command,Wireless Remote Command,Wifi,3G and 4G are optional

Other

Single shot uniform charge,

double nozzle quick charge

Emergency stop button,remote upgrade, background monitoring


How to Use

A. How to start charging

1. Make sure the charger is well connected with the power.

2. Use EV charging cable to connect the charger with the EV.

3. Press the button on the charger to start



B. How to stop charging

1. The charger will stop automatically when the charging is finished.

2. Disconnect the EV cable from the the EV .

3. You can stop charging by pressing the button in case of an emergency.



Application

Bluesky charging piles have been applied in more than 10 cities in China. The specially developed European Standard Charging Pile has passed strict test procedure of TUV SUD and been awarded with CE and TUV certificates. Bluesky products have been exported to more than 10 countries and regions such as England, Russia, India, Bhutan, Serbia, Romania, France, Jordan, etc.



Good to Know
-This EV charger is special for home use. It doesn't have the billing function.
-This charger have auxiliary support and charging connector, which could be used directly with the EV.
-This charger has precise internal structure. Please do not take it apart without any professional technical support. Any questions, please contact our Customer Service Manager at the first time.
-This charger is only for EV charging. Please don't use it in any other occasions.

About Bluesky
Bluesky Energy is a national high-tech enterprise specialized in R&D, production and marketing of smart charging piles, key components and the integration of energy storage systems. The company is located in No.460 Jinhai 1st Road, Binhai Etdz, Wenzhou, Zhejiang, China, which covers an area of 50000 square meters. With over 170 professional worker, 30 after-sales technician and R&D engineer, Bluesky are on the postion to offer any customized design and turu-key projiect according to different products and different areas, bluesky can offer complete solution from design, R&D, manufacturing, shipping, installation, commissioning, training and maintenance service.



We are always committed to controlling products quality from the source, striving to provide customers with high-quality products, and truly realizing charging freely.

Customers First and Dedication is what bluesky standing for.

We believe in that diligent service is the soul of an outstanding company. No matter if you are our regular customers or new customers who just find us in the first time, any questions of you will be replied within the shortest time. And we have conscientious after-sale services, any problems of products will be followed up responsibly by our professionals until be solved perfectly.

We would like to show our honesty, top quality, competitive prices and high efficiency to establish business relationships with you. Our goal is to provide not only products, but also a complete solution including product design, tooling, fabrication and service to our customers to achieve their upmost satisfaction.



Exhibition Information

Certificate

Packageing&Shipping

Standard Wooden and Carton Box Package.

Mode of transportation: sea, air, railway, DHL, EMS, etc.

(depending on the size and weight of the product)

FAQ

Q1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. How about your delivery time?
A: Our production time is about 35 days, from receipt to advance payment. We ship immediately after receiving the final payment.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q4.Can you use my logo and brand?

Yes, We can provide OEM service. we can produce by your technical drawings.

Q5: Do you have a factory?

Yes,We do.Welcome to our factory to visit. We can also video chat to show our factory.

Q6: Can it be customized?

Yes, products can be configured according to customer needs. With or without screen, with OCPP or without OCPP, supporting gun line or without configuration, etc.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
