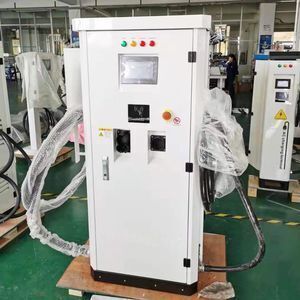

EV Charger 120kw GB/T DC double plugs for Car Charging Station

Supplier: Wenzhou Bluesky Energy Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tim Zheng
Price: $7800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	WOODEN CASE;	Network connection:	Ethernet(default), 3G and 4G are optional;
Number of Outputs:	2 Plugs;	Place of Origin:	China;
Input Voltage Range:	3 Phase, 400Vac±10%;	Wire Length:	3.5-5m;
Supply Ability:	500.0 Set/Sets per Month;	Port:	NINGBO;
Payment Terms:	L/C,T/T;	OCPP:	OCPP1.6;
Color:	Customized Color;

Product detaiils:

Main feature:

Charging module:
1.Using active power factor compensation technology, rated power factor value of 0.99.
2.With comprehensive soft-switching technology, the rated efficiency is up to 94%.
3.Ultra-low radiation. Advanced electromagnetic compatibility design.
4.The safety specification design complies with UL, CE, NEBS standards.
5.High power density.
6.With output overvoltage hardware protection and output overvoltage software
7.Protection. There are two options for software overvoltage protection: one overvoltage lockout mode and two overvoltage lockout modes.

System:
1.The AC input voltage has a normal operating range of 260Vac to 530Vac.
2.Perfect battery management. With battery low voltage protection, it can realize temperature compensation, automatic voltage regulation, stepless current limiting and other functions.
3.Convenient and simple operation interface, fast maintenance interface
4.Perfect AC side lightning protection design.
5.Complete fault protection and fault alarm function.
6.The system has an insulation fault ground alarm function.
7.Conforms to GBT18487.1-2015, GBT20234.1/2/3-2015, GBT27930-2015

Applications:
This product integrates charger, charging interface, human-computer interaction interface,
communication, billing, etc., for the rapid charging of electric vehicles. Its use of small area,
fast charging time and other characteristics,generally used in various large charging stations,
shopping malls, office buildings and other "instant charge" places.

Technical Parameters

Structure appearance	Shell material	Galvanized sheet	Electrical indicators	Input voltage	380Vac±15%
	Shell material	Galvanized sheet		Output voltage	DC150-750V

	Size	6501600800(Wide * high * thick)		Steady flow accuracy	≤±0.5%
	Installation method	Floor-mounted installation		Rated power	60KW*2
	Route way	Under the line, under the qualifying		Current imbalance	≤±3.0%
	Charging interface	2 piece GB/T 20234.2
	Cable length	5m
				Input Current	0~368A
				Output Current	0~268A
				Steady flow accuracy	≤±1.0%
				Effectiveness	≥94%
				Current harmonics	≤4%
Environmental indicators	Applicable scene	Indoor / outdoor	Features	Safety indicators	Short circuit, over voltage, over current, leakage, over temperature,lightning protection.Ground insulation monitoring
	Operating temperature	-20ºC~+50ºC		Protective measures	Moisture, mold, salt spray, dust, water, sun, wind, anti-theft and so on
	Storage temperature	-40ºC~+70ºC		Fractional fees	Peak sub-billing and charging service charges, consumer transparency
	Operating temperature	5~95%		Functional indicators	Human-computer interaction: LED indicator + touch screen
	Operating temperature	5~95%			Payment method: credit card payment
	Altitude	<2000m			Communication Interface:Etherbet/RS485
	Degree of protection	IP54			Single shot uniform charge, double nozzle quick charge
	Cooling method	Strong exhaust air cooling			Other: Emergency stop button, remote upgrade, background monitoring
