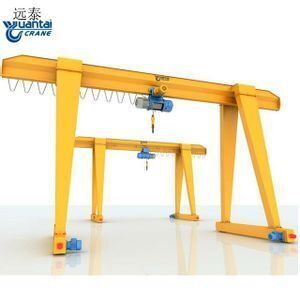

design calculation hoist price China monorail 10 ton 15 ton 16 ton single beam girder gantry crane

Supplier: Henan Yuantai Crane Machinery Import & Export Co., Ltd.
Region: Henan, China
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. Lifting Height:	35m;	Application:	Workshop outdoor widely used;
Port:	Shanghai tianjin qingdao;	After Warranty Service:	Field maintenance and repair service;
Lifting Speed:	Single,double, designed;	Rated Loading Capacity:	10t;
Working Class:	A3-A8;	Place of Origin:	Henan, China;
Control Method:	Remote,cabin or pendent control;	Supply Ability:	3000 Set/Sets per Year;
Power Source:	3 Phase 380V 50hz or on request;	Safety Devices:	Included;
Warranty:	1 YEAR;	Showroom Location:	none;
After-sales Service Provided:	Field installation, commissioning and training;	Condition:	New;
Brand Name:	Yuantai Crane;	Main Electrical Parts:	Schneider,Chint and Siemens,etc;
Product Name:	Single girder 10 ton gantry crane price;	Lifting Mechanism:	Eliectric Hoist/Winch Trolley;
Packaging Detail:	Electric hoist,electricals and other parts are packed by high quality plywood crates, Main beam packed by plastic film and plastic woven cloth.;	Local Service Location:	SAUDI ARABIA,Mexico,Australia,algeria;
Payment Terms:	L/C,T/T,Western Union;	Applicable Industries:	Construction works ;
Rated Lifting Moment:	Designed;	Feature:	Gantry Crane;
Span:	10m-35m;	Certification:	CE ISO SGS;

design calculation hoist price China monorail 10 ton 15 ton 16 ton single beam girder gantry crane

General introduction

General introduction of the single girder gantry crane

There are many types of gantry crane, here MH type single girder gnatry crane will be introduced.

Gantry crane picture with blue signs of main parameters

(Please leave your email and wechat or whatsapp, skype when you send an inquiry)

Gantry crane main structure and characters

Gantry crane mainly consisted of steel gantry structure, lifting mechanism(electric hoist/winch trolley ), crane traveling mechanism, electric equipments and other accessories.

Gantry crane normally working outside, crane and electric traveling and lifting mechanism should equipped with rainproof cover.

Parameters	single girder gantry
Lifting Capacity	3t-25t
Lifting Height	5m-30m
Span	5m-30m
Cantilever Length	0-1/3 span
Control Methord	Remote control, pendent, cabin
Speed	Designed
Other Components	Motor, Reducer, Wheel, Rail sweeper, Rail clamp, Brake, etc.
Ambient Temperature	-25℃~+40℃
Electric Protection Systems	Short circuit protection, Voltage-loss protection, Emergency power switch, Overload limiter, Position limiter, Zero position and interlock protection, Three-phase fault & voltage fault protection, Ground protection, etc.
What type of gantry crane do you need? Please feel free to send a inquiry to us and get what you what. >>>Send and inquiry

Single girder gantry frame

Mainly composed of main girder, ground beam, landing legs, outrigger, ladders, platforms, driver's room, etc.

Single girder gantry design drawing

Gantry crane spare parts

Production Flow

Yuantai gantry crane technological progress

Packaging & Shipping

Yuantai gantry crane packing and shipping

Company Information

Company Introduction

Dongqi Group is a Sino-foreign joint venture. The Group consists of subsidiaries: Henan Dongqi Machinery Co., Ltd. (manufacturing), Henan Yuantai Crane Machinery Import&Export Co., Ltd. (Foreign Trade).

Henan Dongqi Machinery Co., Ltd., with an area of 240,000m2, gross investment of RMB 240 million yuan and registered capital of RMB 108 million yuan, has more than 3,600 employees, of which the number of managerual and technical personnel is 500, and of senior engineer is more than 70. It has more than 2,000sets of production and detection equipment and boasts an annual comprehensive production capacity of cranes up to 10,000-odd sets, with the output value reaching RMB 1.5 billion yuan. Having technical cooperation with many European-style famous machinery manufacturers like Britain SZW, German NORD, German SIMENS and French Schneider Electric, the company is committed itself to the innovation and development of European-style crane technology and strive to make Dongqi Group a domestic and international famous brand.

Henan Yuantai Crane Machinery Import&Export Co., Ltd consists of sales, e-commerce, service department, engage the Group's foreign trade. There are more than 300 emploees in our company, 200 salesmen and 50 persons in the service department. Our customers distribute throughout the southeast Asia, Russia, east europe, the Middle east, Africa and other areas, the products are welcomed by all customers.

The company mainly manufactures such products: various European-style Bridge, gantry cranes, European-style electric block, etc. Some key core components are original Britain SZW product. The structures are manufactured by strictly following European-style technology standards, so that the overall performance reaches advanced world level. The products are widely applicable to multiple fields such as steel, electric power, petrochemical industry, machine building, war industry, warehouse logistics and papermaking. We will offer you the best designs and provide high-standard tailor-made European-style cranes with highly-efficient technology and economic index.

Exhibition & Visit

Certifications

We have past CE, ISO, and so on.

NOTICE:

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us supply the rails? How long is it?

5. Power supply: Voltage.

6. Working condition: which material to lift? temprature?
