Best quality 10 20 tons electric hoist double girder overhead crane for sale

Supplier: Henan Yuantai Crane Machinery Import & Export Co., Ltd.
Region: Henan, China
Price: $3000.00 / 1 - 4 sets
$2900.00 / 5 - 9 sets
$2800.00 / 10 - 19 sets
$2600.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Working voltage:	3 Phase 380V 50Hz, or on request;	After Warranty Service:	Video technical support;
Operation mode:	Ground control or cabin control,Wireless Remote;	Power supply mode:	Slide wire or soft cable;
Showroom Location:	None;	Supply Ability:	3000 Sets per Year;
Rated Lifting Moment:	Designed;	Lifting/traveling speed:	Single/double speed or on request;
Working duty:	A4-A7;	Condition:	New;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Main electrical parts:	Schneider brand, or on request;
Warranty:	6 months;	Max. Lifting Load:	50 ton;
Max. Lifting Height:	35 m;	Electric protection:	IP54,IP55;
Applicable Industries:	Construction works ;	Port:	shanghai qingdao tianjin or others;
Feature:	Bridge Crane;	Brand Name:	Yuantai;
Machinery Test Report:	Provided;	Payment Terms:	L/C,Western Union,T/T,MoneyGram;
Video outgoing-inspection:	Provided;	Color:	On request;
Marketing Type:	Ordinary Product;	Warranty of core components:	6 months;
Weight (KG):	300 kg;	Span:	5-31.5 m;
Place of Origin:	Henan, China;	Material:	Q235/Q345 steel plate,onrequest;
Packaging Detail:	1.Electrical parts are packed by strong plywood box, to prevent the rain soaked. 2.Main portal frame and others are packed in plastic woven cloth, to prevent corrosion in seawater.;

China new double girder 5 ton electric hoist trolley overhead crane for sale

1. Electric hoist trolley overhead crane Introduction

Double girder overhead crane is a kind of lifting equipment which is used in workshop, warehouse and yard to lift materials. One type is electric hoist trolley overhead crane.

They are available in various configurations and feature the versatility required for additional requirements. For example, higher crane travel speeds, maintenance walkways, trolleys with service platforms are all features which can easily be implemented.

Lifting capacity:5-50ton

Crane span : 5-31.5m

Lifting height : 5-35m

Working grade : A4-A7

2. Electric hoist trolley overhead crane Description

Technical parameters of QB type explosion-proof double girder overhead crane:

Type	Double girder overhead crane with hoist trolley
Lifting capacity	5 ton –50 ton
Lifting height	5m – 35m
Span	5m-31.5m
Power supply	380V 50Hz 3Phase or on request
Working class	A3-A7
Speed	Variable Speed (standard)
Eletric devices	Crane traveling limit switch Weight overload protection device Lifting height limit device Voltage lower protection function Phase sequence protection function, etc.

3. Overhead Crane Details

QD type double girder overhead crane mainly composed of metal structure(main girder, end truck), electric hoist trolley or winch trolley(lifting mechanism), traveling mechanism and electrical equipments.

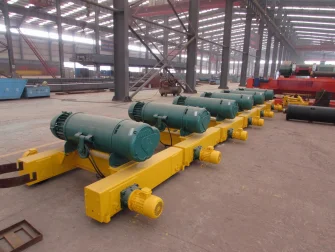

4. Production Technology

5. Packing & Delivery

6. Different Types of Overhead Crane

	LH double girder hoist trolley overhead crane Loading capacity:3 ~ 50t Lifting height:Customized Span: 7.5 ~ 31.5m Power supply:220 ~ 440V,50/60Hz,3 phase Working class:A3 ~ A4 Working temperature:-25^°c~ +40°c More details>>> Get Quotation
	QD double girder hook overhead crane Loading capacity:5 ~ 550t Lifting height: Customized Span:10.5 ~ 31.5m Power supply: 220~440V,50/60Hz,3 phase Working class:A4 ~ A7 Working temperature: -25^°c~ +40°c ^{More details>>>} Get Quotation
	QC double girder electromagnetic overhead crane Loading capacity:5 ~ 32t Lifting height: Customized Span: 10.5 ~ 31.5m Power supply: 220~440V,50/60Hz,3 phase Working class: A6 ~ A7 Working temperature: -25^°c~ +40°c ^{More details>>>} Get Quotation
	QZ double girder grab overhead crane Loading capacity: 5 ~ 50t Lifting height: Customized Span: 10.5 ~ 31.5m Power supply: 220~440V,50/60Hz,3 phase Working class: A6 ~ A7 Working temperature: -25^°c~ +40°c ^{More details>>>} Get Quotation
	YZ double girder casting overhead crane Loading capacity:75 ~ 320t Lifting height: Customized Span:15 ~ 38m Power supply: 220~440V,50/60Hz,3 phase Working class:A7 ~ A8 Working temperature: -25^°c~ +60°c ^{More details>>>} Get Quotation
	NLH double girder european overhead crane Loading capacity:5 ~ 50t Lifting height: Customized Span: 10.5 ~ 31.5m Power supply: 220~440V,50/60Hz,3 phase Working class: A5 ~ A6 Working temperature: -25^°c~ +40°c ^{More details>>>} Get Quotation

7. Certificates

8. Exhibition & Visit

9. Company information

Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand.

10. FAQ

1.Is your products cuztomized?

Yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.

2.The space of my workshop is limited, can the crane ok for me?

Yes. For low headroom workshop, we have special products. The details demension our engineer will be design for you.

3.Do your side can provide lifting tools?

Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...

NOTICE:

In order to offer you most suitable design and best solution, please confirm following information when you send an inquiry.

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us supply the rails? How long is it?

5. Power supply: Voltage.

6. Working condition: which material to lift? temprature? Other requirements?
