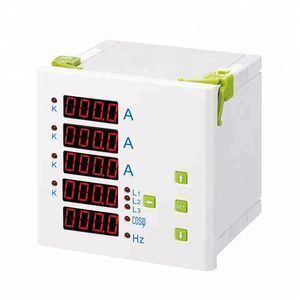

hot sell multifunction digital panel meter voltmeter AC DC Ammeter frequency meter

Supplier: Shanghai Gasim Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Simon Wu
Price: $3.00 / >=200 pieces
Min. Order: 200 pieces

Click here to contact

Product details

Standard specifications:	IEC60051-2 panel meter;	Brand Name:	GASIM;
Endurance:	AC 45-65Hz 2KV 1 min;	Payment Terms:	L/C,T/T;
Model Number:	Panel Meter HZ96 HZ72;	Operating Temperature:	-30℃~55℃;
Ambient temperature:	23°c±10°c panel meter;	Relative humidity:	25% and 80%;
Display Type:	Analog Only;	Place of Origin:	Shanghai China;
Accuracy Class:	2.0;	Supply Ability:	100000 Piece/Pieces per Month meter;
Measuring Energy Range:	AC 45-65Hz 2KV 1min;	External magnetic field:	0.4KA/m panel meter;
Phase:	SINGLE PHASE;	Installation position:	vertical±10°c panel meter;
Name:	panel meter voltmeter ammeter frequency meter;	Port:	Shanghai;
Accuracy:	class 1.0,1.5,2.5;	Output Voltage:	220V;
Packaging Detail:	export packing for meter;	Website:	www.gasim.com.cn;
Dimensions:	8080,6060,60*70 and so on;	Transport temperature:	-30°c~55°c;

Product Description

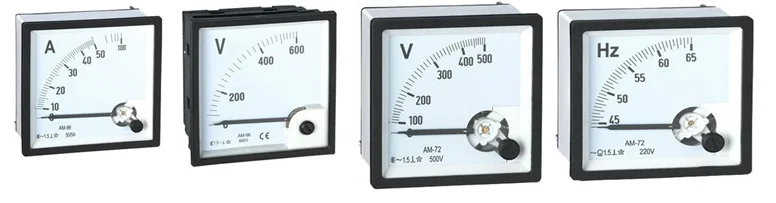

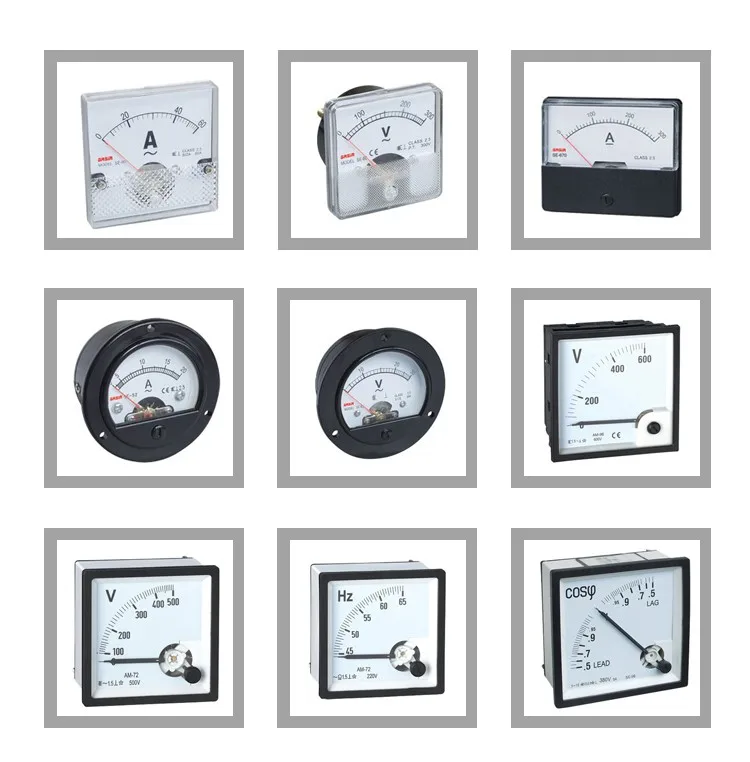

panel meter ac dc voltmeter ammeter frequency meter

Uses and applications,

This series of meters is a direct imitation of power measurement display instruments, measuring DC current and voltage, AC current and voltage, frequency, power factor, phase sequence, power, synchronization instructions and other non-power measurements. It has been widely used in a variety of AC and DC transmission and distribution systems, power control panels and other electrical devices, in the industries of maritime shipping, rail transport, chemical flameproof, low voltage equipment, construction equipment, generators, machinery equipment, etc. Being able to make electrical measurement and non-power measurement, it is a high-end instrument applied in general environmental conditions.

Changes caused by the temperature,

Temperature range for reference: 23°C±2°C, 13°C~23°C, and 23°C~33°C. The changes caused by the impact of temperature are not allowed to be out of the range of the level index ±100%.

The installation,

Unless specified, the meter is usually installed in a vertical position. Other installation positions such as horizontal and inclined position can be installed according to the customer’s requirements. The corresponding level of accuracy is only valid to the regulated installation position. The meter has two kinds of instruction angles: right angle 90°and wide angle 250°.

Anti-vibration and anti-shock,

Anti-vibration,complies with the standard of IEC60068-2-6. frequency sweep range,10-55-10Hz. displacement amplitude, ±0.15mm, ±0.3mm. frequency sweep cycles,5 times.sweep rate, 10ct/min. maximum acceleration, 147m/s2(15g), 490m/s2(50g). RMS acceleration, 6.06g. vibration time,15 min. Anti mechanical shock,complies with the standard of IEC60068-2-27.

Packaging & Shipping

standard export packing for meter

Our Services

(1)Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.

(2)Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most

(3)Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China.
