API Spec 11E Surface beam belt Pumping Unit

Supplier: Goldenman Petroleum Equipment Co., Limited
Region: Shandong, China
Contact: Mr Shine Lee
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New,New;	After-sales Service Provided:	Overseas service center available;
Port:	Any chinese port;	Dimension(LWH):	Irregular;
Packaging Detail:	According to customer's request for API Spec 11E Surface beam belt Pumping Unit;	Warranty:	1 Year;
Production Capacity:	100%;	Voltage:	Voltage;
Weight:	Weight;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
paint:	standard;	Place of Origin:	Shandong China;
Model Number:	API;	Certification:	API;
Power(W):	Electric;	Brand Name:	GM;
Features:	API 11E Spe;	Supply Ability:	100 Piece/Pieces per Month API Spec 11E Surface beam belt Pumping Unit;
Product name:	API Spec 11E Surface beam belt Pumping Unit;

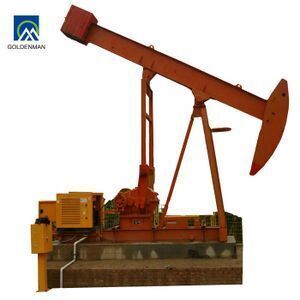

API Spec 11E Surface beam belt Pumping Unit

Product Description

Surface Pumping Units (Beam Pumping Units) are the most common equipment of artificial lift in oilfield. Pumping Units are usually installed for oil production after oil well completion
Conventional API pumping units with walking beams, balanced by cranks, are most widely used power units in rod production in oil fields. The pumping units designed and manufactured comply with API Spec 11E and other related standards. The pumping units are easy for operation and maintenance
Conventional API pumping units has been provided to Oman, USA, Canada, Columbia and many other countries and earned a high reputation

Srl No.	Size	Maximum Rating Hanging Loading (lb)	Length of Strike (in)	Reducer Rating Torque (in.lbs)
1	912D-305-192	30,500	192,165,138	912,000
2	912D-365-168	36,500	168,144,121	912,000
3	912D-305-168	30,500	168,144,121	912,000
4	640D-305-192	30,500	192,165,138	640,000
5	640D-305-168	30,500	168,144,121	640,000
6	640D-365-144	36,500	144,123,102	640,000
7	640D-305-144	30,500	144,123,102	640,000
8	640D-256-144	25,600	144,123,102	640,000
9	640D-305-120	30,500	120,102,84	640,000
10	456D-305-144	30,500	144,123,102	456,000
11	456D-256-144	25,600	144,123,102	456,000
12	456D-365-120	36,500	120,102,84	456,000
13	456D-305-120	30,500	120,102,84	456,000
14	456D-256-120	25,600	120,102,84	456,000
15	320D-256-144	25,600	144,123,102	320,000
16	320D-256-120	25,600	120,102,84	320,000
17	320D-213-120	21,300	120,102,84	320,000
18	320D-305-100	30,500	100,85,70	320,000
19	320D-256-100	25,600	100,85,70	320,000
20	228D-213-120	21,300	120,102,84	228,000
21	228D-173-100	17,300	100,86,72	228,000
22	228D-246-86	24,600	86,71,56	228,000
23	228D-213-86	21,300	86,71,56	228,000
24	160D-173-86	17,300	86,74,62	160,000
25	160D-200-74	20,000	74,64,54	160,000
26	160D-173-74	17,300	74,64,54	160,000
27	160D-143-74	14,300	74,64,54	160,000
28	160D-173-64	17,300	64,54,44	160,000
29	114D-119-86	11,900	86,72,59	114,000
30	114D-143-74	14,300	74,62,51	114,000
31	114D-173-64	17,300	64,54,44	114,000
32	114D-143-64	14,300	64,52,40	114,000
33	114D-133-54	13,300	54,45,36	114,000
34	80D-119-64	11,900	64,53,42	80,000
35	80D-133-54	13,300	54,45,36	80,000
36	80D-119-54	11,900	54,45,36	80,000
37	80D-133-48	13,300	48,40,32	80,000
38	80D-109-48	10,900	48,37,25	80,000

Our Services

1. Pumping unit strictly according to API ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
