Continuous PU Sandwich Panel Production Line for Roof and Wall Panels

Product details
Speed:2-6m/min;Local Service Location:none;
Applicable Industries:Manufacturing Plant;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Machine dimension:approx 60mX4m;Toal weight:46 tons;
Packaging Detail:seaworthy nude packing, using steel wire and wood bock to fix the machine inside container, and using the film cover the machine for dustproof;Main power:>45KW;
Condition:New;Foaming and curing:double rubber belt;
After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas;Showroom Location:none;
Panel width:1000mm;Port:Shanghai port;
Cutter:computerized saw cutter;PLC:Panasonic or Mitsubis;
Place of Origin:Jiangsu China;Warranty:1 YEAR;
PU thickness:30-200mm;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Supply Ability:10 Set/Sets per Quarter PU sandwich panel production line;Brand Name:HS;
Product Description



PU Sandwich Panel Production Line

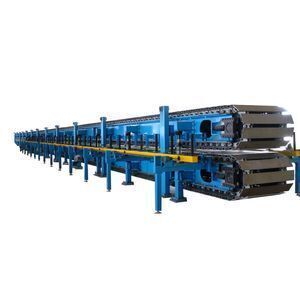

Continuous PU sandwich panel production line



Our company offers professional PU sandwich panel production line. Our PU sandwich panel is characterized by uninflammability, moistureproof capacity, insect-resistance, sound insulation, and light weight. Besides, it is never out of shape whether in dry or wet conditions. It has good heat preservation capacity. This machine can be nailed as well as sawn, which makes construction easy and convenient. This PU sandwich panel can be repeatedly used.
This equipment is widely used for steel structure workshop, roofs of simple and easy movable houses, wall body, suspended ceilings of air purification room, and separation.  The rigid polyurethane foam has been recognized as the best building thermal insulation material by international world today. It has low heat conductivity, and high bending resistance capacity. This rigid polyurethane foam doesn’t absorb water or decay, and it cannot be damaged by insects and mice. It has good fire resistance, and large scope of heat resistance. With the physical properties of polyurethane PU and our unique prescription, we combine high temperature polyurethane with coating steel panel, thus compact forming is achieved.

Then rigid colored steel and soft chemical raw materials are combined to cooperate with polyurethane PU foaming forming machine.
The PU panel forming machine mainly includes decoiler, feeding machine, film-covering installation machine, roll forming machine, PU foaming machine & injecting machine PU, laminator, automatic tracking cutter, and PLC control cabinet, etc.



Machine Compositions:

SerialComponetQty
1Decoiler2 sets
2 Panel Roll Forming Machine2 sets
3 PU Foaming & Injecting Machine1 set
4 Belt Conveyer1 set
5 Automatic Tracking Cutter1 set
6 Product Table1 set
7 Control Cabinet1 set





Main Specifications:

1.  General

+
a     Thickness30-200mm
bPU foam density 40±5 kg/m³ ( or depend on requrement )
cPanel width 1000mm ( or denpend on customer's requirement )
dThickness of steel 0.4mm~0.8mm
eSurface material GI/PPGI panel, Aluminum foil or PVC



2. Speed of working is 0-8m/min. Continuous running, with roll forming, PU injecting, PU solidifying, cutting



3. High quality PU foaming and injecting machine, China famous brand. Or bought by BUYER



4. Rubber belt conveyer 24 meter length, economical configuration for sandwich panel production. Production quality can be well ensured

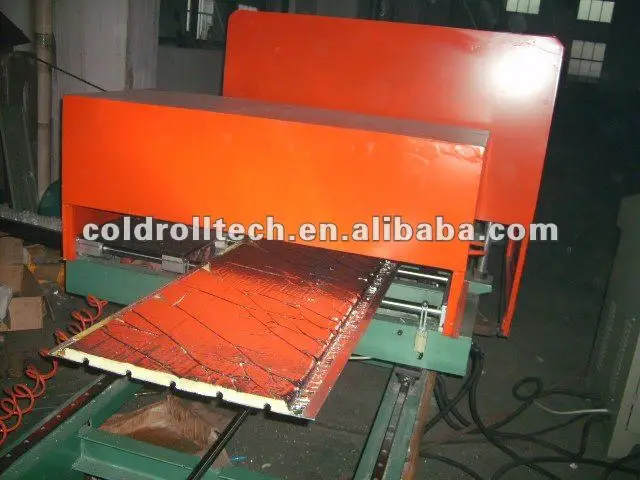

5. Bend saw cutter : Maximum thickness is 200mm. The suction channel is reserved for additional suction system to prevent the dust pollution.



6. PLC VF controlling for the whole line. Production length and number can be set on the system. International famous brand electric products.





Reference Work Flow:

Decoiling -- roll forming -- PU injecting -- Belt conveyer -- Fly cutting -- product run out





Application:

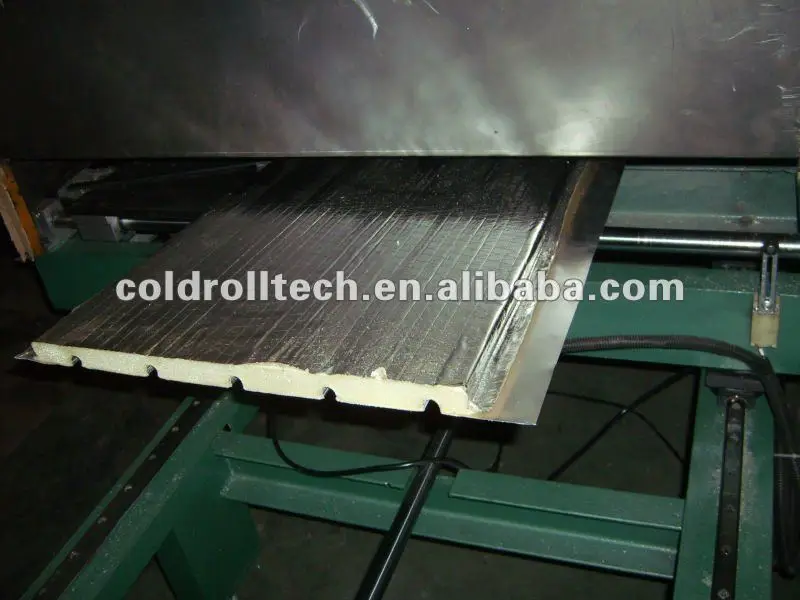

Roof Wall PU Sandwich Panel, Insulated Sandwich Panel, Prefabricated House, Prefab House, Mobile House, Cool Room, Air conditioner pipe, etc







Packaging & Shipping

Seaworthy nude packing, using steel wire and wood bock to fix the machine inside container, and using the film cover the machine for dustproof
