Engraver with High Precise Wood Cutter 40W CO2 USB Laser Engraving Cutting Machine

Supplier: Shanghai Sihao Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Mr Marketing VEVOR
Price: $280.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Cooling Mode:	WATER COOLING;	After Warranty Service:	Online support;
Single gross weight:	28.1 KG;	Condition:	New;
Certification:	ce,ISO;	Place of Origin:	Shandong China;
Warranty:	2 years;	Brand Name:	sihao;
Laser Type:	CO2;	Applicable Industries:	Laser engraver Cutting Machine;
Key Selling Points:	Multifunctional;	Single package size:	95X63X41 cm;
CNC or Not:	YES;	Laser Source Brand:	other;
After-sales Service Provided:	Online support,Engineers available to service machinery overseas;	Local Service Location:	none;
Weight (KG):	28 KG;	Engraving Speed:	0-350mm/s;
Dimension(LWH):	956341CM;	Keywords:	Engraver;
Engraving Area:	300x200mm;	Selling Units:	Single item;
Packaging Detail:	carton box with foam;	Showroom Location:	none;
Package Preview:	;	Applicable Material:	Acrylic,Crytal,glass,leather,MDF,PAPER,plastic,Plexiglax,plywood,RUBBER,STONE,wood;
Graphic Format Supported:	AI,BMP,dst,dwg,DXF,DXP,LAS,PLT;	Application:	Laser Engraving;

Product Description

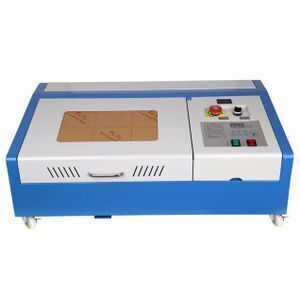

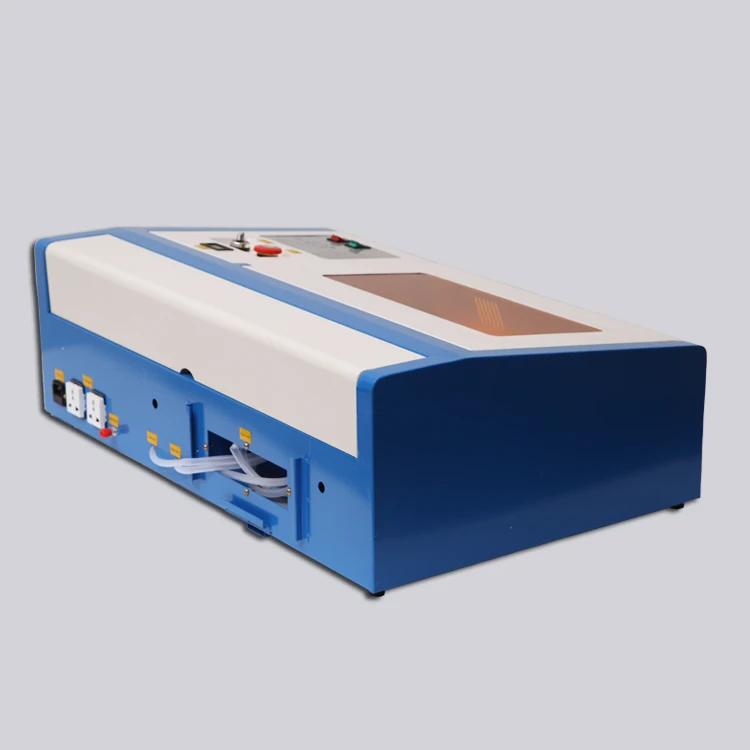

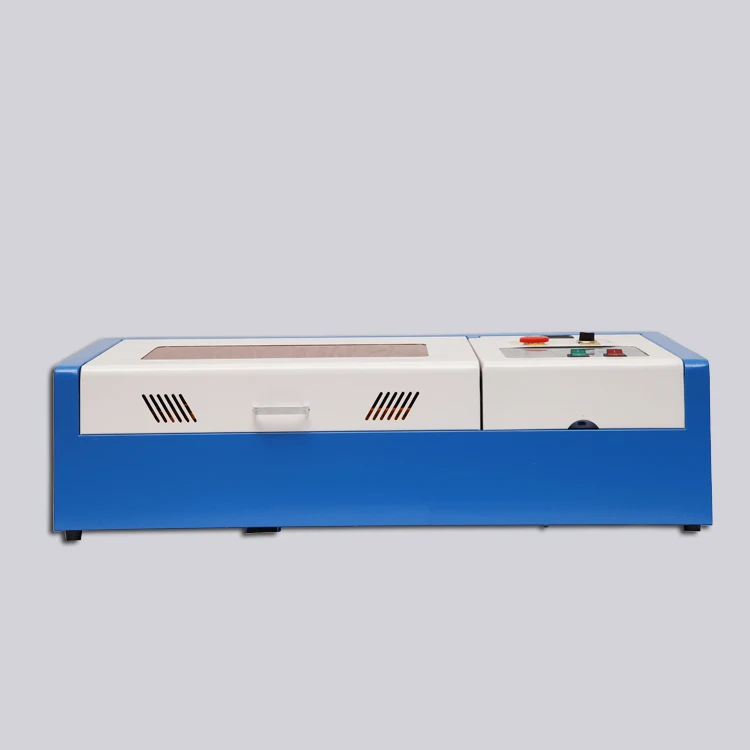

Engraver WIth High PreciseWood Cutter 40W CO2 USB Laser Engraving Cutting Machine

Introduction

This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.

1.Applicable Material:

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.

2.Applicable Industry:

This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.

FDA Compliant:	Yes
CE Certification:	Yes
ISO9001 Quality Certification:	Yes
Laser Type:	CO2 Gas
Tube Trigger Volt:	20KV
Tube Operating Volt:	15KV
Current:	0~22mA
Engraving Area:	12x8in (300x200mm)
Maximum Item Size to Engrave:	10.25W x 8.75L x 2.85H in (260mm x 220mm x 70mm)
Laser Tube (life hours):	1000-1300 Hours
Laser Power:	40W
Engraving Speed:	0-13.8 in./s (0-350mm/s)
Cutting Speed:	0-1.38 in./s (0-35mm/s)
Minimum Shaping Character:	0.04 X0.04in (1mm X 1mm)
Resolution Ratio:	0.001 in (0.026mm) / (1000dpi)
Power Supply:	110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Resetting Positioning:	≤0.0004 in (0.01mm)
Motor Type:	Stepper Motor
Software Supported:	CorelDraw software (both NewlyDraw and NewSeal function)
Power Consumption:	≤250W
Operating Temperature:	32-113F (0-45C)
Graphic Format Supported:	BMP/JPG/JPEG/WMF/EMF/PLT
Water Cooling:	Water Pump include
Recommended Spare Parts/Consumables:	Laser Tube, Focal lens,Reflection lens
Product Dimensions:	37.4 X 24.8 X 16.1in.(950x630x410mm)
Product Weight:	61.95lbs(28.1kg)

Packaging & Shipping

1 x CO2 LASER Engraver
1 x Water Pump
1 x Smoke Pipe
1 x Smoke Fan
1 x Power Wire
1 x USB Cable
1 x USB Key
1 x Accessory Bag
1 x Instruction Video
1 x English User Manual
