6 head ULTRASONIC MIST MAKER humidifier & float discs fogger

Supplier: Shanghai Peixu Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Helen Yin
Price: $98.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single package size:	37X31X18 cm;	Condition:	New;
After-sales Service Provided:	Online support;	Applicable Industries:	Hotels,farms,restaurant,HOME USE;
Cooling model:	Air-cooled;	Selling Units:	Single item;
Mist Quantity:	1600 ml/h;	Product name:	6 Head Ultrasonic Mist Maker;
Brand Name:	PEIXU;	Place of Origin:	Shanghai China;
Water level:	6CM;	Power line:	1.5M;
Power:	AC 24V, 200W;	humidifier Voltage:	DC48V;
Shell material:	Stainless Steel;	Warranty:	1 YEAR;
Cable length:	10 M;	Voltage:	110V;
Transformer Voltage:	110V;	Single gross weight:	6.8 KG;

6 Head Ultrasonic Mist Maker

	Shell material	Stainless Steel
	Power	AC 24V, 200W
	Mist Quantity	1600 ml/h
	Cable length	10m
	Ceramic Disc	1.7MHz, Dia. 20mm
	Transformer Voltage	110V
	humidifier Voltage	DC48V
	Working current	4.8A-5A
	Cooling model	Air-cooled
	Power line	1.5 m
	Water level	6cm

Product Description

This brand new 6 Head Ultrasonic mist maker can be used in many horticultural application including hydroponics, propagation, foliar feeding, grow room and greenhouse humidity generation, etc.

Usage step:
Place the nebulizer smoothly in a water container and inject an appropriate amount of clean water ( when the water level is lower than the water level sensor switch, the product will not spray; when the water is higher than water level sensor switch , the spray effect is not good. The nebulizer will generate heat in the working process, and water temperature will rise. It is recommended that this nebulizer should be used in the water container with good heat dissipation conditions.)

Plug the nebulizer power cord into an external DC power source. Turn on the power, the product can work normally.

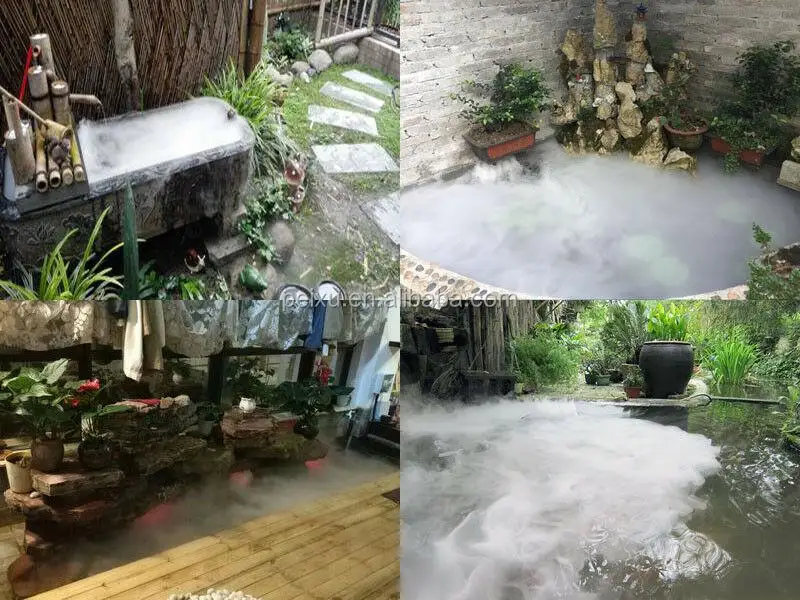

Application:
1. Waterscape pool manufacturing fog
2. Spinning humidification
3. Tobacco humidification
4. Mushroom humidification
5. Greenhouse flowers humidification
6. Printed Electronics humidification

Product Features

Atomized water quality and adaptable, the same nebulizer use pure water or tap water can work
The power for a wide range of products to ensure that the changes in the city still under normal use larger occasions
There boot delay circuit, to avoid a power surge current excessive damage to the line
A single sprinkler line using an independent design, and the use of over-current protection circuit, avoiding the burning of a nozzle damaged power lines, and does not affect the normal operation of other jets
The machine current voltage and temperature by less influence, because each nozzle current electronic automatic adjustment, the current increasing temperature will decrease (does not affect the amount of fog), to avoid serious power tube heat current increasing the vicious cycle and damage the atomizer
This product uses high thermal conductivity, high corrosion resistance, good mechanical strength of the metal shell, reducing the temperature difference between the water inside the host, thereby prolonging the life of the product

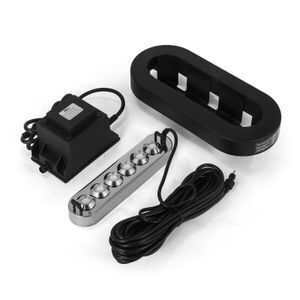

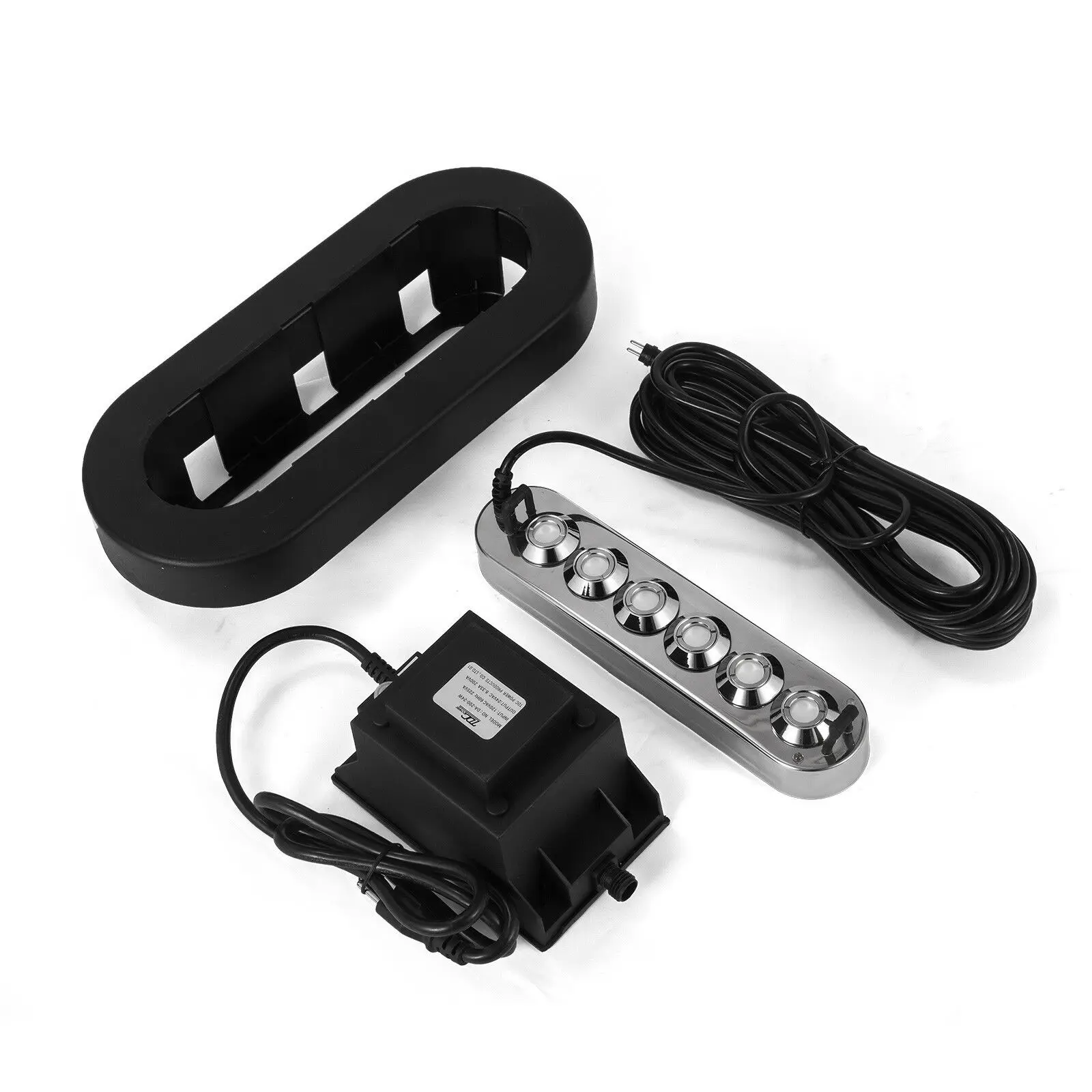

Package

1 x 6 Head Ultrasonic Mist Maker

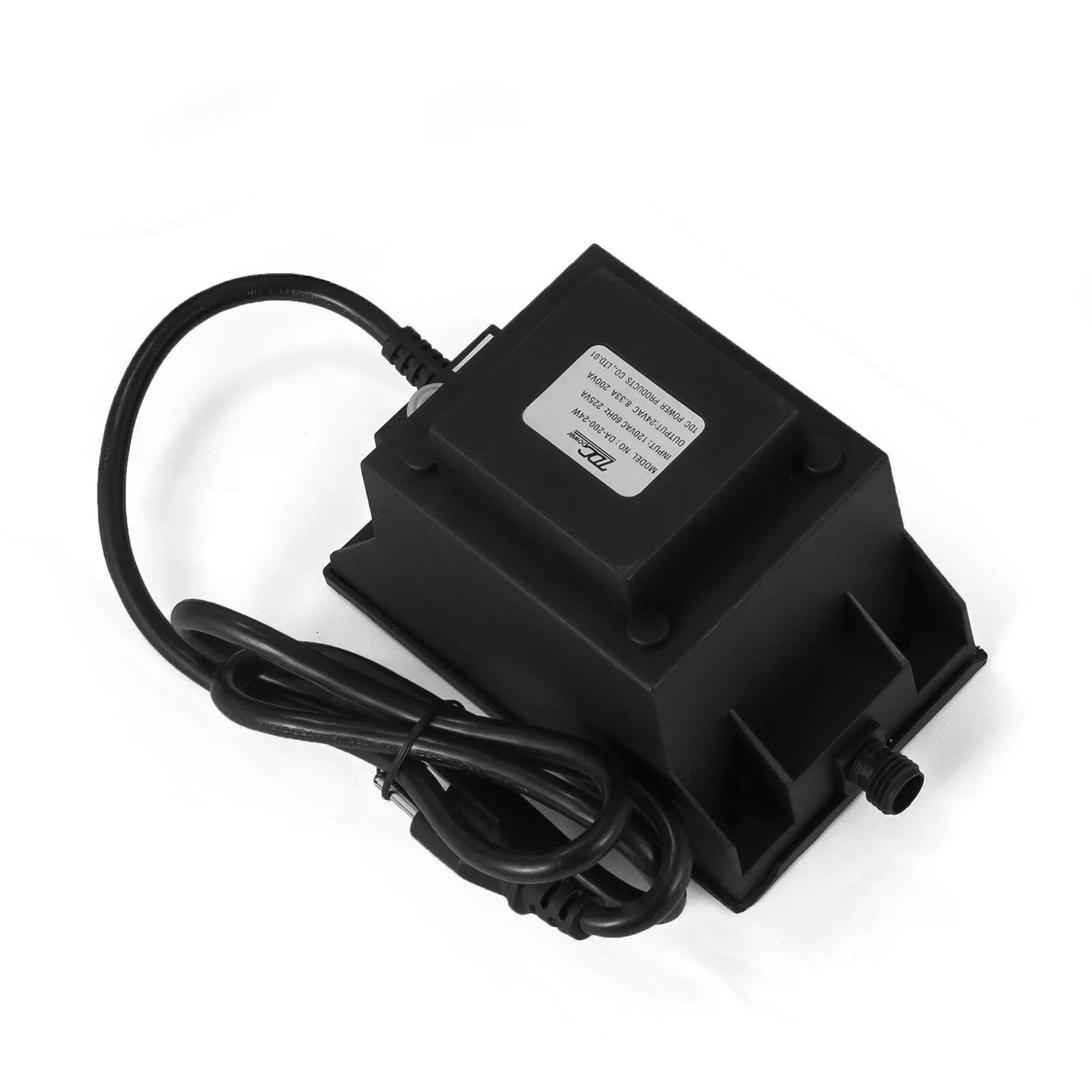

1 x Transformer

FAQ

1. When the atomizer work, please do not put your hand over the top of the atomizer spray chamber to prevent ultrasonic wounded.

2. Nebulizer must be working in the water in order, before using the water and then put it in its power, and to ensure that there is water in a spray film surface state, in order to avoid damage to the nebulizer.

3. When you stop using the nebulizer before disconnect the power, then remove from the water atomizer.

4. When using the nebulizer, please use the output power of more than 250W, the output voltage is DC45 ± 5V supply.

5. When generating a plurality of atomizer is set using the same container, each with a separate power supply need not connect a plurality of the nebulizer for use with a single power supply, and note the respective atomizer are mutually conductive housing, in order to prevent the work galvanic corrosion.

6. Mist generated by the nebulizer must use fan forced discharge, and each group of nebulizer reserved 350CM2 of flat space, the water temperature is too high to avoid shortening the life of the nebulizer.

7. Nebulizer not suitable for corrosive liquid atomization, to avoid damage to the atomizer and atomized metal sheet.

8. Do not damaged during installation level sensor switch, switch failure caused the water level to prevent runaway nebulizer. Level switch should stop after the damage, otherwise there will be further damaged dry atomized piece atomizer. At this point in order to use the required repairs by qualified service personnel after a good.

Product Images
