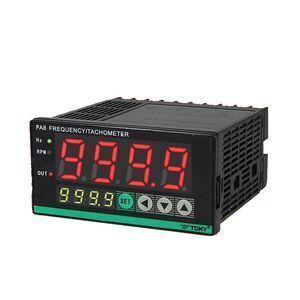

FA Digital Frequency Meter LED Display RPM Tachometer

  • Supplier: Toky Electrical Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Lisa Wang
  • Price: $17.00 / >=10 pieces
  • Min. Order: 10 pieces
Product details
Place of Origin:Guangdong China (Mainland);Packaging Detail:Standard paper box, one product in one small box, cartons choosing according to the different size of the products.;
Optional function:Pulse signal input or high voltage input input;Port:Zhongshan;
Signal input:One input signal;Display Type:Digital Only;
Brand Name:TOKY;Payment Terms:L/C,T/T,Western Union;
Model Number:FA8;Measuring Range:0.000-9999;
Supply Ability:3000 Piece/Pieces per Month;Alarm output:One alarm output;
Communication:No;Voltage:AC 220V;
Accuracy Class:±0.1Hz;Dimensions:48Hx96Wx100L;
Operating Temperature:0~50℃ ≤85%R.H;

FA Digital Frequency Meter LED Display RPM Tachometer





Frequency meter is the instrument which receive the pulse signal from the sensor, and reappear the live mechanical equipment running speed by internal processing operations,thus to achieve the protection of field devices by its included output function. And it is widely applied on the instruments’ running status monitoring and operation speed controlling.













1) Pulse signal/high-voltage industrial frequency signal input.

2) Frequency/linespeed/tacho measuring is selectable.

3) One alarm relay output function.

4) Input signal is specially filtered, which improves anti-clutter ability.







For measuring frequency/tacho/linespeed/industrial frequency, high voltage industrial input signals are isolated while input/output to guarantee the reliable performance. Pulse signal input Models can realize linespeed/tacho/frequency 3 display function switchable using. And it is with large-size LED digital display which is more intuitive to view,it also featured wide measuring frequency range and one relay output function.

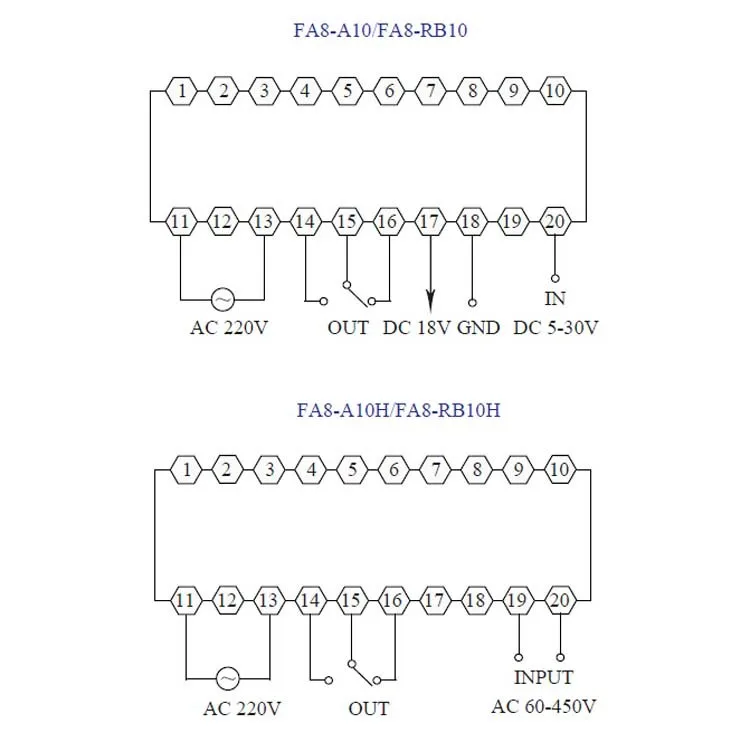

FA8 Series Frequency Meter Model:

Model Input Signal Frequency upper line Output Alarm
FA8-A10

5~30V
pulse signal

0~5000Hz NoNo
FA8-RB10 Relay1
FA8-A10H

60~380V
voltage range

0~400Hz NoNo
FA8-RB10H Relay1











FA8 Series Linespeed Frequency Meter Specification:

Power Supply AC 220V±10% 50Hz
Power consumption ≤3.5W
Response speed About 1s
Measuring error ±0.1Hz
Display range 0.000-9999
Input Voltage Pulse signal:5~30V pulse voltage Industrial frequency voltage: 60~380V/AC
Input Frequency Pulse signal:0~5000Hz Industrial frequency voltage: 0~400Hz
Auxiliary Voltage 12V load current ≤30mA
Output Capacity AC/DC 250V 5A(Resistive load)
Impulse interference 3 grade 2000Vp-p
lightning surge 3 grade power port:L-N ±2000V
Working Environment 0~50℃ ≤85%R.H
Storage Environment -20~60℃ ≤85%R.H
Withstand Voltage AC 2000V 50Hz 1 min
Insulation resistance DC 500V ≥100MΩ
