wood working slotting groove Automatic Mortising machine

Supplier: Foshan City WEHO Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Liu Sherry
Price: $1800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Spindle speed:	9000rpm;	Max rabbet height:	15 mm;
Drill Diameter:	mm;	After-sales Service Provided:	Online support,Engineers available to service machinery overseas;
Power(W):	2.2 kw;	Max mortise depth:	80 mm;
Application:	Woodworking,furniture, windows, end milling or cutting;	Warranty:	1 YEAR;
Port:	foshan;	After Warranty Service:	Video technical support,Online support,Spare parts;
Brand Name:	WEHO;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;
Condition:	New;	Name:	Automatic Mortosong machine suppliers;
Motor Speed:	9000 rmp;	Product aim:	furniture production;
Spindle motor:	2.2kw;	Dimension(LWH):	1510 * 950 * 1250mm;
Automatic Grade:	Automatic;	Voltage:	380V 50HZ;
Local Service Location:	none;	Place of Origin:	Guangdong China;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Certification:	ISO9001;
Max rabbet length:	150 mm;	Supply Ability:	20 Unit/Units per Month;
Packaging Detail:	waterproof film;	Showroom Location:	none;
Key Selling Points:	Easy to operate;

Product Description

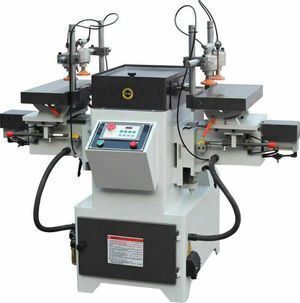

Automatic Mortising machine

Mainly use for wood mortising.

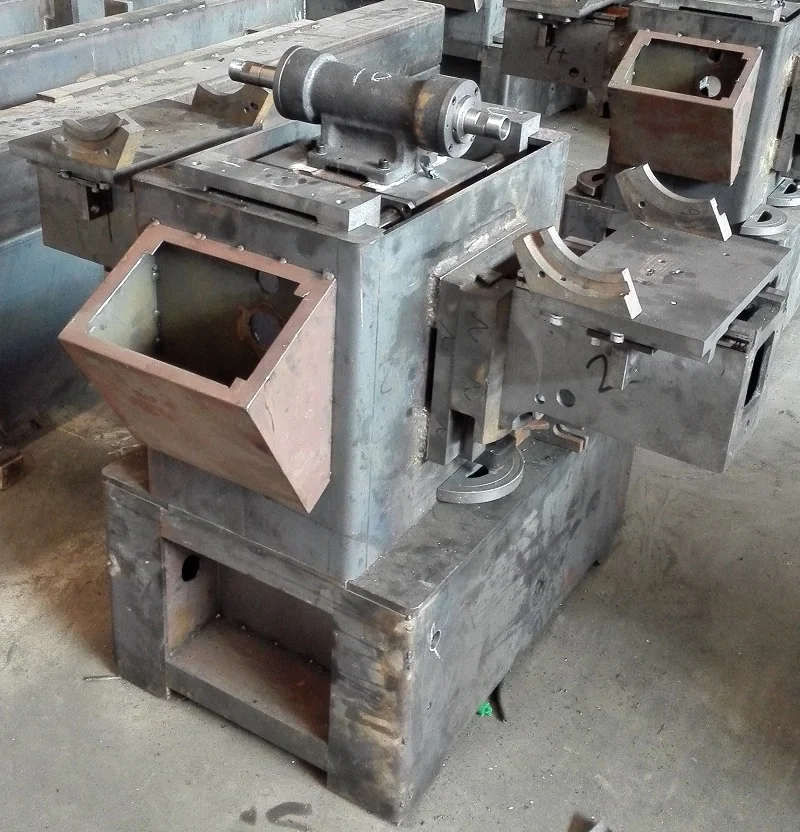

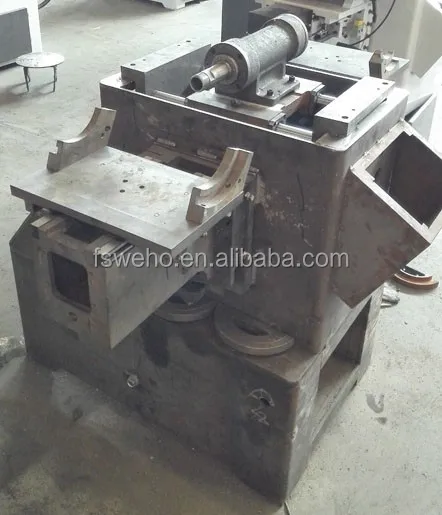

The spindle head is manufactured from cast steel.
Equipped with steel bearing bushing to avoid bearing loosening which may affect machining accuracy.
Wood Oscillation mortising machine with steel round rods on spindle side ways.
A mechanical meter provided on the mortise width adjustment mechanism ensures high accuracy adjustment.
Nitrogen cylinder supports top cover firmly.

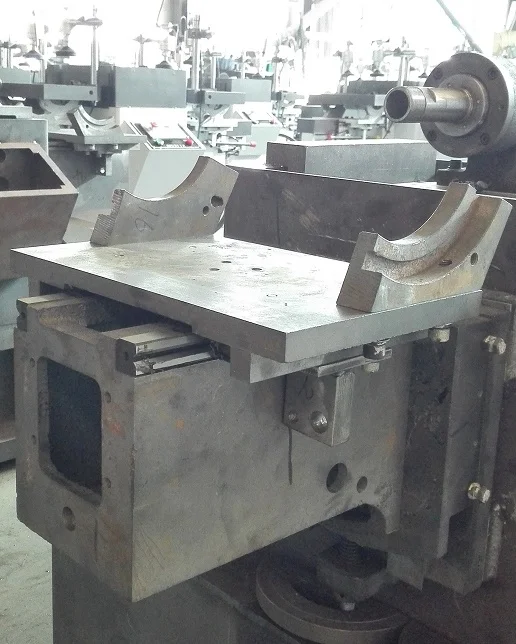

RIGHT AND LEFT TABLE

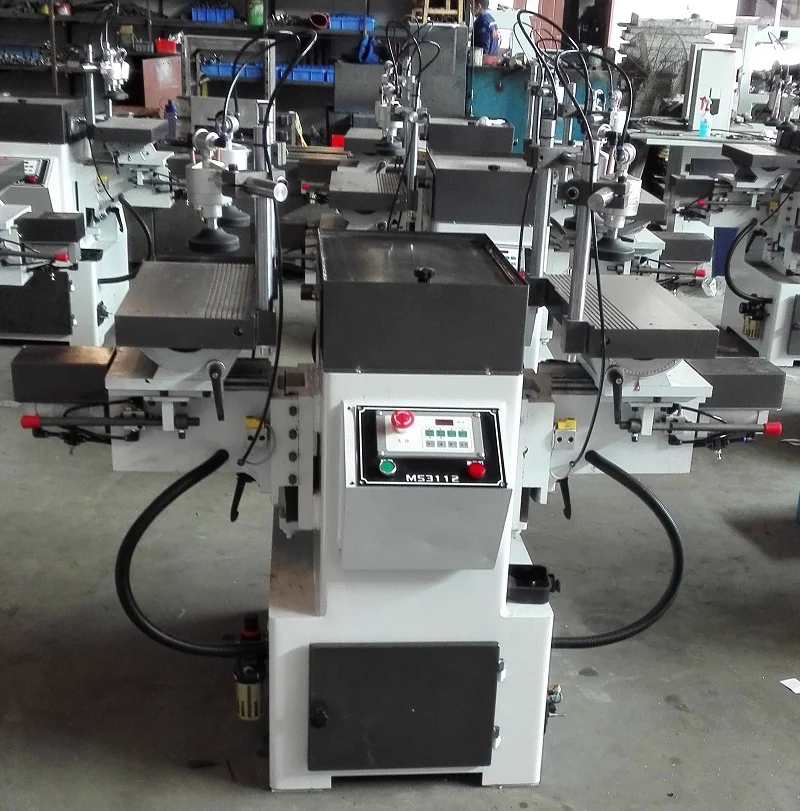

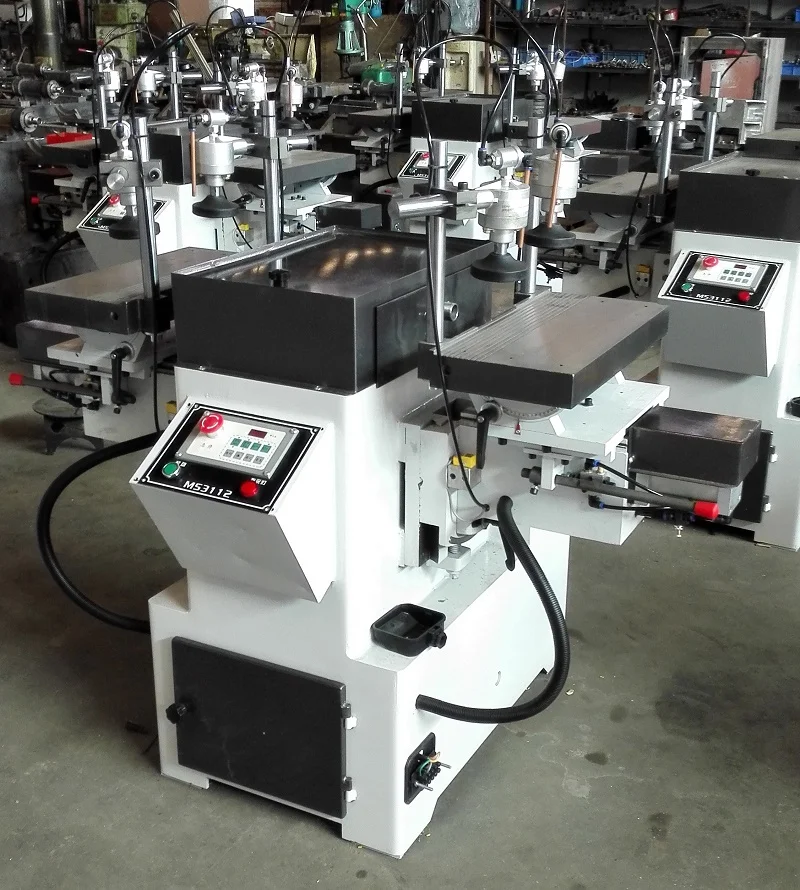

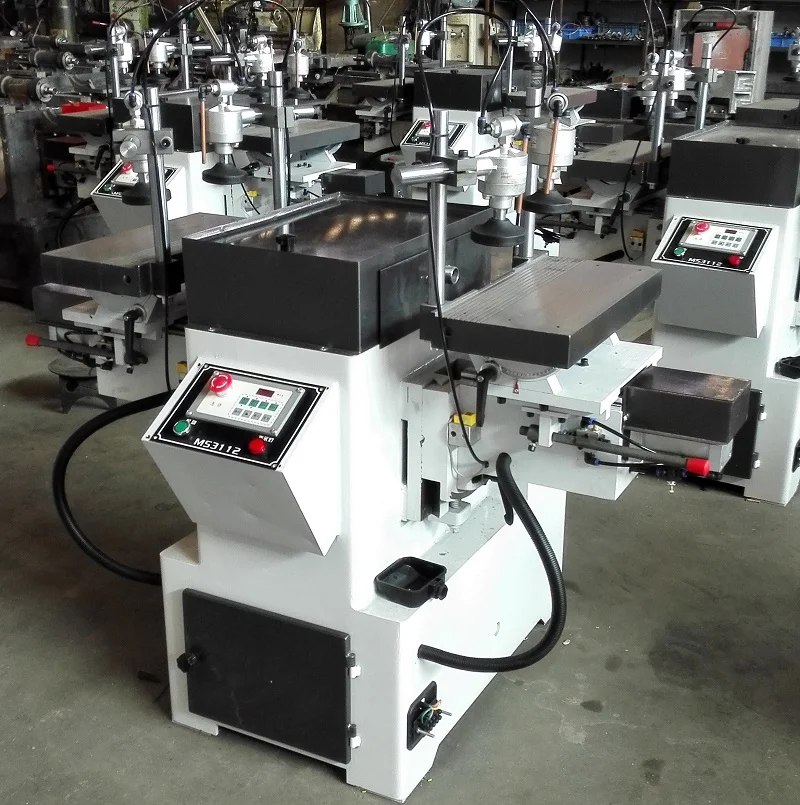

The machine is equipped with two tables at the right and left side allowing two operators to use simultaneously.
Table tits 25 degree at the right and left side.
Table is elevated by turning a handwheel

Model	MS3112
Max. mortise width	120 +2Rmm
Max. mortise depth	60 mm (2 3/8)
Max. clamping thickness	100 m/m
Table tilts	+-20
Table stroke	80 mm (3 1/7)
Cutter oscillation speed	0 - 340 strokes/min
Controller	magnetic switch
Spindle motor	2.2KW (3HP)
Cutter oscillation motor	1/2 HP
Table elevation distance	75 m/m
Spindle speed	9500 R.P.M.
Working air pressure	5 kgf/cm²
Packing dimensions (L x W x H)	1510 * 950 * 1250mm
Gross weight	570 kg

About Us

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.

Our goal is to exceed customer expectations. We’re machine factory, but service is our business.

How to buy

1. Contact WEHO sales and provide your requirents to get best solutions

2. Order confirmed, get invoice, contract from WEHO.

3. Normally, producton started against TT by 30% deposit.

4. After one week, WEHO sales inform you production state and delivery date.

5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.

6. Book shipping order, delivery the machine to your port.

How to do if I can not operate

When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.

How to get spare part after warranty

After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.

Service contacting

Before buying, choose suitable model contact Whatsapp 00861337847781. After buying, technical supporting contact 008613326792205
