wood laminate door hot press machine

Supplier: Foshan City WEHO Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Liu Sherry
Price: $18000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Application:	Wood door furnitures board;	Weight:	8500kg;
Brand Name:	Tierenxinwei;	Condition:	New;
Applicable Industries:	Building Material Shops,woodworking machine;	Dimension(LWH):	375017002500mm;
Pressure:	1000T;	Max platen opening:	300mm;
Functions:	door press machine;	heating pipe power:	54kw;
Usage:	illustration board hot press machine;	Place of Origin:	China;
Warranty:	1 year;	Single package size:	375X170X250 cm;
Hot press pressure:	80-500Tons;	Dimension of Hot Platens:	1300*2500mm or customized;
Net weight:	6000kg;	Voltage:	380V/50HZ;
Product aim:	woodworking veneer lamilating;	Power(W):	5.5kw;
Selling Units:	Single item;	Package Type:	waterproof film;
After-sales Service Provided:	Online support;	Certification:	CE/ISO9001;
Single gross weight:	8,500 KG;	Package Preview:	https://sc02.alicdn.com/kf/H38ce7cffd5b34a1cb7cc751823e38d47Y.jpg_640x640.jpg;
After-sales Service Provided:	Engineers available to service machinery overseas;

Product Description

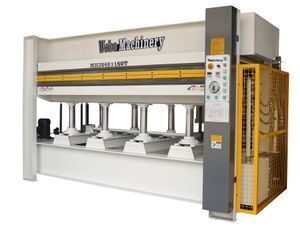

wood laminate door hot press machine

Widely used in laminating veneer face,melamine for MDF board,plywood
and other fibreboard,etc.;
high-speed double-face laminating,easy to operate and maintain
It’s the best choice in making veneer sheets and laminated flooring;
Professional design,secure and reliable;
Adopt high quality and power brand accessories,as to the main components
and parts as well as all the hydraulic components.

Model	MH3848
Press platen dimensions	1300250042mm
Max. total thrust	100-500T
Pressure of hydraulic	295kg/ cm2
Max. platen opening	100mm/80mm
Oil cylinder	85*8pcs
Hydraulic motor	7.5kw
Hot oil pump	2.2kw
Heating pipe power	72kw
Overall size	370016602650mm
N/W	7900kg

illustration board hot press machine for pressing veneer ,fireproofing-board ,decorating-paper and so on.

Come with solid steel heat plate board which have deep-hole drilling technic ,configure with pedal emergency switch ,quadric temperature protection device etc;

Hydraulic parts cylinders and composites are imported from Japan and Taiwan .

Heating type :

1.Electric heating with circulating heat-transmission oil (standard configuration );

2.Steam heating (optional)

3.With both electric and steam hearing ,suitable for shortage of steam area

High quality column cylinder, famous brand in China.

Safe cover with door press machine is standard parts.

Origianl Taiwan Yutiea hydraulic system and hydraulic valve, strong and durable.

7.5KW 10HP motor for lift table, fast open hot platen.

Manufacturing hot pressing of plywood from 15 years ago, full production experience for speical requirement.

Recommend products.

About Us

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.

Our goal is to exceed customer expectations. We’re machine factory, but service is our business.

How to buy

1. Contact WEHO sales and provide your requirents to get best solutions

2. Order confirmed, get invoice, contract from WEHO.

3. Normally, producton started against TT by 30% deposit.

4. After one week, WEHO sales inform you production state and delivery date.

5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.

6. Book shipping order, delivery the machine to your port.

How to do if I can not operate

When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.

How to get spare part after warranty

After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
