High Voltage Fiberglass Telescopic link stick Telescopic Hot Stick
- 18.69 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Extended Length: | 3m; | Voltage: | 10KV; |
| color: | Red,yellow or as your requirement; | Package: | 1pcs in a Bag; |
| Model Number: | JTTP-3M/3; | Brand Name: | JIATAI; |
| Port: | Tianjin Port; | Name: | High Voltage Fiberglass Telescopic Link Stick; |
| Place of Origin: | China; | Package Preview: | ; |
| material: | fiberglass; | Net Weight: | 1.5kgs; |
| Feature: | Insulation; | Packaging Detail: | bag, carton; |
| Retracted Length: | 1.25m; | Sections: | 3; |
| Supply Ability: | 10000.0 Piece/Pieces per Month; | Payment Terms: | L/C,T/T,Western Union; |

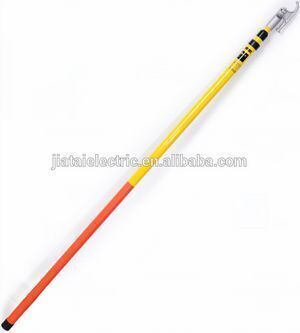

High Voltage Fiberglass Telescopic Link Stick
The fiberglass telescopic link stick is designed for opening and closing disconnect switches. It is made from epoxy resin, with the properties of super light, high strength and high insulation.
The hook is detachable, you can adjust the angle according to your needs.
There are lot s of models and sizes for your selection. Customization is acceptable.
Specification
|
Model |
Total Length |
Test Voltage |
Net Weight |
|
JTTP-3M/3 |
3M with 3Parts |
10KV |
1.45KG |
|
JTTP-4M/3 |
4M with 3Parts |
10KV |
1.80KG |
|
JTTP-4.5M/3 |
4.5M with 3Parts |
35KV |
2.00KG |
|
JTTP-5M/3 |
5M with 3Parts |
110KV |
2.25KG |
|
JTTP-6M/4 |
6M with 4Parts |
220KV |
2.80KG |
|
JTTP-7.5M/5 |
7.5M with 5Parts |
500KV |
3.75KG |
|
JTTP-10M/5 |
10M with 5Parts |
500KV |
4.65KG |
