Ev j1772 type 1 to 62196 type 2/iec 62196 male to female ev adapter

Supplier: Henan Sigma Technology Co., Ltd.
Region: Henan, China
Contact: Ms Vivian Ma
Price: $67.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Insuulation resisitance:	>1000MΩ(DC500V);	Supply Ability:	300000.0 Piece/Pieces per Year;
Place of Origin:	China;	Therminal temperature rise:	<50K;
Rated Voltage:	220V~250V 380V~450V;	Rated Curren:	16A/32A/40A;
Operating temperature:	-30℃ ~60℃;	Withstand voltage:	2000V;
Package Preview:	;	Packaging Detail:	1. EV Plug, Power Plug and control box should be bubble wrapped separately , then overall packed by bubble bag. 2. Storage bag packed, then packed in standard exporting carton.;
IP Grade:	IP 65;	Model Number:	SGSAE-M3;
Payment Terms:	L/C,T/T,Western Union,PAYPALvisa;	Certificates:	CE,TUV;
Port:	Shanghai,Qingdao;	Contact impedance:	0.5mΩ Max;
Mechanical life:	>10000times;	Brand Name:	ISIGMA;

Special Needs can be accepted, click here for more!

PRODUCTS DETAILS

| PRODUCTS DETAILS |

Working Temperature:	–30℃ ~ 55℃
Thermo plastic(insulator inflammability) :	UL94V-0
IP degree:	IP54
Shell:	Thermoplastic,flame retardant grade UL94V-0
Connector Pin:	Copper alloy, silver plating+thermoplastic on the top
Cable:	Inner copper with TPE/TPU +5m(or customized)
Insulation Resistance:	>1000MΩ(DC500V)
Terminal Temperature Rise:	<50K
Withstand Voltage:	2000V
Contact Resistance:	0.5mΩ Max
Mechanical Life(no load plug in/out) :	>10000 Times
Mating and Un-mating Force:	45N < F < 100N
Impact of external Force:	1M drop and 2T Vehicle Run Over Pressure

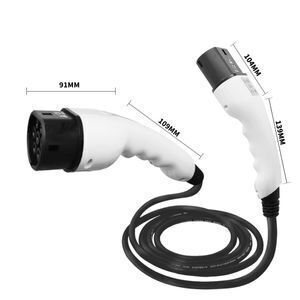

Type 1/SAE J1772 to Type 2/IEC 62196-2 EV Charging Cable
Meet SAE J1772(Type 1 EV Plug) and IEC 62196-2 (Type 2 EV Plug)
Meet SAE J1772(Type 1 EV Connector) and IEC 62196-2 (Type 2 EV Plug)
EV Cable length: 3m, 5m, 10m or customized EV Portable Charger
Color of EV Charging Cord : Orange ,Green and Black.

PRODUCT ANALYSIS TES

| PRODUCT ANALYSIS TEST |

To extend the life of the charger, please note the following points:

1.Don't step on, fold or knot the cable.
2.Don't place the charging cable near high temperature object when charging.
3.Don't operate the EVSE in temperatures beyond its operating range of -30°C to 55°C.
4.Don't put fingers into the charging connector when the power plug is still connecting to the power.
5.Don't use this device with an extension cord or adaptor.

Learn More about Product Guarantee & Maintenance!

FACTORY INTRODUCTION

| FACTORY INTRODUCTION |

Henan sigma technology co., ltd. is mainly produce all kinds of EV components, including all kind of EV plugs , EV sockets ,EV extension cables , EV charging stations, EV Mini MSD,EV high voltage connectors and cables. All of our products have TUV, CE ,UL , and CQC approval
