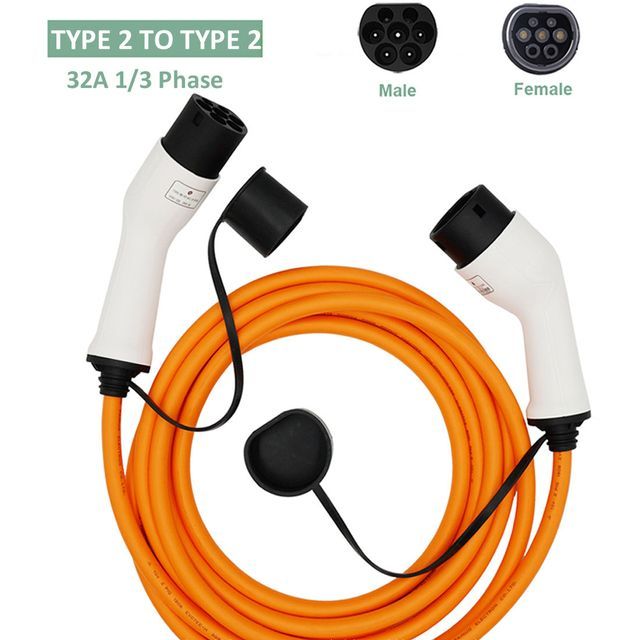

EV Charging Cable Type 2 To Type 2 32a Electric Vehicle Mode 3 7.2kw Three Phase Charging Cable 22kw 5m Evse

Supplier: Yiwu Supuli Electric Appliance Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jonsen LI
Price: $80.00 / 5 - 99 pieces
$70.00 / 100 - 199 pieces
$63.00 / >=200 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Packaging Details:	Box	brand:	Suplee
port:	Ningbo/Shanghai	Origin:	Zhejiang, China
advantage:	fast charging	terminal:	copper alloy, silver plated
Rated voltage:	240V (one-phase) AC; 480V (three-phase) AC	payment terms:	L/C, Western Union, T/T, MoneyGram, Alipay

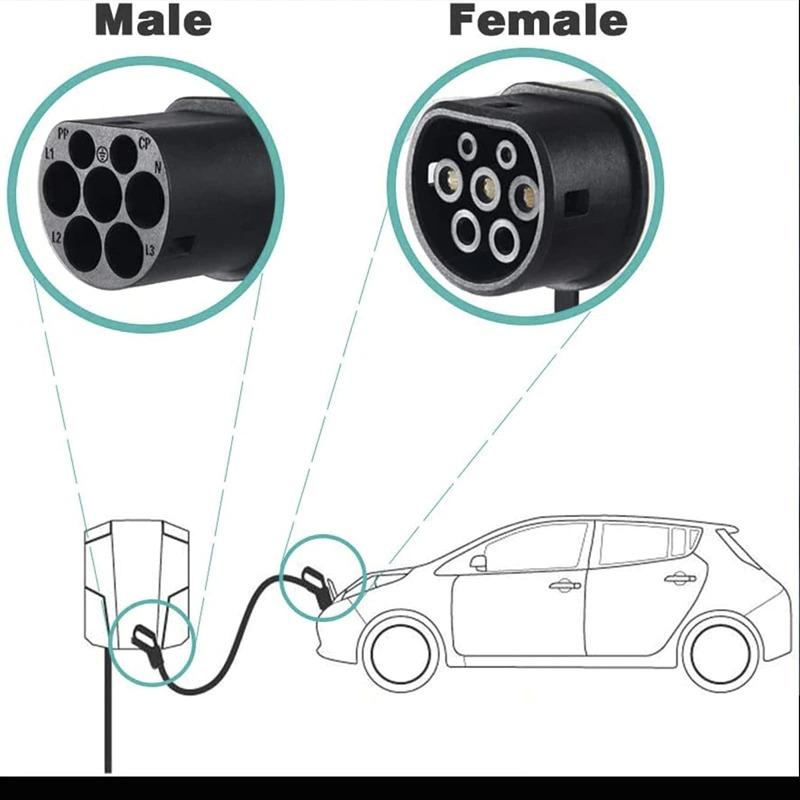

Wire:	thermoplastic polyurethane	Electric vehicle plug:	IEC 62196 Type 2 female plug
Operating temperature:	-30℃~+50℃	weight:	32A 1P 3.5KG; 32A 3P 4.5KG
Supply capacity:	5000 pieces per week	Dimensions (length/width/height):	404010(cm)
Coupling Insertion Force:	45N-100N	Electric vehicle plug:	IEC 62196 Type 2 male plug
model:	Tape 2 32a

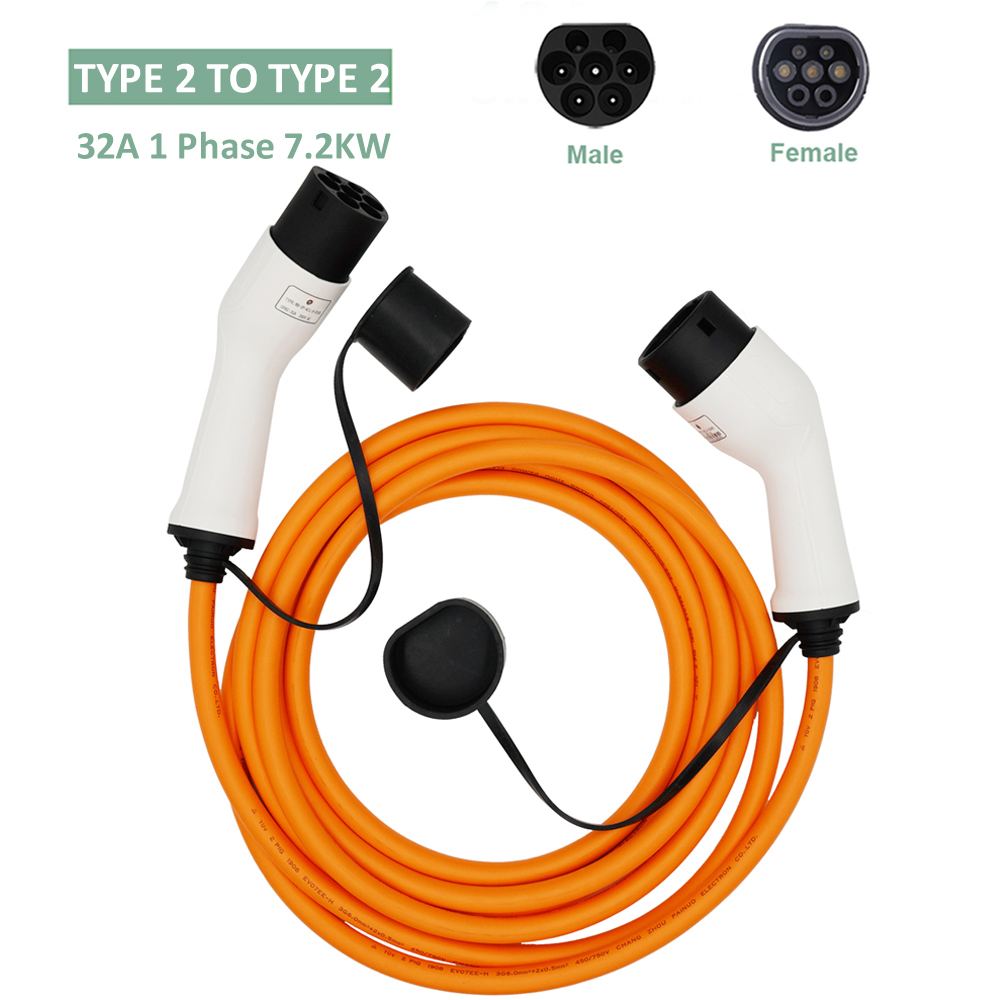

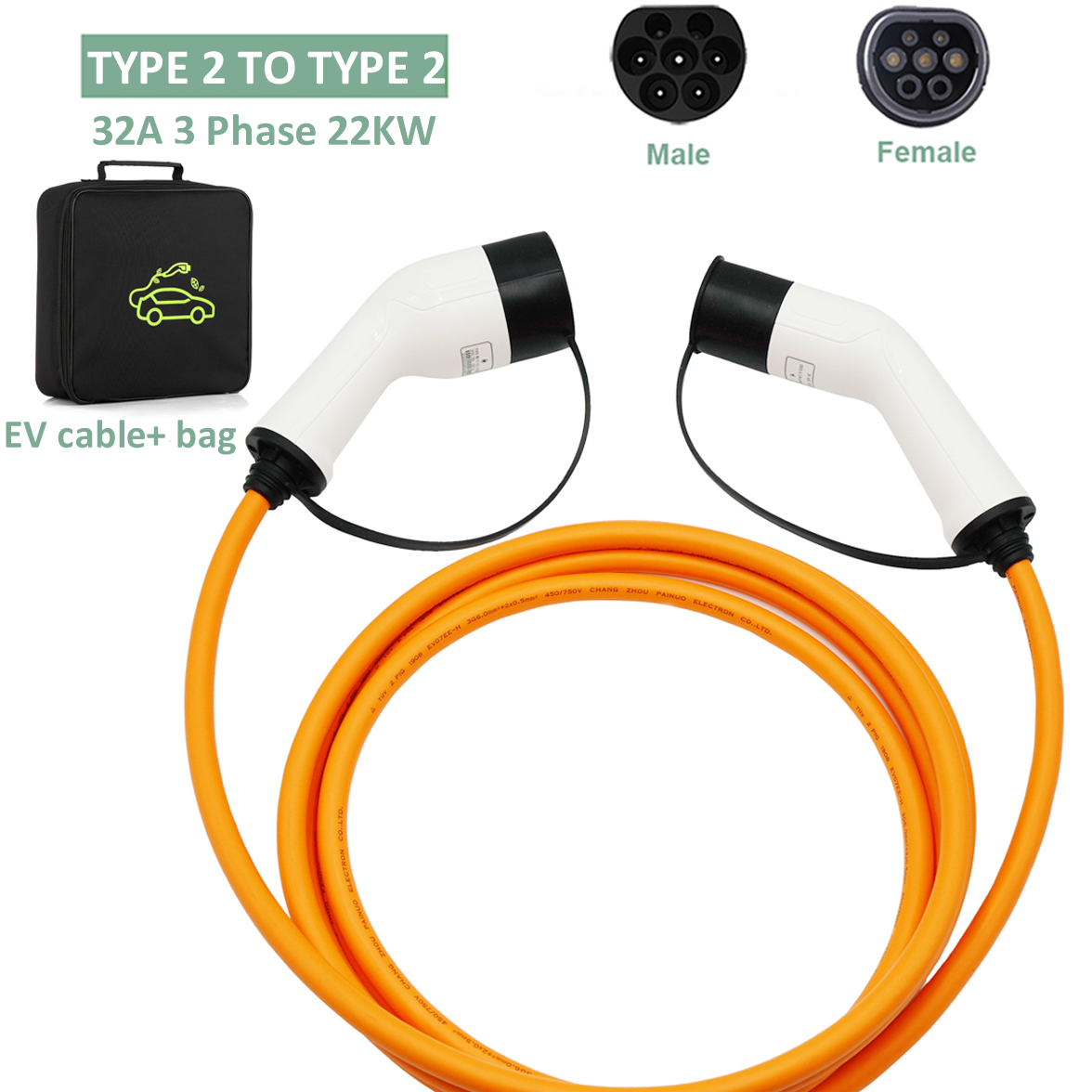

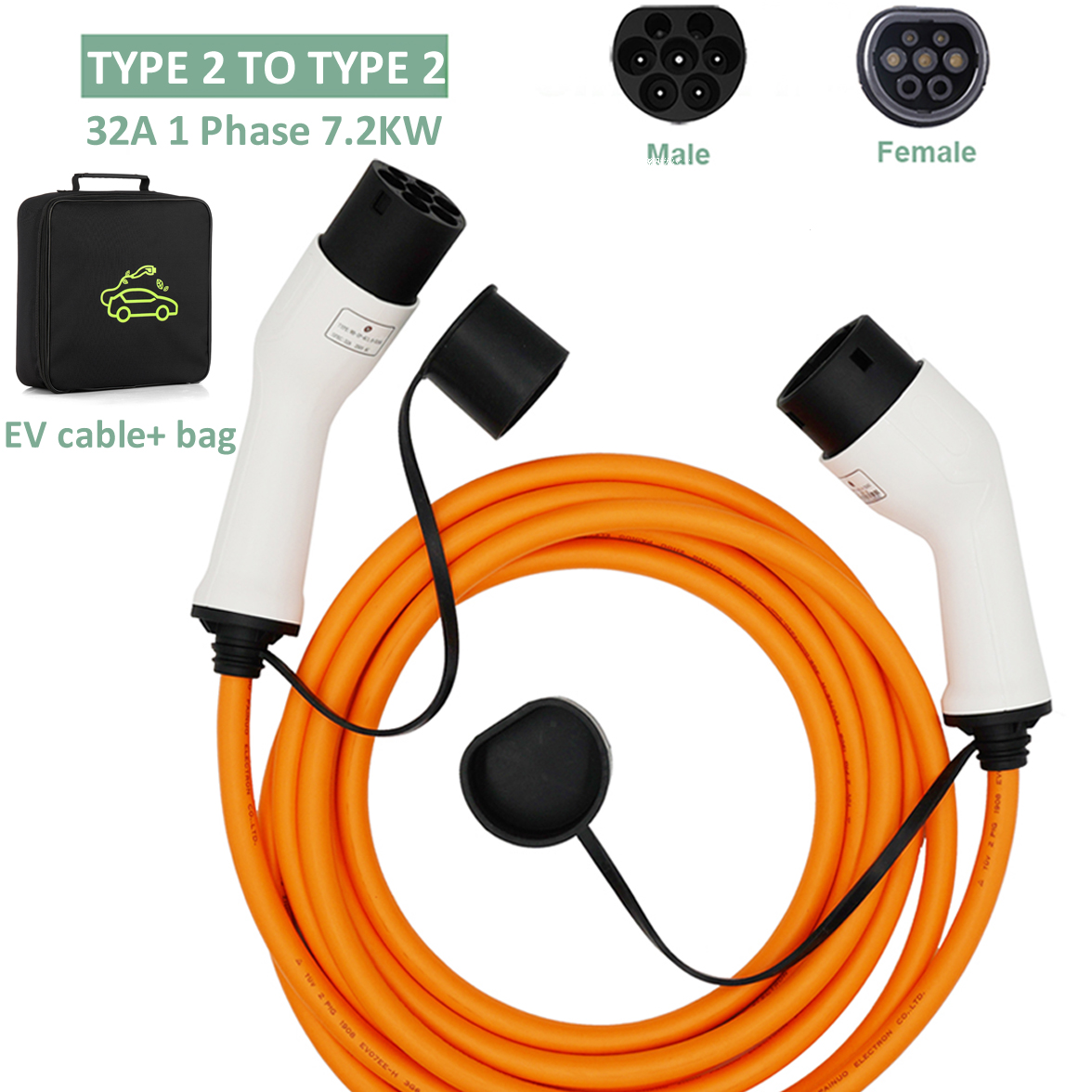

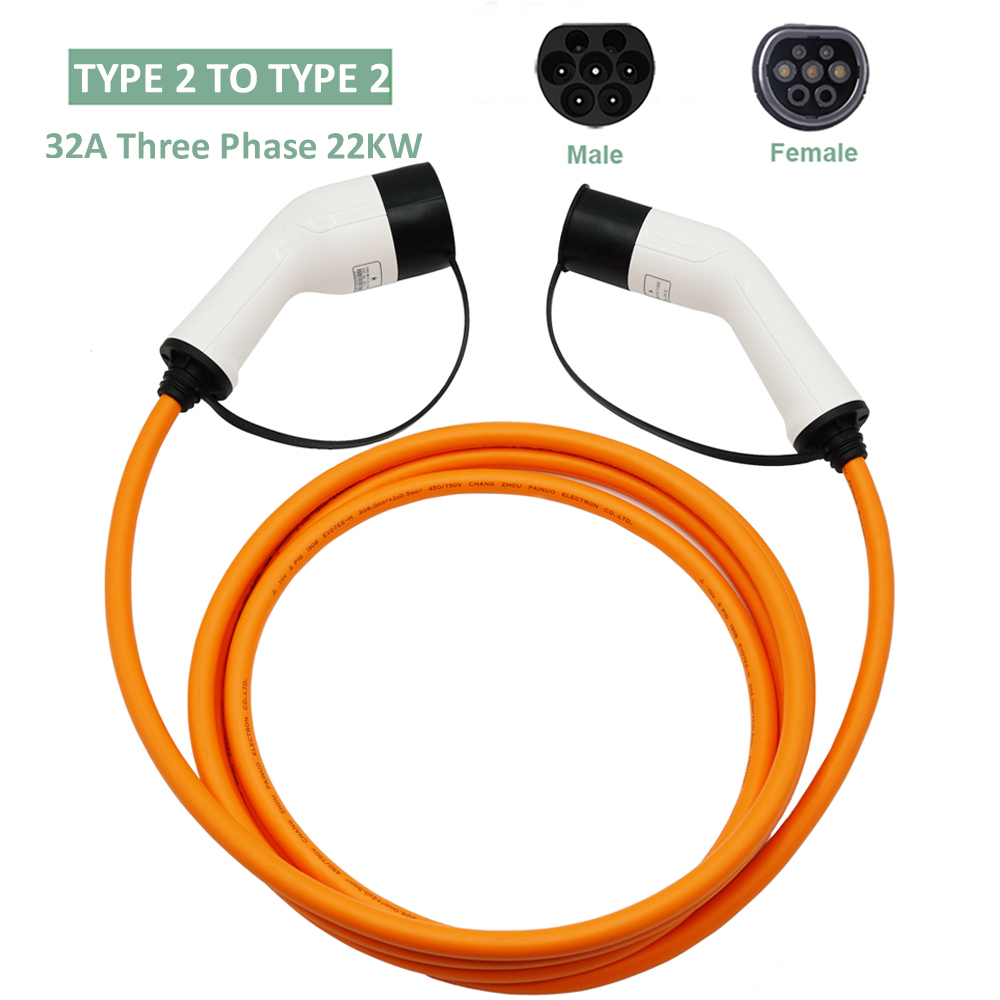

Name	TYPE 2 TO TYPE 2 EV Charging Cable 32A 7.2KW/ 22KW
Rated voltage	240V (one phase) alternating current; 480V (three-phase) alternating current
Rated current (power)	32A 1 phase, 7.2KW 32A three phase, 22KW
frequency	50/60 Hz
Insulation resistance	> 1000MΩ
terminal temperature rise	<50k
tensile strength	2000V
Contact resistance	0.5mΩ
project length	5 meters / 16.4 feet
mechanical life	> 1000 no-load mating cycles
housing	Thermoplastic, flammability rating UL94 V-0
wire	thermoplastic polyurethane
terminal	copper alloy, silver plated

warn

1. Do not immerse the EV charging box in water. 2. Do not step on, bend or damage the cables. 3. Do not drop the EV charging box or place heavy objects on it. 4. Do not place the charging cable near high temperature objects when charging. 5. Do not operate the EVSE at temperatures above its -25°C to 55°C operating range. 6. The input line on the power supply side should be at least 3*2.5mm (recommended 3*4mm), equipped with a standard 16A board. It is recommended to have power distribution done by professionals. 7. Do not stick fingers into the charging jack while the power plug is still powered. 8. Do not use this EV charging box when the cable is damaged. 9. Do not use this device with extension cords or adapters.
