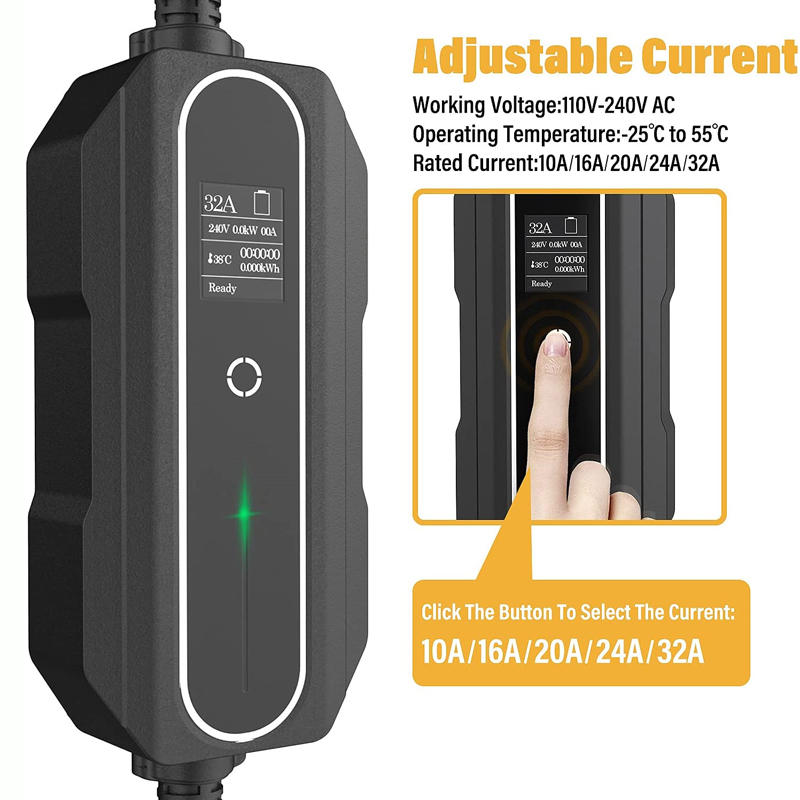

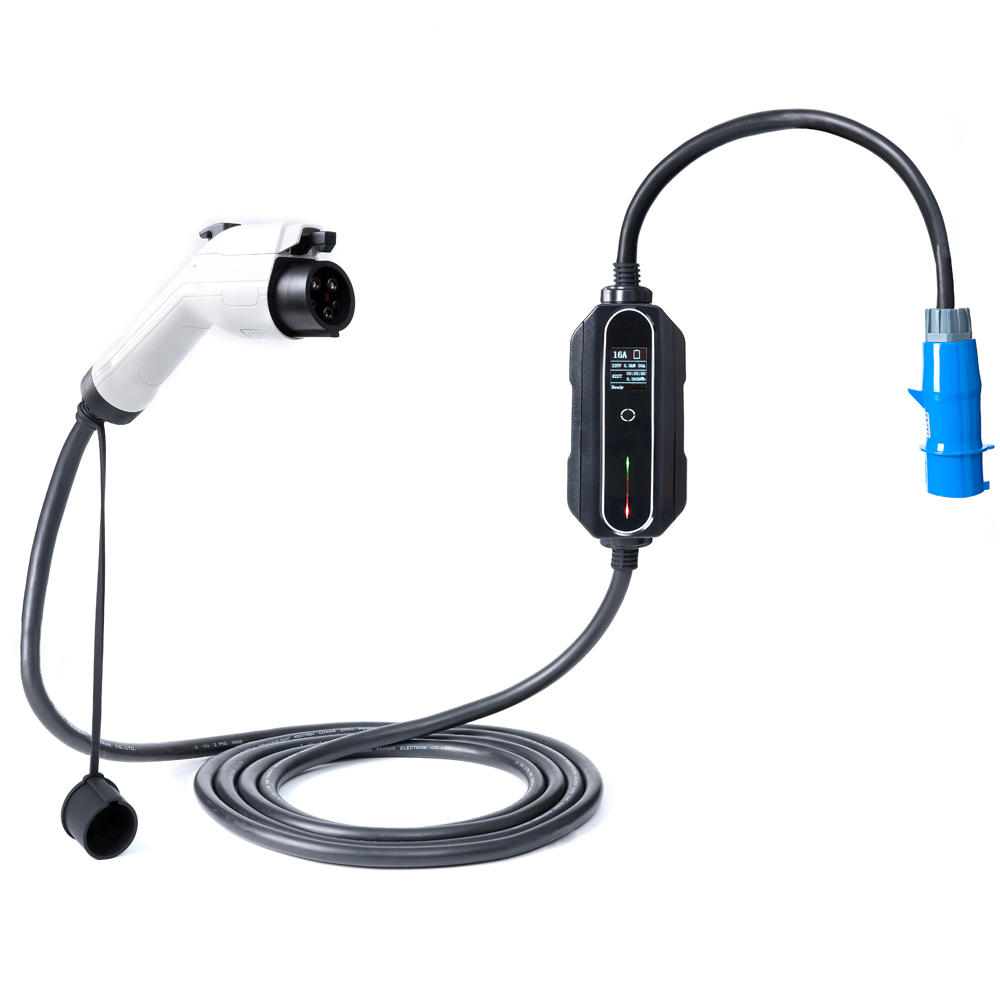

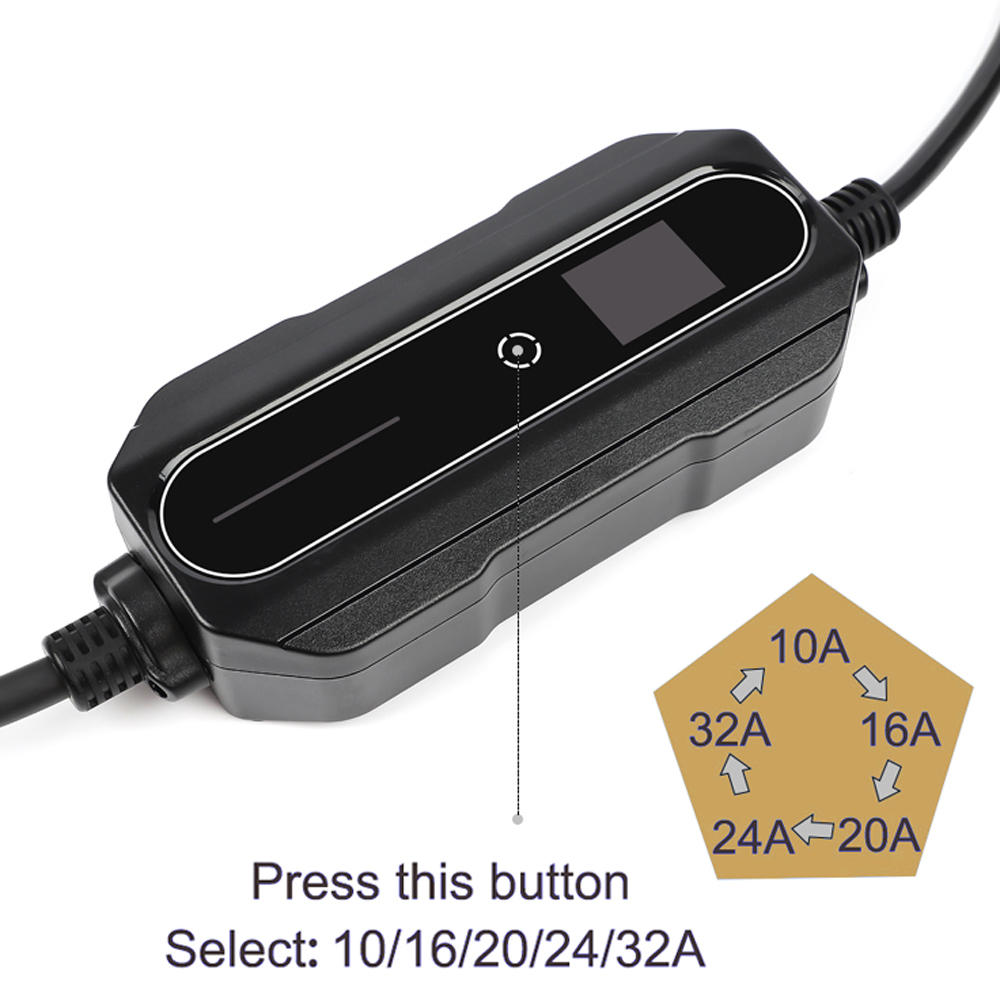

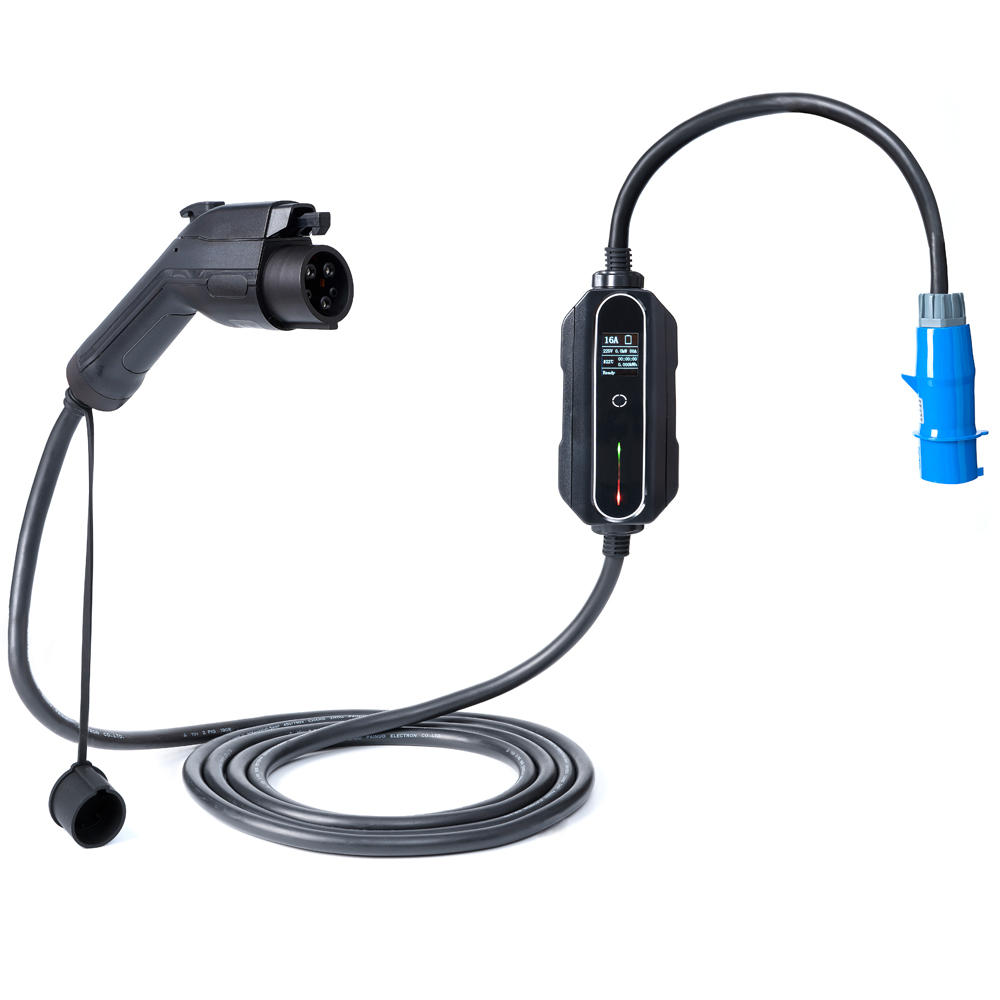

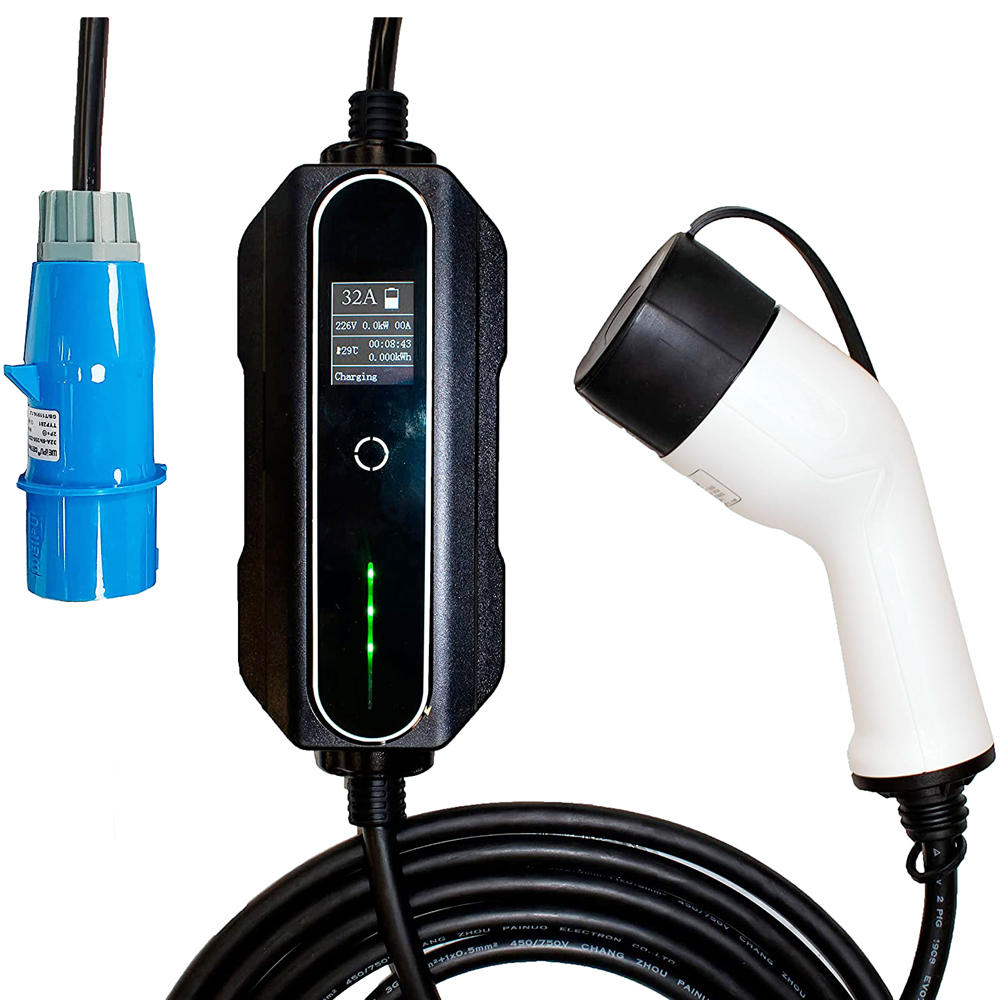

Portable EV Charger Type 1 Level 2 32A 1 Phase 7.2kw Evse Adjustable Current EV Charger Home 5 Meters
- 115.00 2 - 99 pieces
- 100.00 100 - 199 pieces
- 95.00 >=200 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Electric vehicle plug: | SAE J1772 Type 1 plug | Operating temperature: | -30℃~+50℃ |

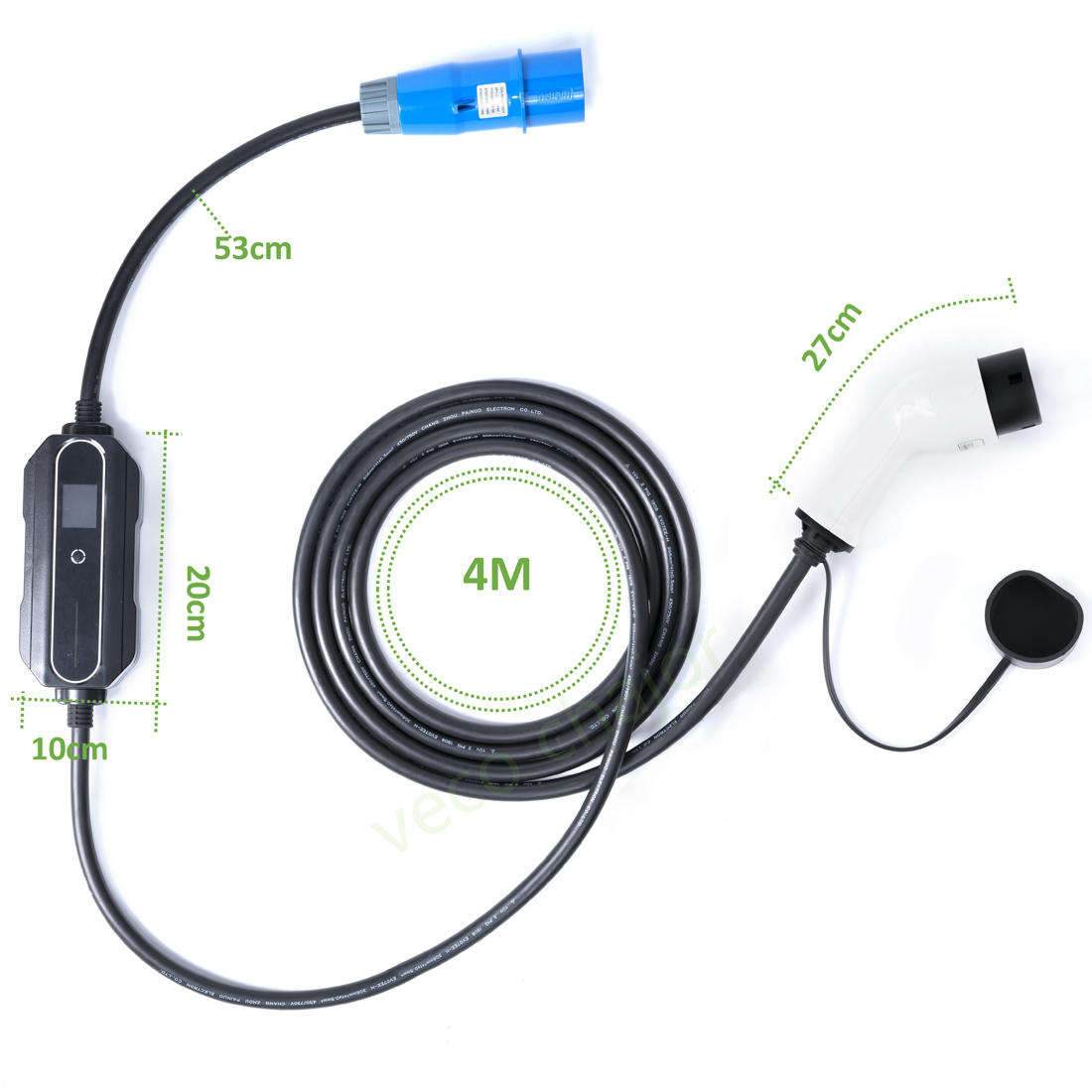

| brand: | Suplee | Dimensions (length/width/height): | 40*40*10(cm) |
| Coupling Insertion Force: | 45N-100N | Supply capacity: | 5000 pieces per week |
| payment terms: | L/C, Western Union, T/T, MoneyGram, Alipay | Packaging Details: | Box |
| Origin: | Zhejiang, China | Power plug: | 3 pin blue CEE plug |
| port: | Ningbo/Shanghai | model: | Type 1-1 |
| weight: | 3.5KG | advantage: | fast charging |
| Wire: | thermoplastic polyurethane | Rated voltage: | 240V (one phase) alternating current |
| terminal: | copper alloy, silver plated |
Name | EV Charger 32A CEE Type 1/Type 2 |
Rated voltage | 220-250V (1 phase) AC |
Rated current (power) | 32A 1 phase 7.2KW |
frequency | 50/60 Hz |
Insulation resistance | > 1000MΩ |
terminal temperature rise | <50k |
tensile strength | 2000V |
Contact resistance | 0.5mΩ |
project length | 5 meters / 16.4 feet |
mechanical life | > 1000 no-load mating cycles |

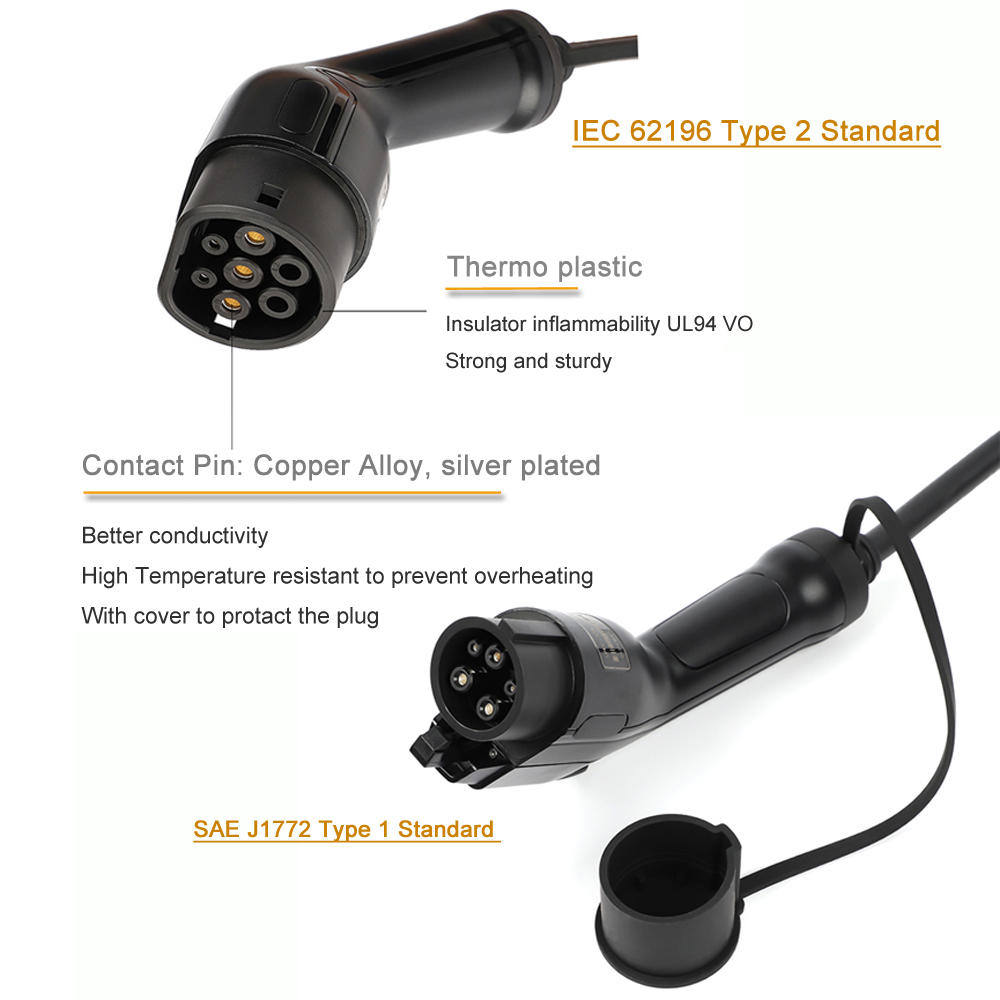

housing | Thermoplastic, flammability rating UL94 V-0 |
wire | thermoplastic polyurethane |
terminal | copper alloy, silver plated |
warn
1. Do not immerse the EV charging box in water. 2. Do not step on, bend or damage the cable. 3. Do not drop the EV charging box or place heavy objects on it. 4. Do not place the charging cable near high temperature objects when charging. 5. Do not operate the EVSE at temperatures above its -25°C to 55°C operating range. 6. The input line on the power supply side should be at least 3*2.5mm (recommended 3*4mm), equipped with a standard 16A board. It is recommended to have power distribution done by professionals. 7. Do not stick fingers into the charging jack while the power plug is still powered. 8. Do not use this EV charging box when the cable is damaged. 9. Do not use this device with extension cords or adapters.
