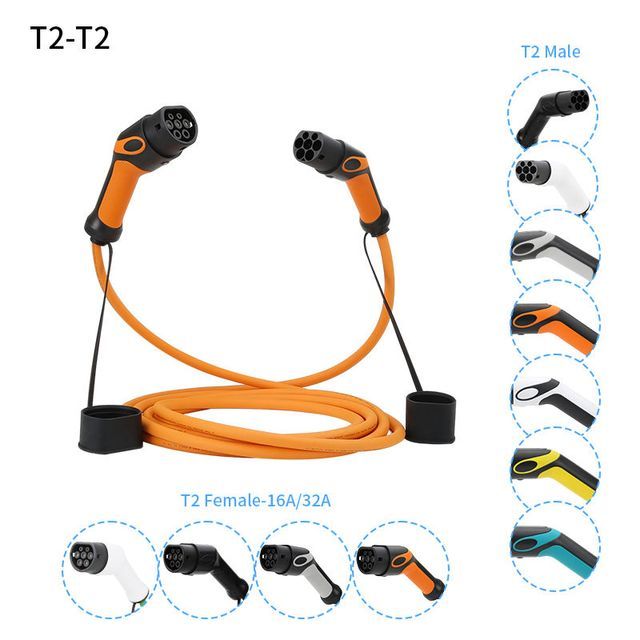

CE certificate 7kw 22kw type2 to type2 single cable 3 phase cable type 2 to type 2 electric vehicle charging cable

Supplier: Shenzhen Mandzer New Energy Technology Co.,Ltd
Region: Guangdong, China
Contact: Ms Melody Li
Price: $45.00 / 5 - 199 pieces
$40.00 / 200 - 499 pieces
$38.00 / >=500 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Protect:	IP65	Connector:	Type2 to Type2 plug
brand:	Manziel	model:	type 2 to type 2
application:	AC home charging	feature:	Overvoltage protection
product name:	EV AC charging cable	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	1000 pieces per month	Place of origin:	Guangdong, China

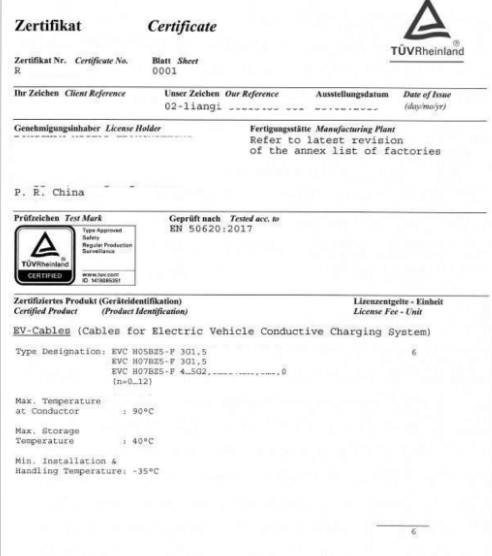

port:	Shenzhen	Certificate:	EU CE certification
standard:	IEC 62196	strength:	7kW/22kW
Warranty:	2 years	color:	Customized colors

Wholesale Type 2 to Type2 EV cable 7KW 32A 1 phase charging cable EVSE charger plug connection EV charger connector type2

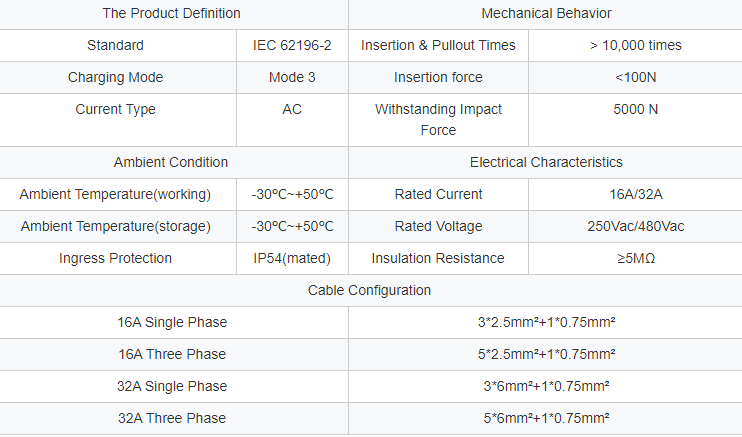

product definition
Stanard	IEC 62196-2:2016
charging method	Mode 3
Connection method	Second
current type	alternating current
Shell color	white
Cable color	Black

Electrical parameters
Rated current	16A/32A, 1 phase/3 phase
Rated voltage	250V/480V
Power pin number	5 (L1, L2, L3, N, PE)
Signal pin number	2 (PP, CP)
Signal pin current	2A
Insulation resistance	≥5MΩ

environmental conditions
ambient temperature ( Serving)	-30℃--50℃
ambient temperature (storage)	-40℃--80℃
Entrance protection	IP54

Mechanical behavior
Insertion and removal time	>10000 times
Insertion and extraction force	45N~100N
withstand impact	Can withstand a fall from a height of 1 meter or a crushing pressure of 2 tons by a car

main material
Plug material		Reinforced thermoplastic, UL94V-0
building materials		Reinforced thermoplastic, UL94V-0
Bottle cap material		polyurethane

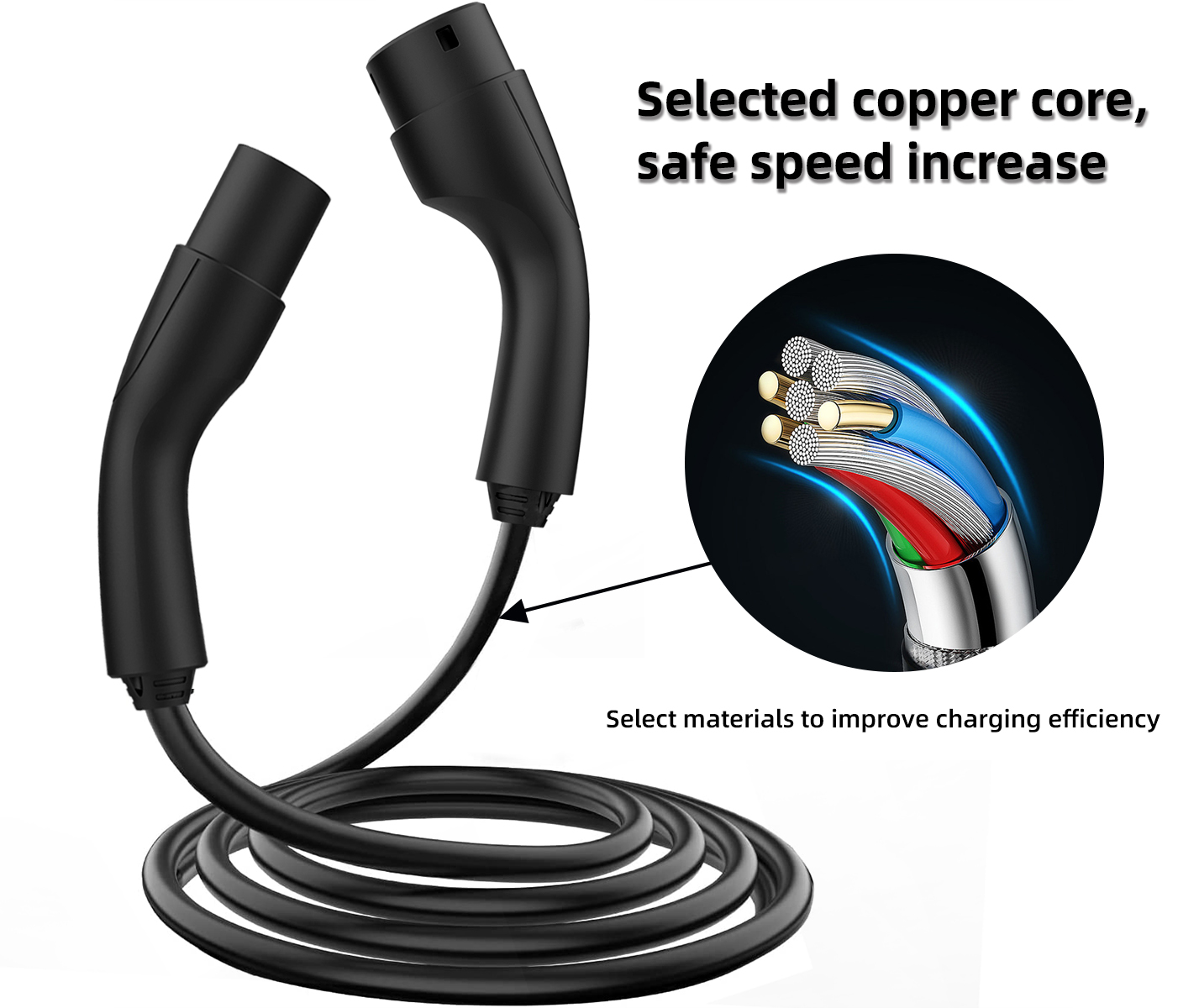

Pin material		Copper alloy, silver plated
Cable configuration
Three-phase 32A		56mm²+10.5mm²
Cable type		flat cable
Cable material		thermoplastic polyurethane
