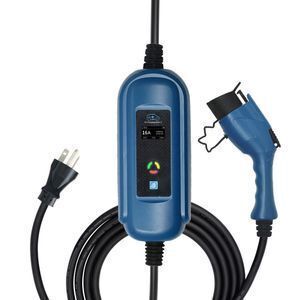

Electric Car 16A 32A Mode2 EVSE Charging Box Level 2 Portable EV Charger Cable Type 1 Type 2 to schuko Plug

Product details
Single package size:35X35X11 cm;IP:67;
Rated Current:16A/ 32A, 8~32A Customized;Charging Standard:level 2/MODE2;
Package Preview:;Place of Origin:Henan China;
Model Number:Level 2;Certificate:CE, TUV,;
Operating Voltage:100~450V AC;Packaging Detail:1. EV Plug, Power Plug and control box should be bubble wrapped separately , then overall packed by bubble bag. 2. Storage bag packed, then packed in standard exporting carton.;
Operating Temperature:-30 ℃ ~+ 50 ℃;flame retardant grade:UL94V-0;
Socket Stardard:EU/AU/UK/US;Single gross weight:2.7 KG;
Product name:Portable electric car charger;Keyword:Portable car charger;
Brand Name:ISIGMA;Selling Units:Single item;

Special Needs can be accepted, click here for more!



PRODUCTS DETAILS

 |  PRODUCTS DETAILS  |

 Working Temperature:  –30℃ ~ 55℃
 Thermo plastic(insulator inflammability) :  UL94V-0
 IP degree:  IP54
 Shell:  Thermoplastic,flame retardant grade UL94V-0
 Connector Pin:  Copper alloy, silver plating+thermoplastic on the top
 Cable:  Inner copper with TPE/TPU +5m(or customized)
Insulation Resistance: >1000MΩ(DC500V)
Terminal Temperature Rise:  <50K
Withstand Voltage:  2000V
Contact Resistance:  0.5mΩ Max
Mechanical Life(no load plug in/out) :  >10000 Times
Mating and Un-mating Force:  45N < F < 100N
Impact of external Force:  1M drop and 2T Vehicle Run Over Pressure

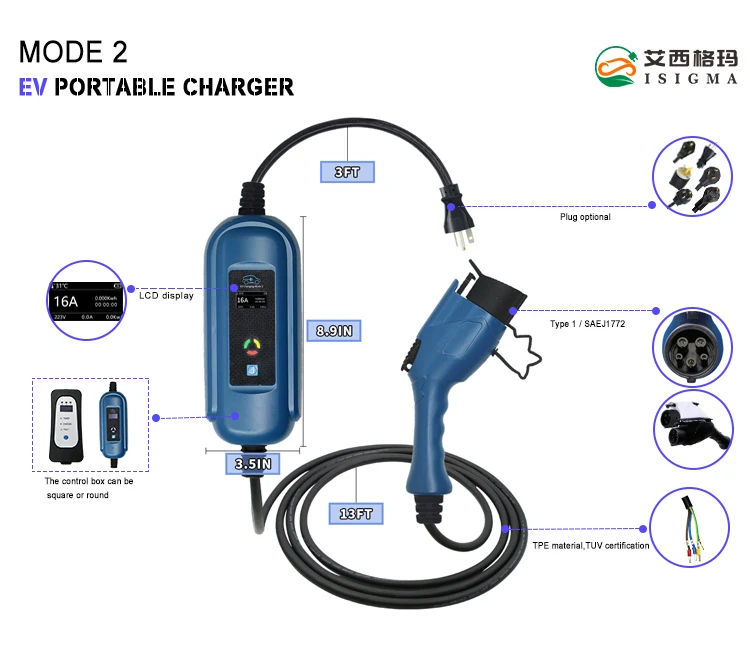

SAE J1772 or Type 1 Adjustable EV Portable Charger

Meet SAE J1772 (Type 1 EV Plug) US standard
Meet SAE J1772 (Type 1 EV Connector) US standard
EV Cable length: 3m, 5m, 8m, 10m or customized
Color of EV Charging Cord: Blue, Green, Black or customized
Type 1 Connector Adjustable Car Charger SAE J1772 EV Plug



PRODUCT ANALYSIS TES

 |  PRODUCT ANALYSIS TEST  |

To extend the life of the charger, please note the following points:

1.Don't submerge the ev charging box in water.

2.Don't step on, fold or knot the cable.

3.Don't drop the EV charging box or place a heavy object on it.

4.Don't place the charging cable near high temperature object when charging.

5.Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C. 5.Power-supply side input cable should  be at least 3*2.5mm (recommended 3*4mm), with a standard 16A scoket. It is suggested taht the power distribution is done by the professionals.

6.Don't put fingers into the charging connector when the power plug is still connecting to the power.

7.Don't use this ev charging box when the cable is damaged.

8.The ev charging box is only for ev charging using.

9.Don't use this device with an extension cord or adaptor.

Learn More about Product Guarantee & Maintenance!

FACTORY INTRODUCTION

|  FACTORY INTRODUCTION  |

Henan sigma technology co., ltd. is mainly produce all kinds of EV components, including all kind of EV plugs , EV sockets ,EV extension cables , EV charging stations, EV Mini MSD,EV high voltage connectors and cables. All of our products have TUV, CE ,UL , and CQC approval
