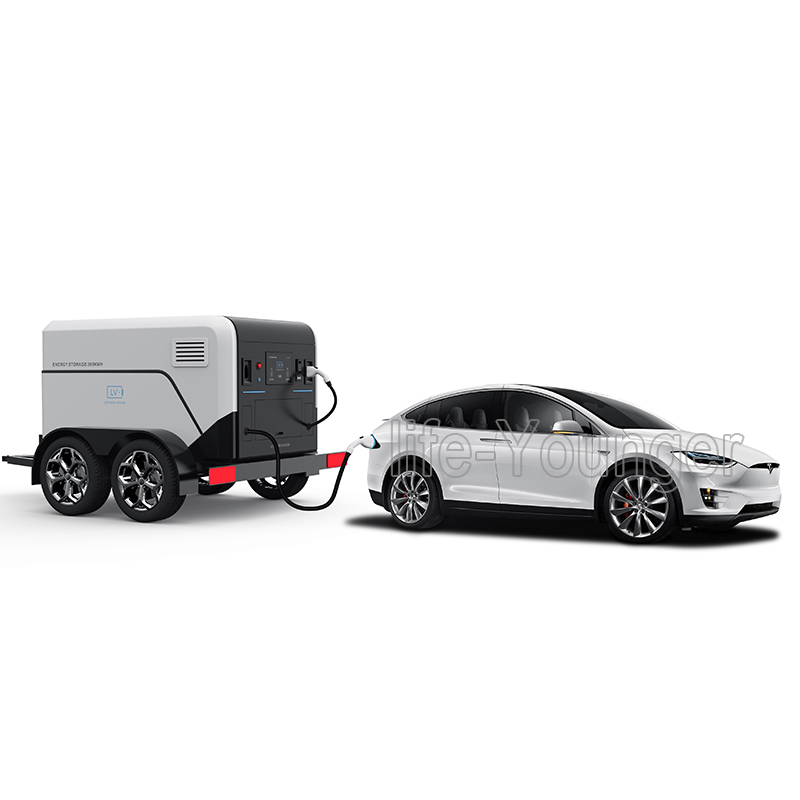

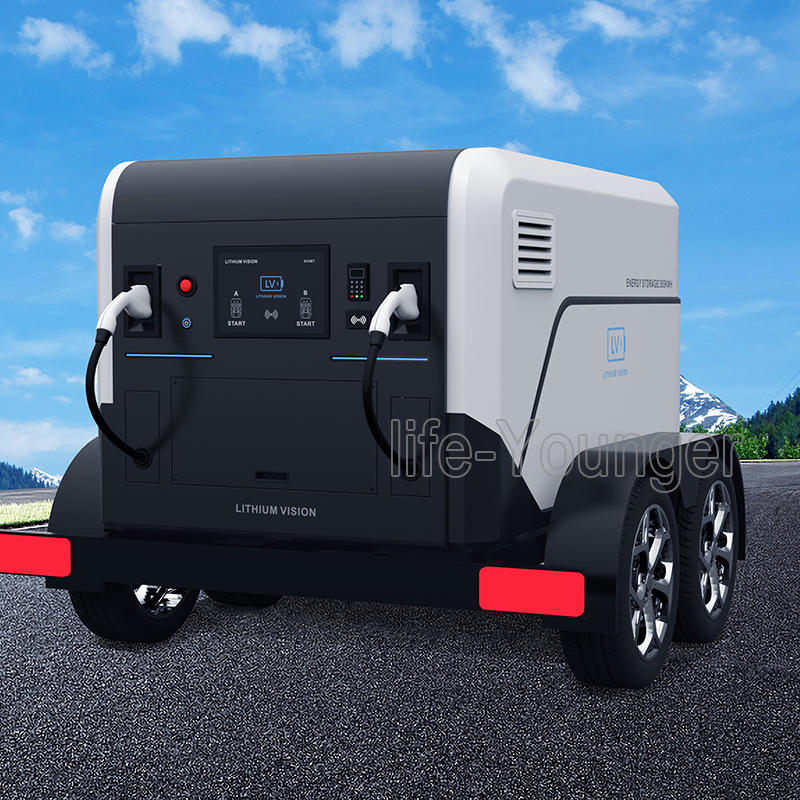

403kWh Energy Storage System CCS Free Grid CHAdeMO 200kW Dc Fast Charging Ev Charging Solutions EV Mobile Charger
- 203515.00 2 - 4 pieces
- 199485.00 5 - 9 pieces
- 193037.00 10 - 19 pieces
- 183768.00 >=20 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Interface standard: | China Classification Society CHADEMO | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| Cycle life: | ≥80%, after 5000 cycles | port: | Shenzhen |
| Input/Output AC: | 230/415VAC, 64A, 3P | Input voltage: | DC200~1000V |
| Origin: | Huizhou | BMS communication protocol: | RS232/485/CAN |
| Charging time (H): | 2 hours (0.33 degrees Celsius) | Q: | 652.8V |
| Output 1 (DC): | CCS1/CCS2/CHAdeMO DC100KW | Output Power: | 403 kWh/200 kW |
| aspect: | 2285*1500*1500mm | weight: | 2700 kg |
| Output 2 (DC): | CCS1/CCS2/CHAdeMO DC100KW | Input (DC): | CCS1/CCS2/CHAdeMO DC100KW |
| Supply capacity: | 10000 pieces per day |
Product Description
detailed drawing
Product parameters
Nominal voltage (V) | 652.8V | ||
Typical capacity (AH) | 618AH | ||
Weight (kg) | 2700 kg | ||
Charging termination voltage ( V ) | 652.8V±0.5V | ||
Discharge termination voltage ( V ) | 540V | ||
Maximum DC input power (W) | 5600 | ||
Charging time(H) | 2H(0.33C) | ||
Standard Fee | Charge to 652V CC/CV at 0.33C | ||
fast charging method | Charge at 1C to 540V CC/CV | ||
Maximum continuous charging current (A) | 309A(0.5C) | ||
Maximum charging current (A) | 618A(1C) | ||
Maximum discharge current (A) | 618A(1C) | ||
Maximum pulse discharge current (A) | 1120A≤1s | ||
Standard charge and discharge current (A) | 123A(0.2C) | ||
aspect | 2285*1500*1500mm | ||
cycle life | ≥80%, after 5000 cycles | ||
cooling method | air cooled | ||
I/O AC | 230/415VAC, 64A, 3P | ||
Input (DC) | CCS1/CCS2/CHAdeMO DC100KW | ||
Output 1 (DC) | CCS1/CCS2/CHAdeMO DC100KW | ||
Output 2 (DC) | CCS1/CCS2/CHAdeMO DC100KW | ||
touch | For more models, please feel free to contact us with your requirements. | ||
