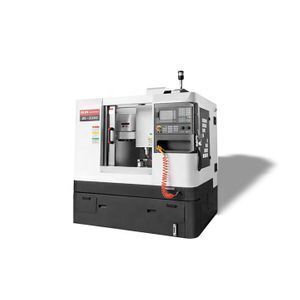

Small 3 axis CNC 5 axis Vertical Mini Metal VMC Milling Machine 4 axis Machining Center with tool changer price for sale BL-S360

Supplier: Ningbo Blin Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Yelena Huang
Price: $16000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Certification:	SE ISO;
Max. tool dia:	80/120mm(full/vicinal empty);	Warranty:	1 YEAR;
Range of Spindle Speed(r.p.m):	100 - 8000 r.p.m;	Packaging Detail:	Plywood Case(LCL); Wooden/steel Pallet(FCL);
Table Travel (X) (mm):	360;	Supply Ability:	500 Unit/Units per Year;
Table Size (mm):	700*260;	Rapid Feed Speed(m/min):	24;
Spindle Taper:	BT30;	Max. tool length:	200mm;
No. of Spindles:	Single;	T slot:	3/14/90mm;
Table Travel (Y) (mm):	200;	Spindle type:	BT30;
Voltage:	380/220/415;	Payment Terms:	L/C,T/T,Western Union;
Min. Time of Tool Change(s):	2;	Port:	Ningbo;
Dimension(LWH):	156012001850mm;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
CNC controller:	Siemens/Syntec;	Feed Speed(mm/min):	1000 - 10000 mm/min;
Max. tool weight:	7kg;	Type:	Vertical;
Number of Axes:	3;	Tool Magazine Capacity:	12;
Max. Table Load(kg):	200;	Brand Name:	BLIN;
X/Y/Z feeding motor torque:	3.5/3.5/3.5Nm;	Repeatability (X/Y/Z) (mm):	0.01;
Spindle Motor Power(kW):	3.7;	Distance from spindle center to column:	280mm;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Trading company;	Table Travel (Z) (mm):	450;
Condition:	New;	Guideway:	linear guideway;
CNC Control System:	Siemens;	Distance from spindle nose to table face:	110-560mm;
Key Selling Points:	Competitive Price;	Positioning Accuracy (mm):	0.02 mm;
Weight (T):	1.5 T;

Standard configuration:

SIEMENS 808D Advanced CNC controller
Spindle servo motor&driver
X/Y/Z axes servo motor&driver
12T Umbrellal type tool magazine
Optional configuration:
4th axes

5th axes

Main parts list:

Parts	Brand
Ball screw	TAIWAN HIWIN/PMI
Linear guideway	TAIWAN HIWIN/PMI
Spindle unit	TAIWAN KENTURN
Spindle driver&motor	CHINA Top-CTB
Tool magazine	TAIWAN SANJET
Air-oil cylinder	TAIWAN
Pneumatic parts	TAIWAN AIRTAC
Main electric parts	FRANCE SCHNEIDER
Working lamp	CHINA LED
Lubrication pump	Joint-venture
