99% Pure Advanced Copper Wire Crusher Cable Recycling Equipment Waste Metal Granulator Machine

Supplier: Wanrooe Machinery Co., Ltd. (Zhangjiagang)
Region: Jiangsu, China
Contact: Mr Anthony Xia
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Customer's Requirement;	Raw material:	Scrap Copper Wire;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union;
Port:	Shanghai;	Packaging Detail:	Film Wrapping And Wooden Case for Electric Cable Wire Recycling Small Copper Cable Granulator for Sale;
Crusher Power:	15-45kw;	Marketing Type:	New Product 2020;
After-sales Service Provided:	Online support,Video technical support;	Brand Name:	wanrooe;
Machinery Test Report:	Provided;	Name:	Wire Cable Granulator Machine;
Applicable Industries:	Manufacturing Plant;	Pulse Dust Removing Device Powe:	5.5;
Machine Type:	Hydraulic Scrap Shears;	Vibration Separator Power:	3-7kw;
Capacity:	200kg-1000kg;	Supply Ability:	500.0 Set/Sets per Year;
Warranty:	12months,1 YEAR;	Warranty of core components:	1 YEAR;
After Warranty Service:	Video technical support,Online support;	Showroom Location:	Indonesia,Pakistan;
Feeding Blower Power:	3kw;	Core Components:	Engine,Motor;
Application:	Cable Recycling;	Key Selling Points:	Automatic;
Place of Origin:	Jiangsu China;	Video outgoing-inspection:	Provided;
Local Service Location:	Indonesia,Pakistan;

Product Description

Advanced Copper Wire Crusher 99% Pure Cable Recycling Equipment 500kg/h Waste Metal Granulator Machine/scrap

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

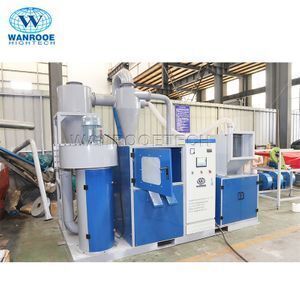

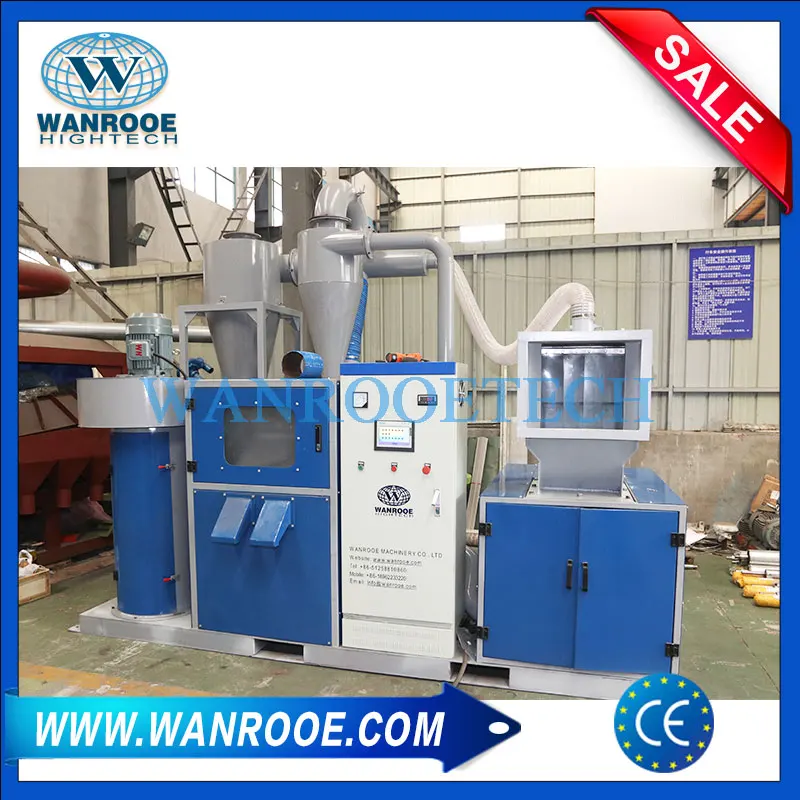

PNCR copper cable granulator adopts advanced design, rational structure and reliable operation. The characteristics of the production line can not only deal with thick wires which the normal crusher can process, but also the very thin wire has good separation effect. The present production line by feeding conveyor belt, heavy duty crushing machine, feeding blower, vibrating screen, pulse dust collector, hydraulic Station and electrical control cabinet and other components.
The waste cables or wires will become plastic pellets and copper particles after been crushed. The mixed will jump and move ahead like wave type on the vibrating screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles, plastic pellets and mixture from different outlet areas.
Each step is controlled by the PLC program, started and stopped by one button. The operation interface video display the working condition of the important parts, and intelligent display the equipment failure.The max. diameter of scrap cable is 60mm. It is easy to operation and maintenance, the separation purity can reach 99% with single copper core of diameter ≥0.2mm and the input capacity around 300-500 kg/hr.

Model	Crusher Power(Kw)	Feeding Blower Power(Kw)	Vibration Separator Power(Kw)	Pulse Dust Removing Device Power(Kw)
PNCR-300	15	3	3	5.5
PNCR-400	37	3	5.86	5.5
PNCR-500	45	3	7	5.5
