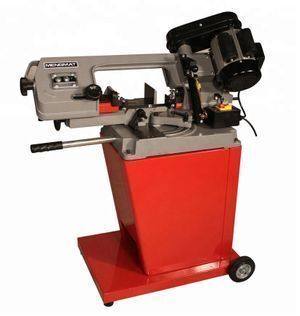

G4012 small metal cutting band saw machine

Supplier: Yangzhou Triple Harvest Power Tools Co., Ltd.
Region: Jiangsu, China
Contact: Mr leo li
Price: $191.00 / >=100 cartons
Min. Order: 100 cartons

Click here to contact

Product details

Rectangular:	100x150mm;	After Warranty Service:	Spare parts;
Blade No-load speed:	3 speed, 23, 33, 56m/min;	Condition:	New;
Applicable Industries:	Home Use;	Core Components:	Motor;
Marketing Type:	Ordinary Product;	Video outgoing-inspection:	Provided;
Motor:	120V~230V;	Round:	125mm;
Saw Body Packing Size:	942x442x542mm;	Length x Width:	1640*13mm;
keywords:	metal band saw;	Place of Origin:	Jiangsu China;
Name:	metal band saw;	Showroom Location:	None;
Brand Name:	MENGMAT/THM;	Packaging Detail:	Export standard carton;
Warranty of core components:	2 years;	Key Selling Points:	Easy to Operate;
Local Service Location:	None;	Weight (KG):	60;
Warranty:	1 Year;	Motor No-load speed:	1450rpm;
Machine Type:	Band Saw Machine;	Certification:	GS/CE CSA;
Machinery Test Report:	Provided;	Power (kW):	0.55;

G4012small metal cutting band saw machine

Product Description

Specifications for this item:

Model No. G40121

Motor: 120V~230V~/50Hz~60Hz 3/4Hp
Motor No-load speed: 1450rpm
Blade No-load speed: 3 speed, 90, 130, 210FPM
Blade Size:
LengthXWidth: 64-1/2"X1/2" (1640X13mm)
TPI: 14
Cutting Capacity:
Rectangular @ 0 degree : 4"X6" (100X150mm)
Rectangular @ 45 degree R: 3-3/4"X3" (95X76mm)
Rectangular @ 60 degree L: 2"X2-3/16" (50X56mm)
Round @ 0 degree: 5" (125mm)
Round @ 45 degree R: 3-3/4" (95mm)
Round @ 60 degree L: 2" (50mm)
Angle Cuts: Right 45 - Left 60 Degree
Packing Size:
Saw Body: 942x442x548mm
Stand: 642x442x245mm
Gross/Net Weight:
Saw Body: 68/65kgs
Stand: 18/16kgs
Loading Amount:
100pcs/200cartons/20'
200pcs/400cartons40'

Features:

>> You'll be able to quickly and accurately cut workpieces up to 4 in. x 6 in. (rectangle), 4-1/2 in. (round)

using the band saw's adjustable horizontal and vertical positions. Choose from 3 speeds to cut everything

from brass and aluminum to rugged alloy and tool steels. Includes a 1/2 in. x 0.025 in. x 64-1/2 in. blade (14 TPI), plus a heavy-duty stand with two wheels.

>> Three speeds to cut everything from brass and aluminum to rugged alloy and tool steels
>> Gravity feed cutting pressure adjustment in horizontal position
>> Comes with blade and heavy duty stand
>> 0-55° left miter cuts on horizontal
>> Two-position rocker switch with safety lock-off
>> Overweight Item subject to 14.95 additional Freight Charge.

>> Got CE/CSA approvals

>> We can produce the machine according to your requirements about brand and color.

Customer Sample:

Different models

Features:

Metal Cutting Band Saw Items List
Item	Motor	Power(W)	Length x With	TPI	Cutting Capacity
G4012	230v-50Hz	3/4 HP	64-1/2" X 1/2"	14	Rectangular @ 0degree 4''×6''(100×150mm) Rectangular @ 45degree R 3-3/4''×3''(95×76mm) Rectangular @ 60degree L 2''×2-3/16''(50×56mm) Round @ 0degree 5''(125mm) Round @ 45degree R 3-3/4''(95mm) Round @ 60degree L 2''(50mm) Angle Cuts Right 45-Left 60 Degree
G40121	120v-60Hz 230v-50Hz	3/4~1 HP	64-1/2" X 1/2"	14	Rectangular 4''×6''(100×150mm) Round 5''(125mm) Angle Cuts 0°-45°
