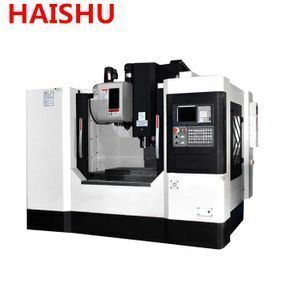

3 Axis Vertical CNC Turning Machining Vs Milling Center Lathe Machine Price Vmc850

Supplier: Taian Haishu Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Chen Shir ley
Price: $17000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Not Available;	Port:	QINGDAO;
Certification:	CE, ISO,TUV;	Precision:	High Precision;
Showroom Location:	None;	Condition:	New;
No. of Spindles:	Single;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Energy & Mining,metal machining;
Warranty:	12 Months,1 YEAR;	Marketing Type:	New Product 2020;
Brand Name:	Haishu;	After-sales Service Provided:	Online support,Video technical support;
Weight (T):	5.6 T;	Table Size (mm):	1000*500;
Number of Axes:	5;	Payment Terms:	L/C,T/T,Western Union,3 Axis Vertical CNC Turning Machining Center Lathe Machine Price VMC850;
Local Service Location:	None;	Video outgoing-inspection:	Provided;
Color:	Customized;	CNC Control System:	can be customized;
After Warranty Service:	Video technical support,Online support;	Max. Table Load(kg):	500 kg;
Spindle Motor Power(kW):	7.5Kw;	Positioning Accuracy (mm):	0.07 mm;
Function:	Milling Metal;	Type:	Vertical;
Cutting speed:	1-8000 mm/min;	Table Travel (Z) (mm):	500 mm;
Control system:	SIEMENS GSK FANUC (optional);	Packaging Detail:	3 Axis Vertical CNC Turning Machining Center Lathe Machine Price VMC850 with standard wooden case;
Table Travel (Y) (mm):	500 mm;	Tool Magazine Capacity:	16,12,24;
Spindle Taper:	BT40;	Core Components:	Motor;
Voltage:	customized;	Name:	3 Axis Vertical CNC Turning Machining Center Lathe Machine Price;
Supply Ability:	50.0 Set/Sets per Month 3 Axis Vertical CNC Turning Machining Center Lathe Machine Price;	Workbench size:	1000*500;
Warranty of core components:	1 YEAR;	Feed Speed(mm/min):	1 - 8000 mm/min;
Workbench maximum load:	600kg;	Range of Spindle Speed(r.p.m):	1 - 8000 r.p.m;
Key Selling Points:	Multifunctional;	Repeatability (X/Y/Z) (mm):	0.005;
Table Travel (X) (mm):	800 mm;	Place of Origin:	Shandong China;
Keyword:	3 Axis Vertical CNC Turning Machining Center Lathe Machine Price;	Min. Time of Tool Change(s):	0.5;

3 Axis Vertical CNC Turning Machining Vs Milling Center Lathe Machine Price Vmc850

Model/Specifications	VMC550	VMC600	VMC650	VMC850
X-axis travel	550mm	600mm	650mm	800 mm
Y-axis travel	350mm	380mm	400mm	500 mm
Z axis travel	500mm	450mm	500mm	500mm
Table size	800*350mm	800*300mm	900*400mm	1000*500 mm
Maximum load of table	300kg	300kg	400kg	500 kg
T-solt	318125mm	31680mm	318130mm	518100mm
Spindle taper	BT40	BT40	BT40	BT40
Spindle maximum speed	8000rpm	8000rpm	8000rpm	8000rpm
Rapid traverse	20/20/20m/min	20/20/20m/min	48/48/36m/min	48/48/48m/min
Spindle power	5.5kw	5.5kw	5.5/7.5kw	7.5Kw/11kw
Cutting speed	1-8000 mm/min	1-8000 mm/min	1-8000 mm/min	1-8000 mm/min
Spindle nose to table	100-600mm	100-550mm	120/620mm	130-630mm
Spindle center to Surface rail	419mm	383mm	481	525mm
Max tool diameter	90mm	90mm	90mm	78/120mm
Positioning accuracy	±0.08mm	±0.08mm	±0.08mm	±0.0075 mm
Repeat accuracy	±0.05mm	±0.05mm	±0.05mm	±0.005 mm
Machine weight	3000kg	2600kg	4000kg	5600kg
Machine Size(mm)	202018702170	187016002000	230019502450	2600 23002800
