Used wire steel nail making machine price factory China common automatic iron nail making machine

Supplier: Xuchang Zhenda Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Elva Jin
Price: $2600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	2 Years;	Name:	nail making machine;
Port:	Qingdao;	Delivery Detail:	10days after deposit payment;
Place of Origin:	Henan China (Mainland);	Diameter of nails:	0.9mm-5.5mm;
Color:	Green or blue or as required;	Nail making speed:	450pcs/min;
Model Number:	Z94-1C,2C,3C,4C,5.5C, nail making machine;	Supply Ability:	300 Set/Sets per Month nail making machine;
Motor power:	1.5kw-11kw;	After-sales Service Provided:	Engineers available to service machinery overseas;
Length of nails:	9mm-150mm;	Brand Name:	Zhenda;
Payment Terms:	T/T,Western Union,MoneyGram;	Packaging Detail:	export sea worthy package;

Used wire steel nail making machine price factory China common automatic iron nail making machine

Features of nail making machine

1) This nail machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.

2) Especially it can make high quality You Mao nails which used for high speed welding machine and nail gun, and it can also make nails for other uses.

3) Each nail making machine include related nail moulds, nail knife and punch pin ect spare parts.

Automatic iron nail making machine : to get different sizes of nails

Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5.5C
Min dia. of nails	0.9mm	1.2mm	1.8mm	2.8mm	3.8mm
Max dia. of nails	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm
Min length of nails	9mm	16mm	30mm	50mm	80mm
Max length of nails	25mm	50mm	75mm	100mm	150mm
Speed	450pcs/min	380pcs/min	320pcs/min	260pcs/min	220pcs/min
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw
Weight	1.2T	1.45T	1.8T	2T	2.3T
Size (LWH)	1.51.31.2m	1.71.31.4m	21.41.4m	2.21.61.65m	2.51.61.5m

Product Description

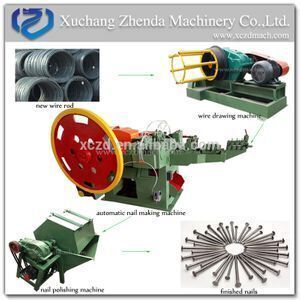

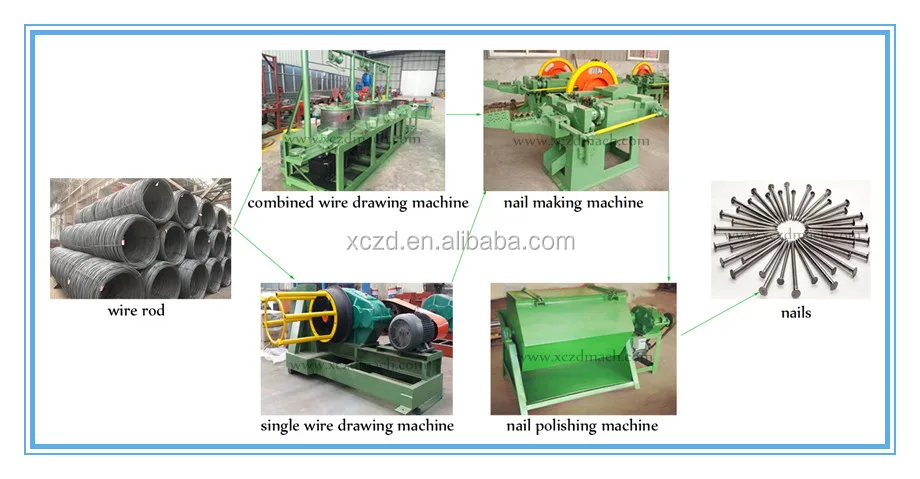

The flow working chart: Wire rod --- wire drawing --- nail making --- nail polishing --- finished nails.

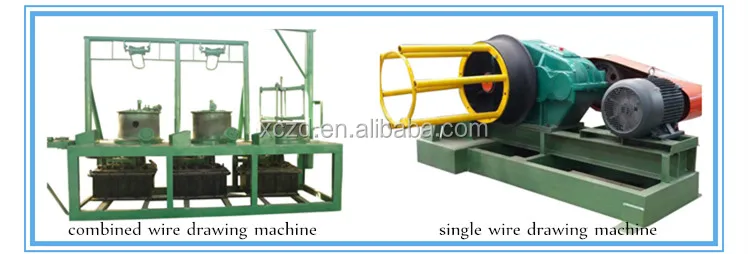

First step--wire drawing machine: to get the fine diameter wire rod that we need.

Combined wire drawing machine	LS1-3-500
Max inlet diameter	6.5mm
Min outlet diameter	2.0mm
Motor Power	11kw/15kw/set

------------------------------------------------------------------------------------------------

Single wire drawing machine	WLS-500	WLS-650
Max inlet diameter	6.5mm	12mm
Min outlet diameter	2.0mm	2.0mm
Motor Power	11kw	18.5kw

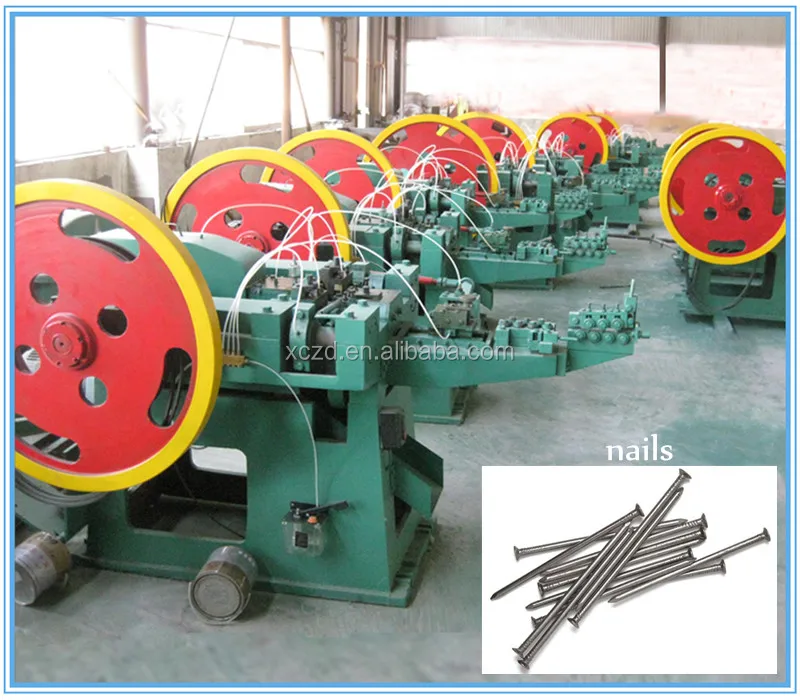

Second step -- automatic iron nail making machine

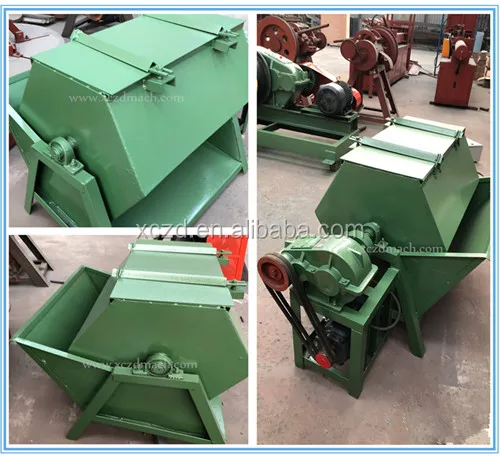

Third step-- nail polishing machine: to let the nails brighter, smoother and anti-rust.

Model	SD-400	SD-1000
Capacity	400kg	1000kg
Motor power	2.2kw	7.5kw
Size(LWH)	1.640.981m	21.51.4m

Forth step-- package and delivery: wooden boxes or customized.

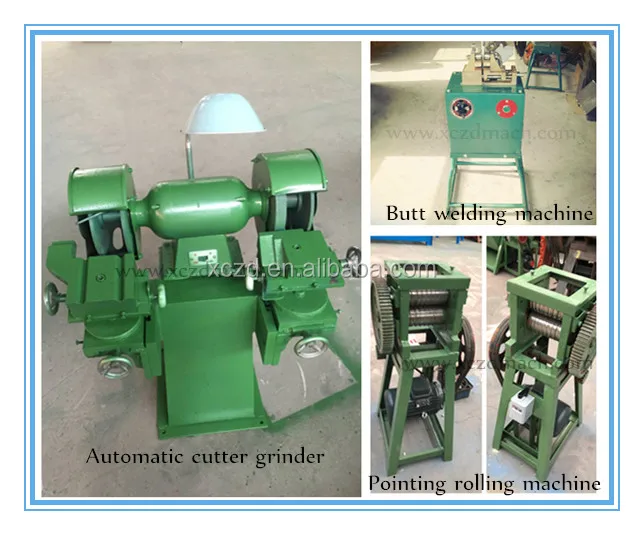

Auxiliary Equipment of automatic iron nail making machine

1.Automatic cutter grinder

Model	ZM6-6
Diameter of grinding wheel	200mm
Motor power	0.75kw
Size(LWH)	0.80.51m
Weight	200kg
Function	use this machine to sharpen the cutter of nail machine

2.Pointing rolling machine

Model	Pointing rolling machine
Rolling pointed range	2mm-8mm
Motor power	2.2kw
Size(LWH)	1.20.61.0m
Weight	80kg
Function	used to sharp the head of the wire rod

3.Butt welding machine

Model	Butt welding machine
Butt weld range	∅3mm-∅8mm
Voltage	380v/220v/50HZ
Weight	50kg
Function	used to weld two wires coil together

Our Services:
1.Guarantee : 2 years after commissioning. iron wire nail production machine
2.Installation : Engineers available to service machinery overseas.
3.Wherever you are, we have experience, knowledge, and skills to meet your needs and satisfy your requirements.

Our Advantage:

1.20 years of experience.

2.Welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines.
