Telescopic portable mini truck crane

Supplier: Shandong Jndo Hoisting Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Daisy su
Price: $160.00 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Hydraulic Valve Brand:	Huade;	Brand Name:	JNDO;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Place of Origin:	Hebei China;
Rated Lifting Moment:	1.2TON.M;	Span:	360;
Certification:	CE;	Supply Ability:	300 Piece/Pieces per Month;
Warranty:	1 YEAR;	Crane type:	Small Mobile Mini Crane;
Condition:	New;	After-sales Service Provided:	Video technical support,Online support,Engineers available to service machinery overseas;
Feature:	Truck Crane,Truck Crane;	Steel tube:	Seamless pipe;
Power:	12v 24v electric winch;	Hook Capacity:	1000kg;
Max. Lifting Height:	1940mm;	Application:	Construction;
Payment Terms:	L/C,T/T,Western Union;	Electric Winch:	3000LBS;
Hydraulic Cylinder Brand:	Bosch Rexroth;	Packaging Detail:	Timber box or carton box 1piece/box or as you like;
Port:	Tianjin port;	UNIQUE SELLING POINT:	High load Moment;
Rated Loading Capacity:	500KG;	Hydraulic Pump Brand:	KYB;
Engine Brand:	FPT;	Product name:	Vehicle mounted crane;

Product Description

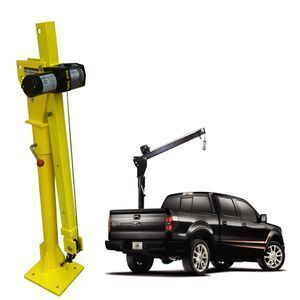

Telescopic portable mini truck crane

1.Compact design ,folds away when not in use.
2.Easily installed,on site or by a vehicle body builder.
3.Conforms to CE safety standard.
4.Unique technology of quick lifting.
5.Larger capacity than normal shop cranes at 3 position.
6.360ºswivel operating handle.
7.Forged heavy duty swivel hook.
8.125% overload testing before delivery.

We are also electric winch manufacturer ,we can assure the quality of

electric winch and the steel structure!!!

Product Parameter

MODEL:	JN-HP1000
Single line Lifting Capacity(maximum)	500kg
Double-line Lifting Capacity(maximum)	800kg
Lifting Height Max.Std.(base to hook)	1940mm
Reach Max.(from center of rotation)	1490mm
Rotation (continuous) with Brake	360° Manual
Lifting Cable	4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m—1pc(for double-line lifting)
Line speed with No Load	3.6m/min single line
Power Requirements	12V DC 125 amps
Switch Cable	4.2m
Mounting Base	250x250x18mms
Mounting Bolt Hole Pattern	170x170mms
Finish	Powder Coated
Gross Weight of Crane (LBS)	69KGS
Color available	As you like
