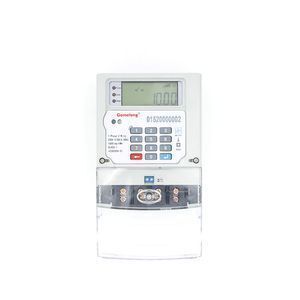

2020 New Single Phase STS Keypad Smart Prepaid Electric Energy Meter

Supplier: Zhejiang Gomelong Meter Co., Ltd.
Region: Zhejiang, China
Contact: Mr Qianjun Tu
Price: $12.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T;	Name:	split single phase sts keypad prepaid energy meter;
Standard:	STS;	Brand Name:	GOMELONG;
Supply Ability:	100000 Piece/Pieces per Month;	Model Number:	DDSY5558;
Certificate:	ISO9001;	OEM:	Allowed;
Color:	Silver;	Accuracy Class:	1.0;
Measuring Energy Range:	0-999999.99 KWh;	Packaging Detail:	Export carton with inner foam box;
Display:	LCD;	Operating Temperature:	-20-50℃;
Frequency:	50HZ/60HZ;	Place of Origin:	Zhejiang China;
Type:	STS Prepayment Meter;	Phase:	Single Phase;
Rated current:	5(60)A;	Output Voltage:	110V,220V,230V,240V;
Display Type:	Analog and Digital;	Port:	Ningbo;
Dimensions:	169mm110mm62.5mm;

MASS_APP4_1159_BEGIN

MASS_APP4_1159_END

2018 New Split Single Phase STS Keypad AC Smart Prepaid Electric Energy Meter

Product Description

Application

DDSY5558 is a new type of keypad prepayment meter. Customer purchases energy by the vending network to get a serial number (named as "TOKEN"), and then use the keypad of meter to enter the TOKEN. The credit data will be entered into the meter after the TOKEN being accepted. The TOKEN contains 20 digits and is encrypted. For the purchasing method reason, the meter also named as "Keypad meter”. It complies with open standard STS.

Feature

Payment by 20 digits token

Alarm when low energy/overload/fraud.

With RS485 and optical communication functions for reading meter and setting parameters.

Open terminal cover detection alarm.

Technical parameters

Specification		DDSY5558	DTSY5558
Accuracy	Active	Class1.0	Class1.0
Accuracy	Reactive		Optional
Voltage	Rated	220/230/240V	3x57.7/100V,3x220/380V 3x230/400V,3x240/415V
	Range	0.9Un~1.1Un	0.9Un~1.1Un
	Limit	0.8Un~1.2Un	0.8Un~1.2Un
Frequency		50/60Hz	50/60Hz
Current	Range	5(20)A ,5(25)A ,5(30)A,5(32)A	3x1.5(6), 3x 5(30), 3x 10(50), 3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A
Starting Current		0.4%Ib	0.4%Ib
Constant	Active	1600imp/kWh	400imp/kWh
Constant	Reactive	\	\
Display	Type	LCD	LCD
Display	Digit	6+2	6+2
Power Consumption	Voltage Circuit	≤0.8W,10VA	≤0.8W,10VA
Power Consumption	Current Circuit	≤4VA	≤4VA
Communication Interface	Interface	Optical/Infrared/RS485 (Optional)	Optical/Infrared/RS485 (Optional)
Communication Interface	Protocol	MODBUS,DLT/645,IEC1107	MODBUS,DLT/645,IEC1107
Temperature	Working Temperature	-45℃~+55℃	-45℃~+55℃
Temperature	Storage Temperature	-40℃~+70℃	-40℃~+70℃
Humidity		≤90%	≤90%
Protection		IP54	IP54
