MachineryOffers

Fully Automatic Sludge Dewatering Press Better than Sludge Filter Press

Product details
Material:SS304;Port:Shanghai;
Certification:ISO 9000, CE;Product Name:Sludge Filter Press;
Supply Ability:300 Unit/Units per Year sludge filter press;Brand origin:Japan;
Power(W):0.8;Packaging Detail:Wooden Package of sludge filter press;
Dimension(L*W*H):3255*985*1600;Certificate:ISO 9000, CE Certificate;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Automatic Grade:Automatic;
Condition:New;Place of Origin:Jiangsu China (Mainland);
Voltage:380V;Application:sludge dewatering;
Weight:910 kg;Production Capacity:100%;
Electrical components:Schneider;Service life:>15 years;
After-sales Service Provided:Engineers available to service machinery overseas;Motor:Bauer, Nissei, Sew;
Warranty:2 Years;Brand Name:BENENV;
Warranty:2 Years;Operate:24 Hours Automatic;

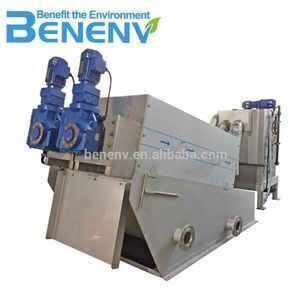

Fully Automatic Sludge Dewatering Press Better than Sludge Filter Press

Product Description

Multi-Disk Screw Press( Hereinafter referred as MDS ) belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.

Specifications of MDS sewage and sludge machine
Main Parameters
Capacity
DS-kg/hr
1-600 DS-kg/hr
Size
mm
L4564*W2100*H2156
Power
kW
6.0
Motor
Gearbox
Brand
SEW, BAUER,
SUMITOMO, NISSEI
Protection
Certificates & IP
UL,CE, Water
proof(IP65) CCC
Screw Shaft
Treatment
SUS316L, Tungsten
carbide coating
Control Cabinet
Electrical Components
Brand
Schneider, Omron,
Siemens
Solenoid Valve
Brand
US,ASCO
Spray System
Brand
Japan Origin, H.IKEUCHI



Product Display

Model Selection

Model
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)

Dissolved Air Flotation Sludge
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
Sludge Concentration (TS)

0.2%

1%

2%

5%

3%
MDS 051
~0.4 kg-DS/hr
(0.2 m³/hr)
~0.6 kg-DS/hr
(0.06 m³/hr)
~2 kg-DS/hr
(0.1 m³/hr)
~4 kg-DS/hr
(0.08 m³/hr)
~5 kg-DS/hr
(0.16 m³/hr)
MDS 101
~2 kg-DS/hr
(1.0 m³/hr)
~3 kg-DS/hr
(0.3 m³/hr)
~5 kg-DS/hr
(0.25 m³/hr)
~10 kg-DS/hr
(0.2 m³/hr)
~13 kg-DS/hr
(0.43 m³/hr)
MDS 131
~4 kg-DS/hr
(2.0 m³/hr)
~6 kg-DS/hr
(0.6 m³/hr)
~10 kg-DS/hr
(0.5 m³/hr)
~20 kg-DS/hr
(0.4 m³/hr)
~26 kg-DS/hr
(0.87 m³/hr)
MDS 132
~8 kg-DS/hr
(4.0 m³/hr)
~12 kg-DS/hr
(1.2 m³/hr)
~20 kg-DS/hr
(1.0 m³/hr)
~40 kg-DS/hr
(0.8 m³/hr)
~52 kg-DS/hr
(1.73 m³/hr)
MDS 202
~16 kg-DS/hr
(8.0 m³/hr)
~24 kg-DS/hr
(2.4 m³/hr)
~40 kg-DS/hr
(2.0 m³/hr)
~80 kg-DS/hr
(1.6 m³/hr)
~104 kg-DS/hr
(3.47 m³/hr)
MDS 311
~20 kg-DS/hr
(10 m³/hr)
~30 kg-DS/hr
(3.0 m³/hr)
~50 kg-DS/hr
(2.5 m³/hr)
~100 kg-DS/hr
(2.0 m³/hr)
~130 kg-DS/hr
(4.33 m³/hr)
MDS 312
~40 kg-DS/hr
(20 m³/hr)
~60 kg-DS/hr
(6.0 m³/hr)
~100 kg-DS/hr
(5.0 m³/hr)
~200 kg-DS/hr
(4.0 m³/hr)
~260 kg-DS/hr
(8.67 m³/hr)
MDS 313
~60 kg-DS/hr
(30 m³/hr)
~90 kg-DS/hr
(9.0 m³/hr)
~150 kg-DS/hr
(7.5 m³/hr)
~300 kg-DS/hr
(6.0 m³/hr)
~390 kg-DS/hr
(13 m³/hr)
MDS 412
~80 kg-DS/hr
(40 m³/hr)
~120 kg-DS/hr
(12 m³/hr)
~200 kg-DS/hr
(10 m³/hr)
~400 kg-DS/hr
(8.0 m³/hr)
~520 kg-DS/hr
(17.3 m³/hr)
MDS 413
~120 kg-DS/hr
(60 m³/hr)
~180 kg-DS/hr
(18 m³/hr)
~300 kg-DS/hr
(15 m³/hr)
~600 kg-DS/hr
(12 m³/hr)
~780 kg-DS/hr
(26 m³/hr)



Dewater Principle

The initial section of dewatering drum is the Thickening Zone, where the solid-liquid separating process takes place and where the filtrate will also be discharged. The pitch of the screw and the gaps between the rings decrease at the end of dewatering drum, hence increasing its internal pressure. At the end, the End Plate further increases the pressure, so as to discharge dry sludge cake.



Cooperation Case

Application in Various Industry

Exclusive pre-concentration design, applicable for sludge of concentration from 2000mg/L to 50000mg/L. Besides, Due to the innovation of the structure design, it is highly suitable to oil sludge



Related Products

Company Information

Jiangsu Benenv Environmental Protection Technology Co., Ltd. is an environmental protection company, specialized in mechanisms, environmental engineering and other related science. With research center in Japan, we have factory and office in China. Benenv specializes in the design, engineering, supply and installation of domestic and commercial water, waste water and sewage treatment systems, gas pollution control, and other environmental engineering products. Our company possesses complete sets of process design, equipment supply, constructions, and technology innovation. Overall, we are highly qualified in delivering turnkey and BOT projects for any industry. We have abundant experience in the treatment of industrial, domestic and commercial hazard wastewater. Benenv is staffed with local and overseas professionals with more than 15 years of acquired technical expertise and experience, offering various technologies and allied services. Our company works closely with the top 10 universities and scientific institutes to keep our cutting-edge technology and transform science and technology into productivity. Our company also works with the government, and is authorized as the liaison office of Yixing government to perform technology cooperation with foreign countries.



Certifications



FAQ

Q: What’s MDS Sludge Dewatering?

A: MDS Sludge Dewatering machine has been used in Japan market for over 30 years, is a mature technology. It was developed in our Japanese research center (Japan Benenv Co., Ltd.). We have Japanese engineers for technical support and quality control, other Chinese manufacturers they are just copy-cats from this Japanese technology, they are not original and lack of experience on this technology.

Q: What type of sludge is MDS Sludge Dewatering applicable to?

A: It is applicable to various kinds of sludge such as waste activated sludge, dissolved-air floatation sludge and so forth. The thickening mechanism of this equipment enables dewater not only highly-concentrated sludge but also low-concentrated sludge with ease.

Q: What’s the application scope of MDS Sludge Dewatering?

A: It is widely applied in Municipal water and wastewater treatment plants, Agricultural/fishery community wastewater treatment plants, Industrial waste treatment plants, Food/beverage production plants, Dairy farming/Meat processing plants, Chemicals manufacturing plants, Machinery manufacturing/Metal processing plants, Paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc..

Q: What’s the material of MDS Sludge Dewatering?

A: It is Stainless Steel, we choose SUS304H, SUS316L, etc, some key parts we import from Japan, we also have our own workshop in Japan for production.

Q: What’s the equipment used together with MDS Sludge Dewatering?

A: Sludge pump, polymer dosing pump, washing pump, air compressor.

Q: Why aren’t your rings carbonized like other companies’?

A: Carbonization is to harden and strengthen the metal surface. Our rings material is called 304 hardened steel (SUS304H), which is directly treated by our steel supplier, this hardened stainless steel can make the hardness of carbonized steel up to HV380-420 in China. Most of other manufacturers can reach to only HV250. This hardened steel SUS304H is 3 times expensive than normal SUS304, so other manufacturers they prefer to choose the normal material and need to increase the thickness of rings in order to increase the hardness, actually, increase the thickness of rings will affect the dewatering effects.

Q: How to choose the right model?

A: Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
