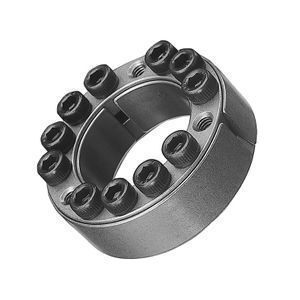

Locking Assembly Clamping Element Locking Device Shaft Power Lock

Click here to contact

Product details

Finish:	Polished;	Brand Name:	Chinabase or OEM;
Product Keywords:	Shaft Power Lock;	Place of Origin:	Zhejiang China;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Printing Shops,Construction works ,Energy & Mining;	Payment Terms:	L/C,D/P,T/T;
Name:	power lock;	Material:	Steel;
Application:	Power transmissions part;	Other name:	Locking Assembly;
Packaging Detail:	Neutral packing;	Product name:	Locking Devices;
Supply Ability:	100000 Piece/Pieces per Month;	Keyword:	Expansion Bushing;
MOQ:	10pcs;	Port:	Shanghai;
Meterial:	65,65Mn,55Cr2,60Cr2,etc;

Locking Assembly / Power Lock / Clamping Element / Locking Device

1. Easy to install and disassemble;

2. Good exchangeability;

3. Heavy load born by joint with Keyless Locking Devices;

4. Long lifetime and high efficient transmitting;

5. While running under overload, Keyless Locking Devices can protect the equipment from breakdown.

The power lock is a keyless shaft-hub locking device for connecting hubs and shafts with high torque transmission.

It is unaffected by vibration or torsion load reversal.

Material	65,65Mn,55Cr2,60Cr2,etc
Inner diameter	20mm~150mm
Outer diameter	47mm~200mm
Torque range	0.3kN.m~28.5kN.m
Type	Locking Assembles
Weight	0.29kg-6.7kg
Application	Printing machinery,
Useage	replace single keywey and spline
Product Keywords	power clock,power-lock,power lock
