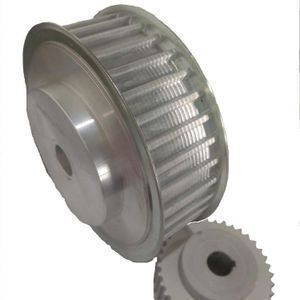

Timing pulley T2.5 T5 T10 AT5 AT10

Product details
Packaging Detail:Neutral packing;Process:Maching;
Belt Width:4-50mm;Material:AL /SS/ STEEL,C45,Stainless,AL, Nylon, Delrin;
Product name:Timing Belt Pulley;Surface treatment:black oxide/zinc plate/carburizing;
Standard:ISO GB DIN;Timing Pulley Type:T2.5 T5 T10 AT5 AT10;
Color:black/steel/white;Place of Origin:Zhejiang China;
Port:Shanghai/Ningbo;Tolerance:DIN 5-DIN 10;
Package Preview:;Bore:Customized Bore;
Payment Terms:L/C,D/A,D/P,T/T;Brand Name:chinabase;
Supply Ability:2000.0 Piece/Pieces per Day;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,Retail,Construction works ,Energy & Mining;
Type:Timing pulley;



Product Description






T2.5 (Pitch=2.5mm) for belt width 6mm
Part Code Number of Teeth Type Dp De Df Dm F L Flange Code
12T2.5-16 12 1F 9.6 9 13 13 9 16 501
14T2.5-16 14 1F 11.2 10.6 15 15 9 16 502
15T2.5-16 15 1F 12 11.4 15 15 9 16 502
16T2.5-16 16 1F 12.8 12.2 16 16 9 16 503
18T2.5-16 18 6F 14.4 13.8 17.5 10 10 16 504
19T2.5-16 19 6F 15.2 14.6 20 10 10 16 505
20T2.5-16 20 6F 16 15.4 20 11 10 16 505
22T2.5-16 22 6F 16.6 17 22 11 10 16 512
24T2.5-16 24 6F 19.15 18.55 22 12 10 16 512
25T2.5-16 25 6F 19.95 19.35 23 13 10 16 508
26T2.5-16 26 6F 20.75 20.15 25 14 10 16 507
28T2.5-16 28 6F 22.35 21.75 25 14 10 16 507
30T2.5-16 30 6F 23.95 23.35 28 16 10 16 508
32T2.5-16 32 6F 25.95 24.95 32 16 10 16 509
36T2.5-16 36 6F 28.75 28.1 36 20 10 16 510
40T2.5-16 40 6F 31.9 31.3 38 22 10 16 511
44T2.5-16 44 6F 35.1 34.5 42 24 10 16 513
48T2.5-16 48 6 38.3 37.7   26 10 16
60T2.5-16 60 6 47.85 47.25   34 10 16





+
T5 (Pitch=5mm) for belt width 10mm /16mm/25mm
Part Code Number of Teeth Type Dp De Df Dm Flange Code
10T5 10 6F 16.05 15.05 19.5 8 3
12T5 12 6F 19.25 18.25 23 11 1
14T5 14 6F 22.45 21.45 25 13 2
15T5 15 6F 24.05 23.05 28 16 4
16T5 16 6F 25.6 24.6 32 18 5
18T5 18 6F 28.8 27.8 32 10 6
19T5 19 6F 30.4 29.4 36 20 8
20T5 20 6F 32 31 36 22 8
22T5 22 6F 35.15 34.15 38 23 9
24T5 24 6F 38.4 37.4 42 24 13
25T5 25 6F 39.95 38.95 44 26 12
26T5 26 6F 41.6 40.6 44 26 12
27T5 27 6F 43.2 42.2 48 30 11
28T5 28 6F 44.75 43.75 48 32 11
30T5 30 6F 47.95 46.95 51 34 16
32T5 32 6F 51.1 50.1 54 38 18
36T5 36 6F 57.45 56.45 64 38 23
40T5 40 6F 63.85 62.85 67 40 24
42T5 42 6F 67 66 70 40 26
44T5 44 6 70.2 69.2   45
48T5 48 6 76.55 75.55   50
60T5 60 6 95.65 94.65   65



+
T10 (Pitch=10mm) for belt width 16mm/25mm/32mm/50mm
Part Code Number of Teeth Type Dp De Df Dm Flange Code
12T10 6F 12 38.35 36.35 42 28 13
14T10 6F 14 44.7 42.7 48 32 11
15T10 6F 15 47.9 45.9 51 32 16
16T10 6F 16 51.1 49.1 54 35 18
18T10 6F 18 57.45 55.45 60 40 21
19T10 6F 19 60.65 58.65 66 44 24
20T10 6F 20 63.8 61.8 66 46 24
22T10 6F 22 70.2 68.2 75 52 27
24T10 6F 24 76.55 74.55 83 58 29
25T10 6F 25 79.55 77.75 83 60 29
26T10 6F 26 82.9 80.9 87 60 31
27T10 6F 27 86.1 84.1 91 60 32
28T10 6F 28 89.25 87.25 93 60 33
30T10 6F 30 95.65 93.65 97 60 35
32T10 6F 32 102 100 106 65 38
36T10 6F 36 114.75 112.75 119 70 43
40T10 6F 40 127.45 125.45 131 80 47
44T10 6 44 140.2 138.2   88
48T10 6 48 152.95 150.95   95
60T10 6 60 191.15 189.1   110
