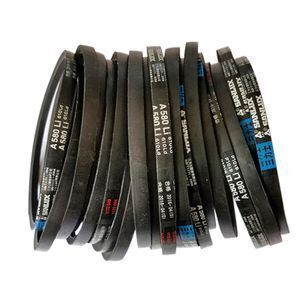

Industrial Rubber Belt Power Transmission V-Belt

Supplier: Hangzhou Chinabase Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Leo Dai
Price: $0.50 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	Shanghai or Ningbo Port;	Place of Origin:	Zhejiang China;
Payment Terms:	L/C,T/T;	Package Preview:	;
Product name:	Belt;	Application:	Power Transmission Belt;
Usage:	MACHINE TRANSMISION;	Shipping:	as your requirement;
Feature:	High Flexibility;	MOQ:	5PCS;
Brand Name:	OEM;	Packaging Detail:	as your requirement , Neutral Packing,our Standards,etc;
Packing:	STANDARD NEUTRAL PACKING;	Name:	V-belt;
Type:	V-BELT;	Material:	Rubber;
Model type:	RA/RB/RC/RD/9J/15J/25J/R3V/R5V/R8V;	Supply Ability:	20000 Piece/Pieces per Week;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Construction works ,Energy & Mining;	Other name:	Rubber Synchronous Belt;
Standard or Nonstandard:	Nonstandard;

Industrial Rubber Belt Power Transmission V-Belt

Product Description

Industrial synchronous belt

Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.

They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.

Material: Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)

Type:

Two kinds of industrial synchronous belt: one-sided tooth industrial rubber synchronous belt and double-sided tooth industrial rubber synchronous belt.

Two kinds of single-sided tooth industrial rubber synchronous belt: T tooth industrial rubber synchronous belt and Arc tooth industrial rubber synchronous belt.

Two kinds of double sided tooth timing belt DA and DB.

The Dimension and Profile:

T tooth industrial rubber synchronous belt

Type	Pitch Pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)	Angle β°
MXL	2.032	0.51	1.14	40
XXL	3.175	0.76	1.52	50
XL	5.080	1.27	2.30	50
L	9.525	1.91	3.60	40
H	12.70	2.29	4.30	40
XH	22.225	6.35	11.20	40
XXH	31.750	9.53	15.70	40
T2.5	2.5	0.7	1.30	40
T5	5	1.20	2.20	40
T10	10	2.50	4.50	40
T20	20	5.00	8.00	40
AT5	5	1.20	2.70	50
AT10	10	2.50	5.00	50
AT20	20	5.00	8.00	50

Arc tooth industrial rubber synchronous belt

H ARC TOOTH S ARC TOOTH R ARC TOOTH

Type	Pitch Pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)	Angle β°
HTD	2M	2	0.75	1.36
	3M	3	1.17	2.4
	5M	5	2.06	3.8
	8M	8	3.36	6.00
	14M	14	6.02	10.00
	20M	20	8.4	13.20
STPD/STS	S2M	2	0.76	1.36
	S3M	3	1.14	2.20
	S4.5M	4.5	1.71	2.81
	S5M	5	1.91	3.4
	S8M	8	3.05	5.3
	S14M	14	5.3	10.2
RPP/HPPD	2M	2	0.76	1.36
	3M	3	1.15	1.9
	5M	5	1.95	3.5
	8M	8	3.2	5.5
	14M	14	6.00	10

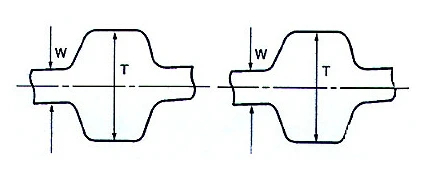

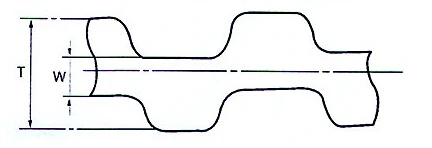

DA/DB-duplex synchronous belt

Type	W	T	Size	Pitch Length(mm)	Teeth No.
D-XL	0.508	3.05	196XL-1970XL	497.84-5003.8	98-985
D-L	0.762	4.58	203L-1988L	514.35-5048.25	54-530
D-H	1.372	5.95	670H-2500H	1701.8-6350	124-500
D-XH	2.794	15.49	700XH-2275XH	1778.00-5778.5	80-260
D-XXH	3.048	22.11	700XXH-2625XXH	1778.00-6667.5	56-210
D-T2.5	0.60	2.00	T2.5x500-T2.5x5000	500.00-5000.00	200-2000
D-T5	1.00	3.40	T5x500-T5x7000	500.00-7000.00	100-1400
D-T10	2.00	7.00	T10x500-T10x7050	500.00-7050.00	50-705
D-T20	3.00	13.00	T20x1700-T20x7000	1700.00-7000.00	85-350
D-AT10	2.00	7.00	AT10x500-AT10x7000	500.00-7000.00	50-700
DA-HTD-3M	0.760	3.10	501-3M-5010-3M	501.00-5010.00	167-1670
DA-HTD-5M	1.143	5.26	500-5M-7000-5M	500.00-7000.00	50-1400
DA-HTD-8M	1.372	8.17	512-8M-6880-8M	512-6880	64-860
DA-HTD-14M	2.80	14.84	1750-14M-6860-14M	1750-6860	125-490
DA-STS-8M	1.372	7.48	S8M-512-S8M-6880	512-6880	64-860

Size Information
If you can not find the same type from we showed here, please contact with us directly.

Classical V-belt	Y, K, M(Z), A, B, C, D, E
Narrow V-Belts	SPZ, SPA, SPB, SPC, 3V, 5V, 8V
Raw edge Narrow V-Belts	XPZ, XPA, XPB, XPC, 3VR, 5VR
Narrow Cogged V-Belts	XPZ, XPA, XPB, XPC, 3VX, 5VX
Raw edge Cogged V-Belts	AV10/FM, AV13/AX., AV22/CX
Banded V-Belts	A, B, C, D, 3V, 5V, 8V
Banded Cogged V-Belts	AX, BX, CX, 3VX, 5VX
Agricultural V-Belt	HI, HJ, HK, HL, HM
Variable Speed Belts	v
Double V-Belts	AA, BB, CC
V Ribbed Belts	PH, PJ, PK, PL, PM
Synchronous Belts/Timing Belts	MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD, STPD/STS, RPP/HPPD
