What is the new 6G model exactly and what frequency covers?

There are two models available for 6GHz support:

• RF Explorer 6G: This is a standard main unit, one-port RF Explorer with4850-6100MHz(4.85-6.1GHz) support, covering the most demanding 5.8GHz with excellent sensitivity. This model accepts any expansion board (such as RFEMWSUB3G or RFE24G) for extra frequency coverage.
• RF Explorer 6G Combo: This is the same as a RF Explorer 6G + RFEMWSUB3G, being a two port RF Explorer with15-2700MHz + 4850-6100MHzcoverage. This is the most advanced RF Explorer yet.

Note this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available. For signal generator and tracking please consider RF Explorer Signal Generator model RFE6GEN.

Frequency band: 15-2700 MHz and 4850-6100MHz

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

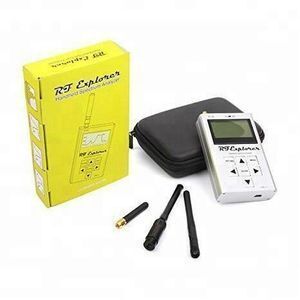

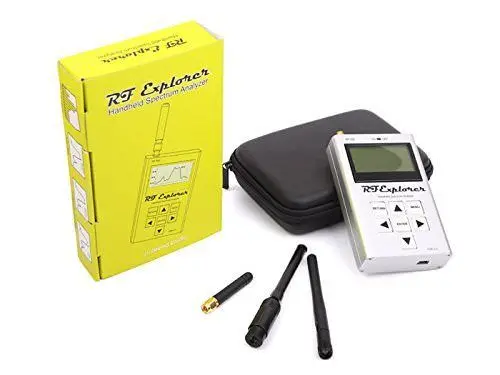

This model includes a 6G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and three antennas: a nice Nagoya NA773 wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

The combination of these two models offer coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

• Pocket size and light weight
• Solid aluminum metal case

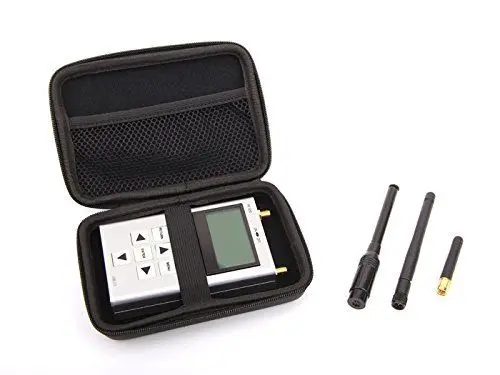

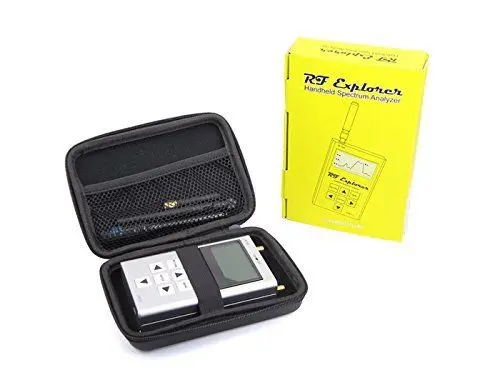

• Includes a transport EVA carry case for RF Explorer
• Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
• Lifetime free firmware upgrades available, open to community requested features
• High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
• Windows PC client Open Source
• Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
• Firmware: RF Explorer 6G Combo is delivered with upgraded firmware v1.12. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

• Frequency span:

• Left SMA port (6G): 2-600Mhz
• Right SMA port (WSUB3G): 112KHz - 600MHz

• Graphics LCD 128x64 pixels, great visibility outdoors

• PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

• Backlight for great indoor visibility

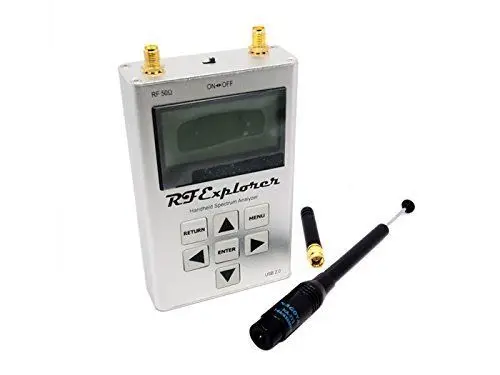

• 2 standard SMA 50 ohms Spectrum Analyzer connectors:

• Left SMA port (6G): 4850-6100MHz
• Right SMA port (WSUB3G): 15-2700 MHz

Amplitude resolution: 0.5dBm

Dynamic range:

• Left SMA port (6G): -105dBm to -15dBm
• Right SMA port (WSUB3G): -110dBm to -10dBm

• Absolute Max input power:

• Left SMA port (6G): +25dBm
• Right SMA port (WSUB3G): +30dBm

• Average noise level (typical): -105dBm

• Frequency stability and accuracy (typical):

• Left SMA port (6G): +-0.5ppm
• Right SMA port (WSUB3G): +-10ppm

• Amplitude stability and accuracy (typical):

• Left SMA port (6G): +-3dBm
• Right SMA port (WSUB3G): +-6dBm

• Frequency resolution: 1Khz

• Resolution bandwidth (RBW):

• Left SMA port (6G): automatic 58Khz to 812Khz
• Right SMA port (WSUB3G): automatic 3Khz to 600Khz

• Size: 113x70x25 mm

Support software:

seeedstudio.com/wiki/RF_Explorer_Software
