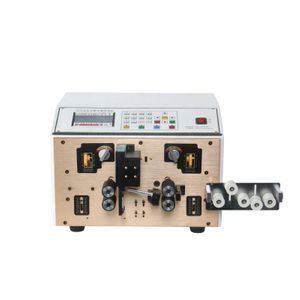

wire cutting and stripping machine HL-321

Supplier: Dongguan Hilong Machinery Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Liping Xin
Price: $500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Usage:	Stripping;	Brand Name:	Hilong;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Weight:	40 kg;
Packaging Detail:	CASE;	Package Preview:	https://sc02.alicdn.com/kf/HTB16iOJah_rK1RkHFqDq6yJAFXae.jpg_640x640.jpg;
Cutting length:	9999;	Workable Wire:	0.1-2.5mm2;
Model Number:	HL-321;	Function:	stripping;
Place of Origin:	Guangdong China;

Product Description

1.widely used ,workable wire PVC ,Teflon,Braided wire.
2.autimatic computer control.

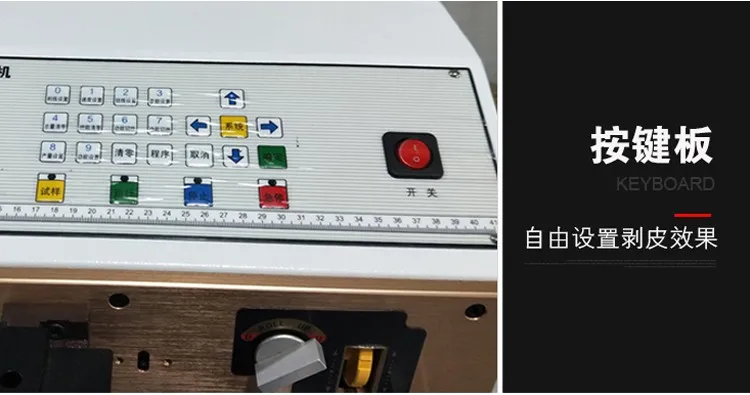

3.The machine adopts LCD display
4.microcomputer control.
5.hybrid motor drive,Multi-function setting.
6. Humanized stop function let you need to stop and emergency stop, without fuss
7.the best equipment for wire processing industry.
8. Surface mesh design, timely heat dissipation and prolong the service life
9.Diameter 7.2mm of wire accept Eight wheels drive, High speed : more than 1000 pcs per hour (wire length 500mm)

Main Features

Available Core Cross-Section Range: 0.1 – 2.5mm2

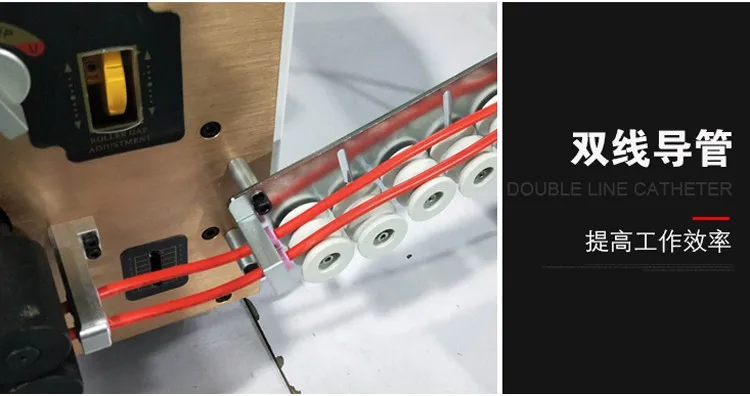

Conduit Diameter: Φ10mm
Cutting Length: 1 ~ 9999mm
Stripping Length: Head 0~50mm, End 0~35mm
Max. Middle Stripping Section: 11
Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3
Cutting Tolerance: ±(0.002×L) (L=Cutting Length)
Speed: 3000~8000pcs/hour
Display Way: English LCD dispaly

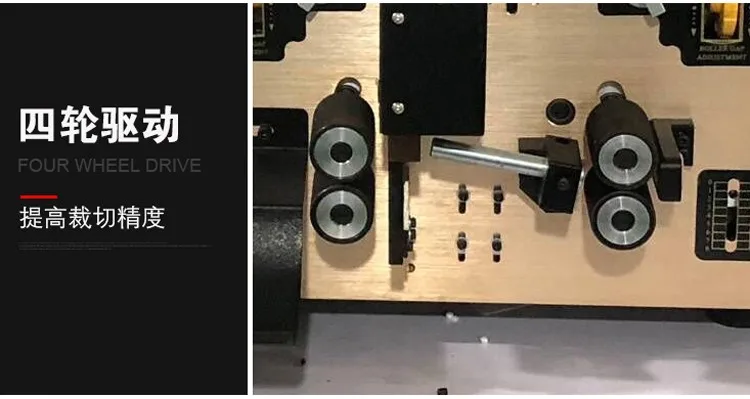

Drive Mode: 4 Drives

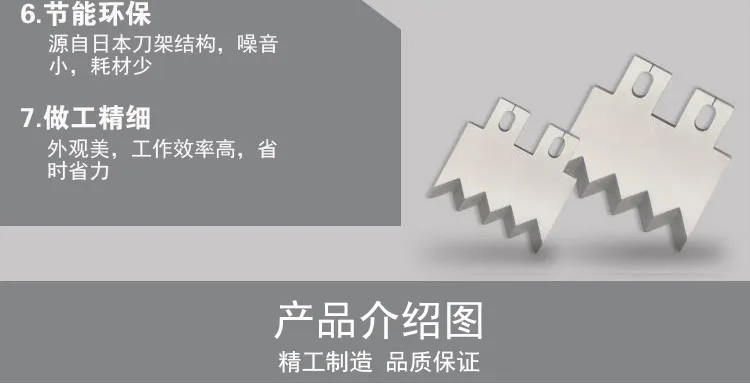

Blade Material: Hard tungsten steel
Appropriate Wire: PVC, Teflon, glass wire
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 220W

Certifications

Detailed Images

Main Features

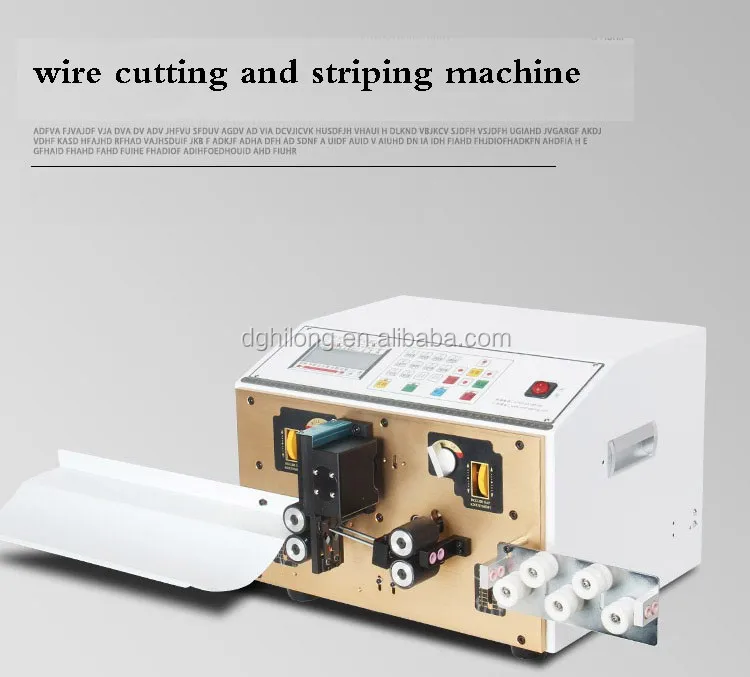

Name: wire cutting and striping machine
Brand: HILONG
Original: CHINA

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	40 (L) * 48 (W) * 28 (D)
Weight	28KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
