ET1090A 3.5 inches 5 digit cheaper bench lcr meter Products from Hangzhou Zhongchuang Electron Co., Ltd.

Product Details

Package Preview:	https://sc01.alicdn.com/kf/HTB1MMQ6cA5E3KVjSZFCq6zuzXXan.jpg_640x640.jpg;	Product name:	ET1090A 3.5 inches 5 digit bench lcr meter with resonable price;
Storage:	USB;	Packaging Detail:	All products are properly and carefully packaged to protect them from humidity, salt fog, and collisions during transportation.;
Measuring Frequency:	100Hz~10KHz;	Port:	Ningbo or Shanghai;
Supply Ability:	3000 Piece/Pieces per Month;	Payment Terms:	T/T,Western Union;
Brand Name:	East Tester;	Parameter:	Cp,Cs, Lp,Ls,Rp, Rs, G-B,D,Q;
Model Number:	ET1090A;	Place of Origin:	Zhejiang China;
Voltage Range:	0~2Vrms;

Product Description

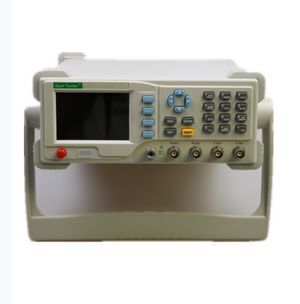

ET1090A 3.5 inches 5 digit bench lcr meter with resonable price

Basic information

The highest measuring frequency is 100kHz, and the stepping;
frequency is continuously adjustable at 1Hz;
Test level 10~2000 mV, 1 mV step continuously adjustable;
Supporting DC Resistance (DCR) and Electrolytic Capacitance Measurement;
Internal bias voltage output 10mV~1500mV;
3.5-inch TFT display, 5-bit display;

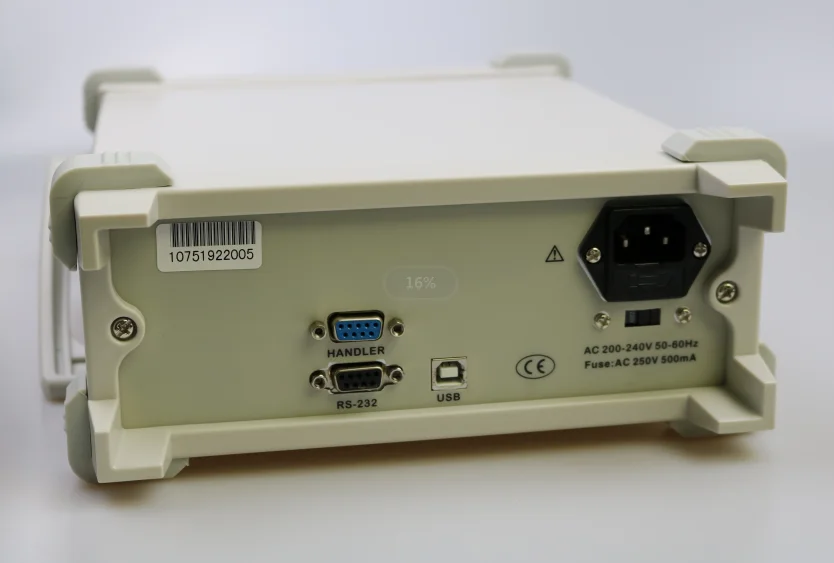

Communication:USB Device, RS232 (or 485), Handle, GPIB (optional),
USB Host (optional);
Data recording function (maximum, minimum, average);
Supporting SCPI Communication Protocol;
Provide system settings to configure Chinese or English, buzzer, screen brightness, etc;
The basic measurement accuracy is 0.2%;
Manual and automatic range;
With open circuit and short circuit calibration function;
Comparator sorting (5 gears), alarm function.

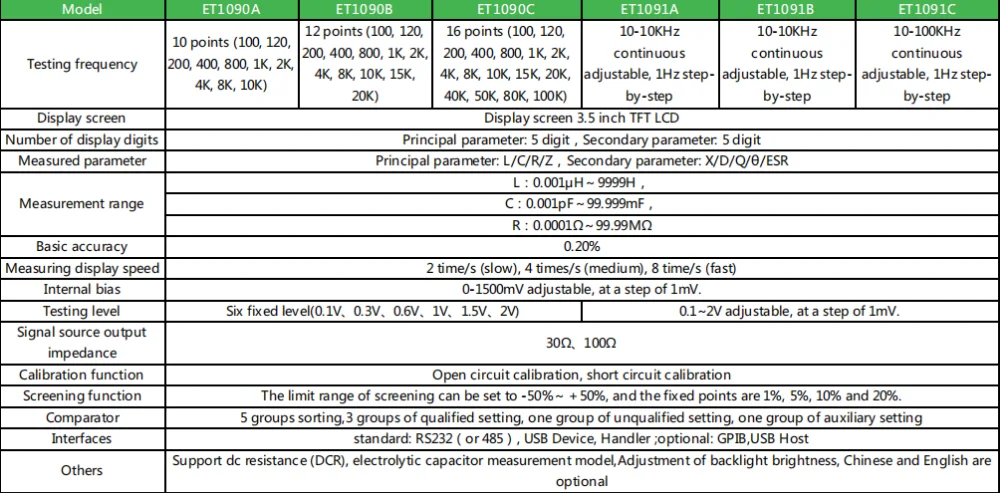

Technic Indicator :

Our company

ODM and OEM factory with R&D department since 2003

Trademark: EASTTESTER
Certificate: ISO9001, CE, ROHS

With 10 years of excellent quality, advanced services and competitive prices, zhongchuang electron has won numerous customers' trust and support,espeically the distributors and retailers .

Exhibition

Factory

Production Process

PCB (Printed circuit board) --soldering --Assembling -- Visual inspeciton --Testing --Packing --Shipping

We have devoted ourselves to the whole production including R&D, production, sales and after service with a professional and experienced R&D team and QC team.

Packing & Delivery

Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT
2. By Air: Delivery from the Shanghai airport to customers' destination city air port.
3. For large order, we can do FOB shanghai or ningbo price, CIF price as u asked.

Payment : Full payment before production as deposit

Warranty : 1 Year
