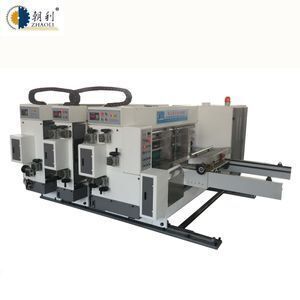

Carton Box Automatic Feeder Printer Slotter Machine / Small Carton Box Making Machine

Product details
Condition:New;Supply Ability:30 Set/Sets per Month;
Dimension:3600*2100*1700mm;After-sales Service Provided:Free spare parts,Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support;
Package Preview:https://sc01.alicdn.com/kf/Hc55c9a4d236a49dcbff7c3c5de36cb80c.jpg_640x640.jpg;Port:TianjinPort;
Packaging Detail:plastic film packaging and loading to the container and fixed;Brand Name:ZHAOLI;
Max slotter depth:150*50mm;Automatic grade:Full-Atuomatic;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Max Feeding size:1800*600mm;
Key Selling Points:High-accuracy;Warranty:1 YEAR;
Type:automatic lead edge feeding;Min Feeding size:450*50mm;
Speed:120 PCS/min;Voltage:220v/380v;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Applicable Industries:Garment Shops,Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Food Shop,Carton Box Making Machine;
Showroom Location:None;Local Service Location:None;

Carton Box Automatic Feeder Printer Slotter Machine / Small Carton Box Making Machine

Product Description



Function

This machine is manual operation and vacuum absorption auxiliary lead edge feeding system. It can slot, cut the corner, cut the extra side and press the lines of the corrugated cardboard. The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily. The phase adjustment of slotting part is planetary gear structure. The machine adopts 360°electric adjustment. The up and down slotting knives and creasing knives can move synchronously(use exclusive tool to adjust left and right). This small machine is easy to operate and repair easily which is specialized for slotting small boxes.

Main structure and features

1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt eccentric wheel adjust and left-right eccentric wheel, adjust the pressure synchronous

2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, can fit to every kinds paperboard, and sending paper stable and accurate.

3. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator(speed adjustable freely), adopt Jintiao frequency converter.

4. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.

Technology Parameter

Model

2000

Max machine speed

120 pieces/min

Max feeding size (L * W)

1800mmX600mm

Min feeding size (L * W)

450mmX170mm

Dimension (Length*Width*Height)

3600mmX2100mmX1700mm

 Weight

2500 KG

Packaging & Shipping



plastic film for main parts and whole machine, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements.



Our Services



1) All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance services and supply of parts and components at cost price.

2) The equipments will be delivered accompanied with detailed installation and operation manual and related information.

Company Information



Cangzhou Zhaoli Carton Machinery Co., Ltd was founded in 2015 , the predecessor is Cangzhou Baoli Carton Machinery CO.,LTD which was founded in 1996 . Our company continue the corrugated paperboard making machines, paperboard printing machine and carton box forming machine etc. Before , and develop the new small-but-excellent machines for small carton factories. Our company has “Zhaoli First Machine Producing Factory”, “Zhaoli Second Machine Assembly Factory” and “Cangzhou Zhaoli Import & Export Trade Co., LTD” .

FAQ



1.Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds
of carton equipments for 20 years.(with export license)


2.Q: Where is your factory located? How can I visit here?
A: Our factory is located in zhuwa industrial area south of Dongguang county, Cangzhou City,
Hebei province, China. It is about 2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up if you need, welcome to visit our factory.


3.Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipments.


4.Q: How does your factory do regarding quality controlling?
A: We have one year warranty for whole machine, not including easy-damage parts.





About the slotting and creasing machine details pictures



If  you are intersted in the slotter machine ,you  can contact with me on alibaba website .Thanks .
