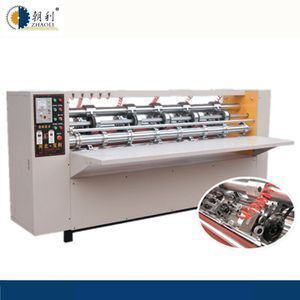

BFY thin blade slitter scorer machine slotter carton machine

Supplier: Cangzhou Zhaoli Carton Machinery Co., Ltd.
Region: Hebei, China
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	Corrugated cardboard slitter scorer machine;	Showroom Location:	None;
Single gross weight:	68 KG;	Selling Units:	Single item;
Application:	Carton Box Making Machine;	Automatic grade:	Automatic;
Single package size:	30X30X30 cm;	Warranty:	1 Year;
Voltage:	220V, 380V, 440V;	Package Type:	Wooden case, plastic packaging or according to your request;
Warranty:	1.5 years;	Condition:	New;
After-sales service provided:	Engineers;	Plate Type:	slitting board machine;
Place of origin:	Made in China;	Key Selling Points:	Easy to Operate;
After-sales Service Provided:	Free spare parts,Video technical support,Online support;	After Warranty Service:	Video technical support,Online support,Spare parts;
Brand Name:	ZHAOLI;	Power:	4.0 kw;
Applicable Industries:	carton box making machine;	Brand name:	ZHAOLI Brand;
Speed:	141 m/min;	Local Service Location:	None;

Corrugated cardboard Thin edge slitter scorer machine

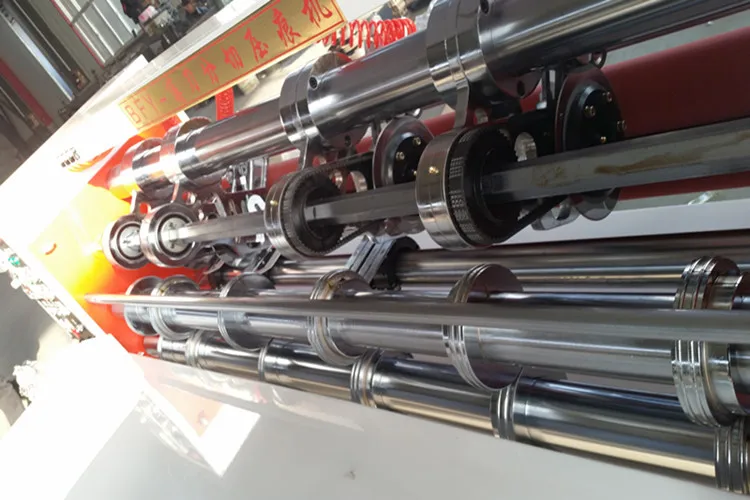

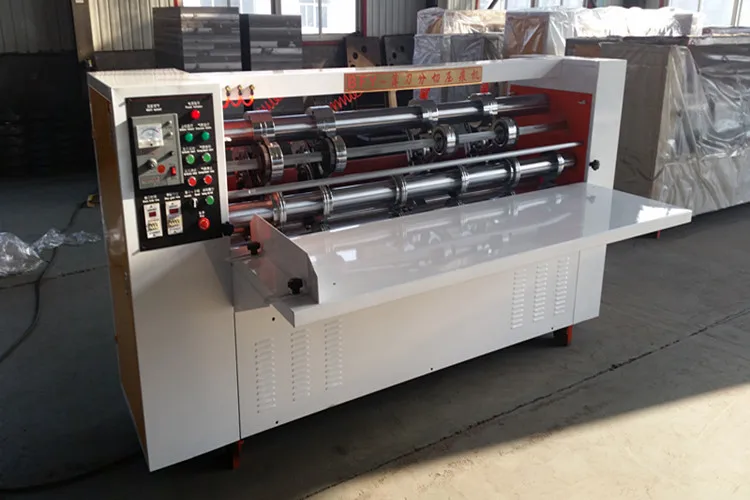

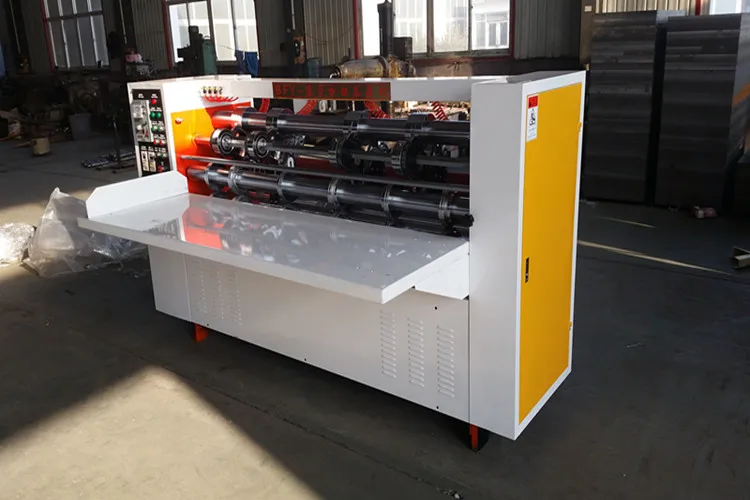

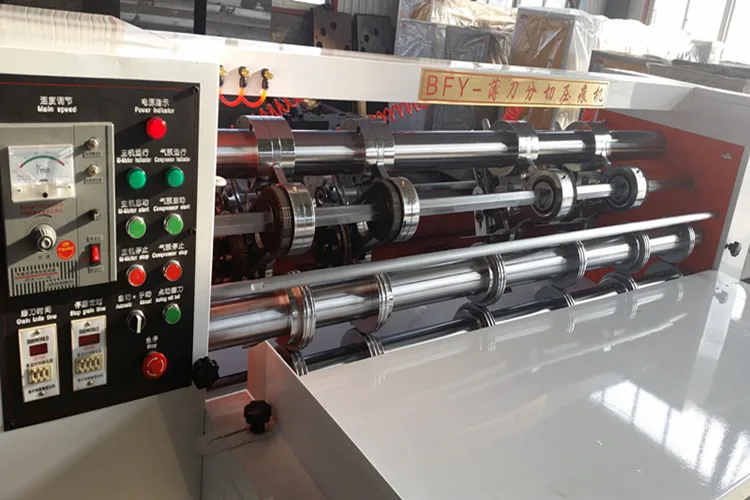

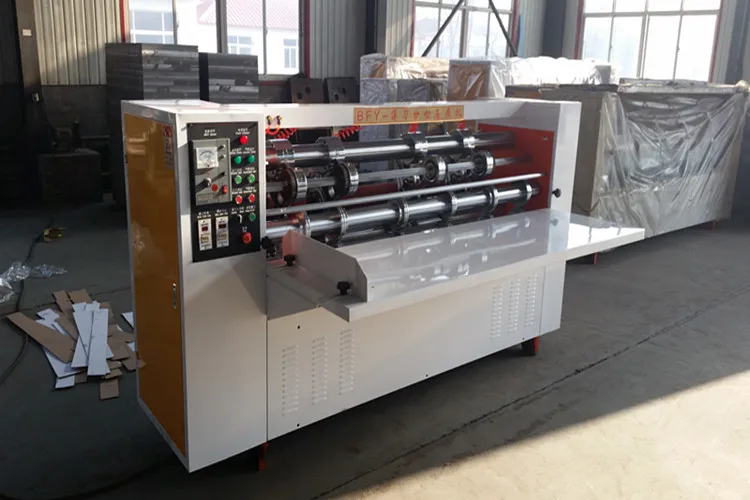

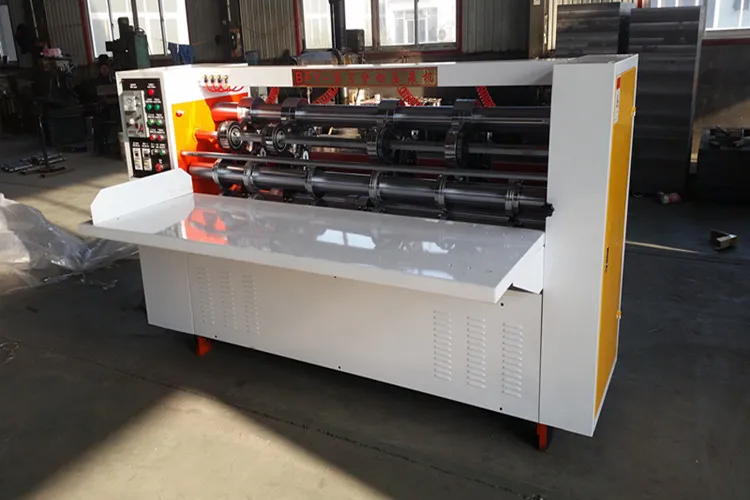

Real Machine Photos

Technological Parameters :

Model	BFY-2000	BFY-2500
Width of paper	2000mm	2500mm
Working speed	141m/min	141m/min
Sliting cutting	3-5	3-5
Minimum cutting width	200mm	20mm
Minimum pressure line width	50mm	50mm
Thin blade out diameter	260mm	260mm
Thin blade knife thickness	1mm	1mm
Power	4 kw	4 kw
Weight	2000 KG	2500 KG
Dimension	2630x1791x1130mm	3050x1791x1130mm

Function:

1). Pre-pressing paper feeding type, smoothly

2). Grind the blade edge with grindstone in two methods: manually

3). Sharp blade edge can slit the cardboard smoothly and neat.

4). Work process: Pre-pressing, slitting and creasing. Creasing line without crack.

5). The machine can be provided to corrugated paperboard production line.

Specification:

1). There are so many features such as firm in structure, cutting fast, high precision and pressure; the paper feeding can be convenient.

2). This machine is suitable for various kinds of high precision printing products.

3). The speed of press paper is fast and the pressure can be adjusted.

4). The starting and braking can be controlled by the electromagnetic clutch. You can press the button to do the cutting.

5). All of above make the machine easy and convenient to operate, the speed of pressing paper fast, safe and reliable, high precision in cutting.

Our services:

1) All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance services and supply of parts and components at cost price.

2)The equipments will be delivered accompanied with detailed installation and operation manual and related information.
