twine spool winding machine
- 900.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Single gross weight: | 100.0 KG; | Brand Name: | Lutong; |
| Single package size: | 100X80X120 cm; | Inside Diameter Range: | 20-50mm; |
| material: | plastic yarn; | Condition: | New; |
| Outside Diameter Range: | 100-250mm; | Place of Origin: | Shandong China; |
| Spool Capacity: | 2-3kgs; | Dimension(L*W*H): | 0.8*1.1*1.1m; |
| Selling Units: | Single item; | Power(W): | 8N; |
| Package Preview: | https://sc01.alicdn.com/kf/HTB10.Lyqx1YBuNjy1zcq6zNcXXa5.jpg_640x640.jpg; | After-sales Service Provided: | Field maintenance and repair service,Engineers available to service machinery overseas; |
| Certification: | BV; | Warranty: | 1 YEAR; |
| Arrange Width: | 200mm; | Weight: | 750kgs; |
| Application: | package; | Voltage: | 280v/320v; |
| Packaging Detail: | plywood case; |

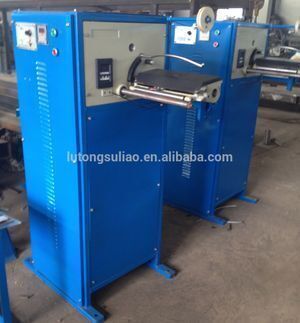

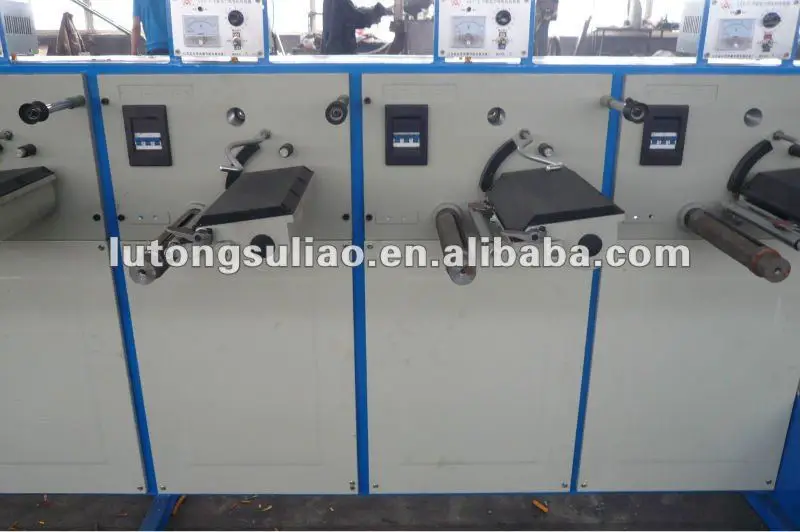

spool winding machine
Usage

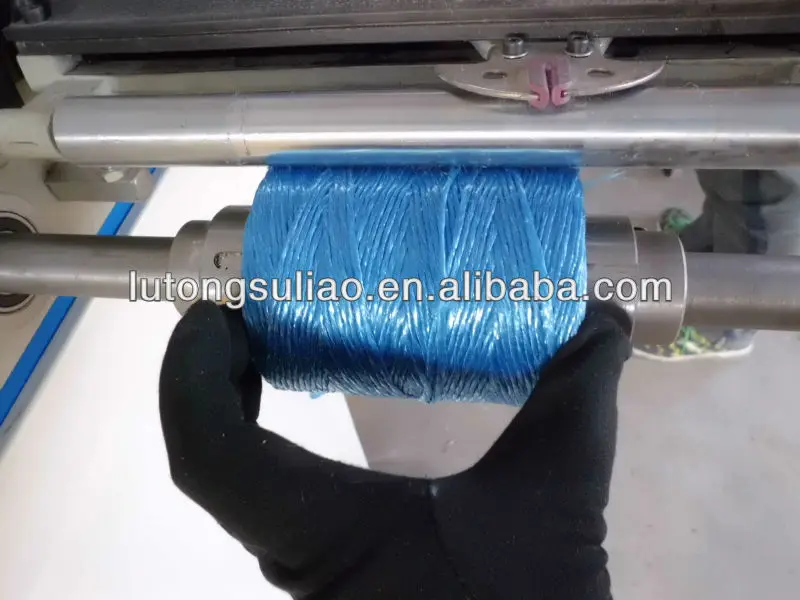

This machine is used for winding wrapping spool with pp yarn,pe thread,cotton string,jute twine,split film yarn,raffia twine. Etc… The finished products are widely used in commodity package,agricultural plant,baling stuffs. Different models are available, and 6”and 8”travelling distance are optional.
Advantages:
- Matched with meter counter, machine can stop automatically when yarn winding reach to settled meter.
- Tightness and pattern can be changing according to yarn diameter.
- One machine can be changed to different size axles according to requirement.
- Adopting conveying belt transfer,machine works stably and with low noise
Technical specifications:
Model | DZJ-6 | DZJ-8 |
Max. dia. of yarn | 4mm | 4mm |
Max. weight of coil | 2kgs | 3kgs |
Max. dia of coil | 200mm | 200mm |
Max. tension | 30-50kgs | 30-50kgs |
Travel distance | 6 inch | 8 inch |
Max. speed | 1400r/min | 1400r/min |
Moment motor | 6N | 8N |
Spindle quantity(optional) | 1 piece | 1 piece |
Output/ spindle | 20-25kgs/h | 25-30kgs/h |
Dimension | 0.8*1*1.1m | 0.8*1.1*1.1m |
Weight | 70kgs | 75kgs |
