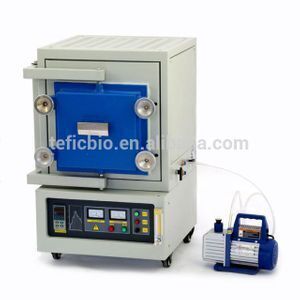

1700 Degree Heat Treatment Electric Vacuum Argon Atmosphere Sintering Furnace
-
Supplier: Xi'an Tefic Biotech Co., Limited -
Region: Shaanxi, China -
Contact: Ms Linda Zh -
Price: $100.00 /set -
Min. Order: 1 set
| Name: | 1700 degree atmosphere muffle furnace; | Supply Ability: | 10000 Set/Sets per Month atmosphere furnace; |
| Voltage: | 220V/110V; | Application: | Copper; |
| Power(W): | 2KW; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Dimension(L*W*H): | 430*473*692mm; | Temperature accuracy: | ±1℃; |
| Chamber size: | Customizable; | Delivery Detail: | 2 days; |
| Color: | Gray or Blue; | Warranty: | 12 Months; |
| Certification: | CE ISO; | Brand Name: | TEFC; |
| Brand Name: | TEFIC; | Type: | Box atmosphere muffle furnace; |
| Place of Origin: | Shaanxi China; | Heating elements: | MoSi2 heater; |
| Packaging Detail: | atmosphere sintering furnace packed by plastic foam inside, wooden box outside and according to custom requirement; | Condition: | New; |
| Port: | Shanghai Ningbo Shenzhen; | Max temperature: | 1700 degree; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; | Type: | Resistance Furnace; |
| Usage: | Muffle Furnace; | Model Number: | TA2-2-17TP; |
| Weight: | 50kg; | Working temperature: | 1600; |
1700 Degree Heat Treatment Vacuum Argon Atmosphere Sintering Furnace
1700 degree atmosphere muffle furnace Description
1700℃ atmosphere muffle furnace for universities, research institutes, industrial and mining enterprises to do the atmosphere to protect sintering, the ideal atmosphere to restore the equipment. With a uniform temperature, heating and cooling speed, energy saving, can access a variety of gases and so on.
1700 degree muffle furnace technical parameters:
Heating area | Depth100* Width100* Height100mm |
Working temperature | 1600℃ |
The highest temperature | 1700℃ |
| Max Vacuum | -0.1Mpa |
Heating up time | ≤30℃/Min |
Sealing way | 304 stainless steel KF flanges |
can get into atmosphere | All inert gases, nitrogen, argon, carbon dioxide, water vapor |
Temperature control accuracy | ±1℃ |
Heating element | MoSiO2 |
Thermocouple | K type |
Working voltage | 220V 50HZ/ 110v 60HZ |
power | 2KW |
Vacuum Pump | vp125 |
1700 degree atmosphere muffle furnace details of the figure
The advantage of 1700 degree muffle furnace
1.The electric furnace shell adopts double - layer forced air cooling structure, so that the external temperature of the furnace shell is close to room temperature at the highest temperature, and the highest temperature is not higher than 50 degrees
2. Furnace chamber material use of lightweight alumina ceramic fiber, has good heat preservation effect, light weight and high temperature resistance. Resistance to thermal shock. No cracks. No crystallization. Not to drop. Don't have to worry about pollution your products.The energy saving effect is 60-80% of the old furnace.
3. Temperature control adopts yu electric temperature control instrument, has a 30-50 segment programmable PID self-tuning. Automatic heating. Cooling automatically. Without unattended. Can also be equipped with RS485 communication interface [connected to the ordinary computer can start. Stop. Suspend heating. Can set temperature curve. Heating curves stored. Curve of historical records, and other functions
General specification parameters
Model | Furnace size | Voltage(V) | Power(KW) | External dimension |
TA2-2-17TP | 100*100*100 | 220V | 2 | 430*472*692mm |
TA2-4-17TP | 200*150*150 | 220V | 4 | 570*490*735mm |
TA2-9-17TP | 300*200*200 | 380V | 9 | 662*520*825mm |
TA2-16-17TP | 400*300*300 | 380V | 16 | 762*620*975mm |
Related muffule furnace
TEFIC Muffule Furnace Package
About Us:
Our customer
FAQ
1 Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2 Q: Can I ask for special designs about your furnace?
A: Yes, and it is free.
3 Q: What about the furnace delivery time?
A: Normally 2 days after receiving your payment or based on order Qty and production schedule.
4 Q: What about the guarantee period?
A: 12 months.
5 Q: What about the Minimum Order Quantity?
A: The MOQ is 1 Pcs
6.Q: How to Contact Us?
A: Give us your raw material,your master (general plot) plan,your capacity,your budget,and your other requirement.
