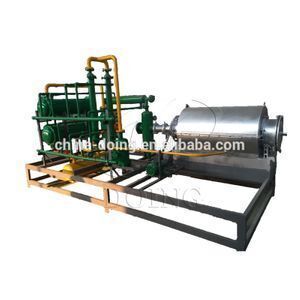

Mini 300kg/500kg Mobile type waste tire Pyrolysis Plant To Diesel

Waste tire pyrolysis plant can turn waste tyre to fuel oil with latest pyrolysis technology. Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.

  ---The Raw Materials and Oil Yield of Different Input---

Our waste tire pyrolysis plant can handle a variety of common tyres in life, and different tyres have different oil yield.

---The Product Application of DOINGwaste tire pyrolysis plant---

From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.

---The Main Working Process of DOING waste tire pyrolysis plant---

1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.

2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank.
3. The exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. Smoke produced by processing the tyres can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.

  ---Profit Analysis of DOING waste tire pyrolysis plant---

---The Main Advantages of DOING waste tire pyrolysis plant---

1. Safety
The waste tyre recycling pyrolysis plant business is equipped with mature safety devices, such as alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system and fire fighting device, which will guarantee 100% safety in the tyre to oil recycling process.
2. Energy-saving
By the extra gas recycling system, the gas that can not be condensed will be recycled to the burning room. It can replace the fuel material to heat the reactor, which will reduce additional fuel consumption.
3. Environment friendly
In the dedusting system, three steps (water spray, ceramic ring filter, washing chamber) are used to dedust the extra gas and more than 95% of the dust would be removed. The released gas is pollution-free and can be discharged into the air directly with ISO9001:2008,CE Certificate.

4.Strict requirements for quality
IQC:Incoming quality control,main raw material;
PQC:Process quality control,All the reactor is inspection by X-ray.

 ---Packagine&Shipping of DOING waste tire pyrolysis plant---

---Project Case of DOING waste tire pyrolysis plant---

By now we have installed hundreds of waste tyre recycling pyrolysis plant in about 60 countries:
Africa: Nigeria, Congo, Egypt, Uganda;
Europe: Romania, Poland, Italy, Macedonia, Albania, Turkey;
Asia: Malaysia, Pakistan, India, Thailand, Iran, Bangladesh, Lebanon, Jordan;
America: Mexico, Ecuador, Haiti, Guatamala, Aruba, Panama, Jamaica, etc.

 Below is the picture of the installation in some countries.

 Our waste tire pyrolysis plantare welcomed by quite a few customers from home and abroad, here are some of the feedbacks:

---After-sales service of waste tire pyrolysis plant---

1. Delivery time- It will be 10-15 days after we receive the deposit.

2. Warranty-The warranty period for reactor and other parts except spare parts is 1 year.

The problem caused by wrong operation of workers shall not be responsible by our company.
3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your worker.

We DOING Company as a leading manufacturer in China has specialized in all kinds of waste recycling machinery and the supporting equipments for about 10 years, 5 years experience for domestic market, and 5 years for foreign trading. Now we have the waste tire/plastic recycling machine, waste oil recycling machine, waste cable wire recycling machine, waste aluminum plastic panel recycling machine, waste PCB recycling machine and waste home appliance recycling machine which can be provided for you.

 1. How much does one set waste tire pyrolysis plant cost?
Different capacity of waste tire pyrolysis plant have different cost. And also different desgins of waste tyre recycling pyrolysis plant have different cost. For example, the new design of pyrolysis plant with 10ton capacity, it is about 45000-55000USD. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence, please contact our team.

2. Where can I sell the tyre pyrolysis oil ?
The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel in engine.

3. Can I visit your factory of waste tire pyrolysis plant?
Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have demo garbage recycling plant and running machine in our factory for your visiting. Welcome to your visit at any time!

4. Why Choose DOING company?
1. Qualified manufacturer and equipment with ISO and CE certificate;
2. Professional consulting team for offering free quote, market analysis and project guidance;
3. Technical department for providing technical support, project design and layout drawing;
4. Skillful installation team for field installation, commissioning and operation training;
5. Responsable after-sale service to keep customers away from troubles during daily operation.
