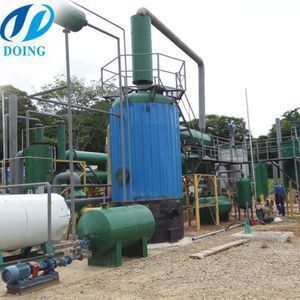

Used engine oil recycling to diesel machine, waste oil to diesel plant

Xinxiang DOING GROUP are specialized in manufacturing Used engine oil recycling to diesel machine (waste oil to diesel plant ), pyrolysis machine, pyrolysis plant, plastic to oil plant and oil distillation machine, oil refining machines, tire oil / plastic oil / engine oil / motor oil / ship oil refining plants. We have two workshops producing each line (pyrolysis machine and waste oil distillation machine), professional laboratory improving technology and demo plant which could show customers running machine. And rich experienced engineers guarantee installation of our equipment with good after -sale service.

waste plastic to fuel oil machine can convert waste tires, waste plastic, waste rubber to fuel oil, carbon, steel wire. Waste tire oil average rate is 45%-52%, plastic is 75%-95% for PP,PE,ABS etc.

waste oil to diesel plant can process waste engine oil, motor oil, black oil, tire oil, plastic oil to clean diesel. This kind of diesel can be used to tractors, trucks, diesel oil generator, power generator etc. Oil recovery average rate: 75%-90%.

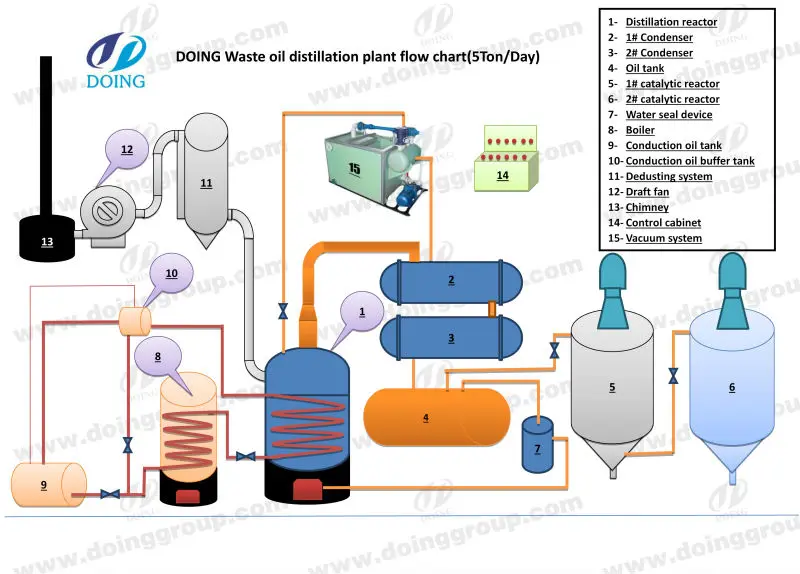

1. Firstly, put the raw material(tire oil, plastic oil, waste engine oil or other waste oils)  into the first reactor by oil pump.
2. Secondly, heating the oil by conduct oil and make the liquid oil in gas form.

3. Then cool the oil gas.

4. Next, put the cooling oil into the second reactor and mix with chemicals under the certain temperature situation.
5. Put the mixed oil from the second reactor to the third reactor and mix with another chemical, and subsites.
6. Lastly,get the diesel.
7. When the oil from the second reactor to the third, the raw material could put into the second reactor and process the next batch. The machine is continuous.

1. The waste oil to diesel plant is produced by our factory only,which cost our 2 years’ time to design and test. You can not find any machine like ours’.
2. waste oil to diesel plant  can be used to process waste plastic oil, waste tires oil, waste engineer oil, waste used oil to diesel.
3. There is indirect heating, that means it uses boiler to heating, which makes no pollutions and greatly increase the service life of machine.
4. Fast processing time. Using conduct oil and coiler to heating the fuel oil, well-distributed and fast.
5. Good quality diesel. The diesel could be used in the tractor,truck, engines, motors etc. directly.


Cooling System of Used engine oil recycling to diesel machine (waste oil to diesel plant):

1. Inside of horizontal condenser have 61 smaller pipes, the diameter of which is 48mm. Cooling area of each condenser can reach 50 square meters.
2. the whole cooling areas will be 100 squres meters. So it can guarantee oil gas maximumly cooling down to guarantee oil output.
3. Devided into 3 parts easy to insall and easy for clearance.

The vertical reactor of Used engine oil recycling to diesel machine (waste oil to diesel plant) :

 There are two reactors in the system and they are vertical reactors. The advantage of this type reactor is that it is very easy to clean. Before 2013, we also

produced the old design distillation machine and it looks like the pyrolysis machine which using a big horizontal reactor. This design is cheap. But it is difficult

to clean when finish one batch. As our customers say, they have to let one person into the reactor and to clean the slag leaves in the reactor. But you know,

the slag is thick black oil, it is very difficult to clean when it cold down. It spends hours to clean. There is no choice, because it is unsafe to clean the reactor

when the temperature is high. But now, it will be no problem. The slag could be easy to clean and it will be down through the bottom of the vertical reactors.

  The heating type of Used engine oil recycling to diesel machine (waste oil to diesel plant) :

      Using conduct oil to heat the whole system. The conduct oil goes through the coil pipes inside the reactor and make the heating uniformly.

The most important is that the indirect heating makes no pollutions and increase the service life of distillation machine.

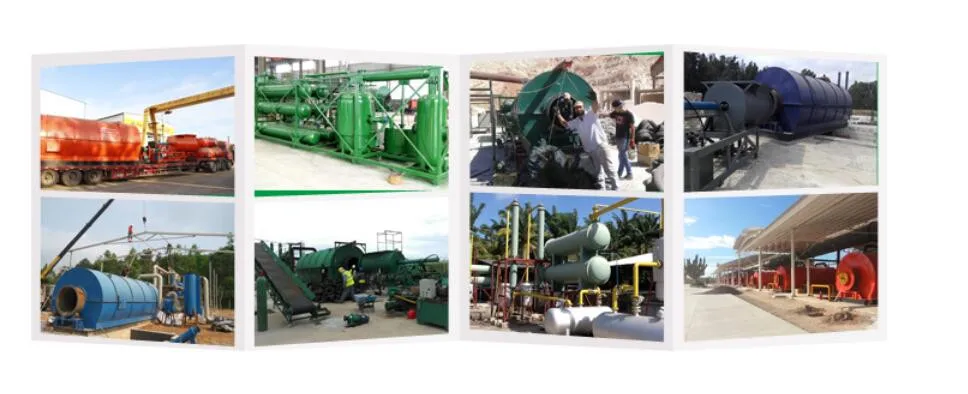

Customer case of Used engine oil recycling to diesel machine (waste oil to diesel plant)

More information about  waste oil to diesel plant (Used engine oil recycling to diesel machine) ,please don't hesitate to  contact us! Welcome to visit our factory!
