4mm Carbon Steel Sheet, Stainless Steel Sheet Welding by Fiber Laser Welding Machine

Product details
Cooling System:Water Cooling;Usage:Metal and Non-Metal;
Place of Origin:Hubei China;Welding Metarials:Metal and Non-Metal;
Warranty:2 years;Laser Source Brand:IPG;
Supply Ability:500 Set/Sets per Year;Payment Terms:L/C,T/T,Western Union;
Max. Output Power:1500W;Brand Name:EETO;
Port:WUHAN;After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Transmission Fiber Diameter:50~100um;Packaging Detail:Standard Shipping Package;
Certification:CE,ISO,SGS;Fiber Length:5, 10, 15m;
Dimensions:As per actual specifications;Max Welding Depth:4mm;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Advertising Company;Wavelength:1070nm;

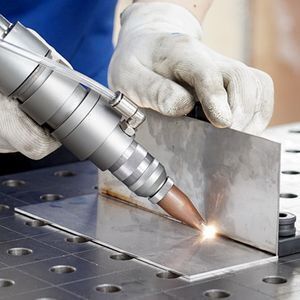

4mm Carbon Steel Sheet , Stainless Steel Sheet Welding by Fiber Laser Welding Machine

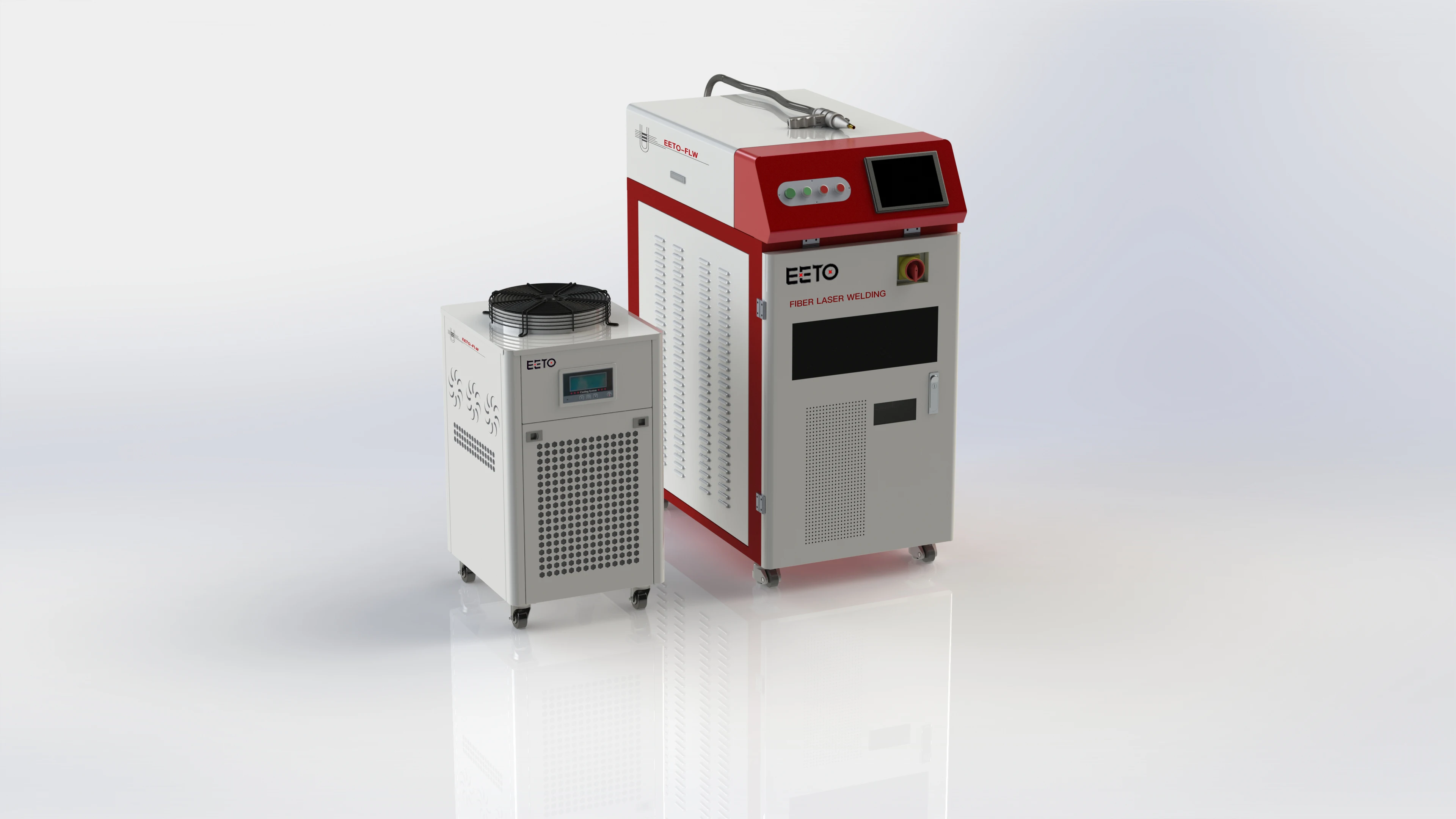

EETO-FLW Series Machines made by handhelder, easy to operate, applicable for all metal and non-metal materials, it macthes with various power of option. It used separated type with hand held gun.

Features :
high precision and easy operation,small size, flexible, convenient transportation
High electro-optic conversion efficiency, low energy consumption
Low consumable cost, low maintenance cost
Smaller heat-affected zone and thermal deformation
Excellent humain interaction, high levels of automation options available
Minimal noise, mminimal pollution and clean
Stable output power, can work in greenhouse or special conditions

Tech Infors :

ModelEETO-FLW Series
Laser SourceIPG(Germany)Laser Power1500W
Welding MetarialsMetal and Non-MetalWelding Thickness4mm
Laser ModeMultimodeLaser Wavelength1070nm
Working ModeContinuousPower Instability3%
Transmission Fiber Diameter50umMin Light Spot0.2mm
Fiber Length5,10,15mPower Adjusting Range5~95%
Cooling MethodWater CoolingPower Supply220V,50/60Hz

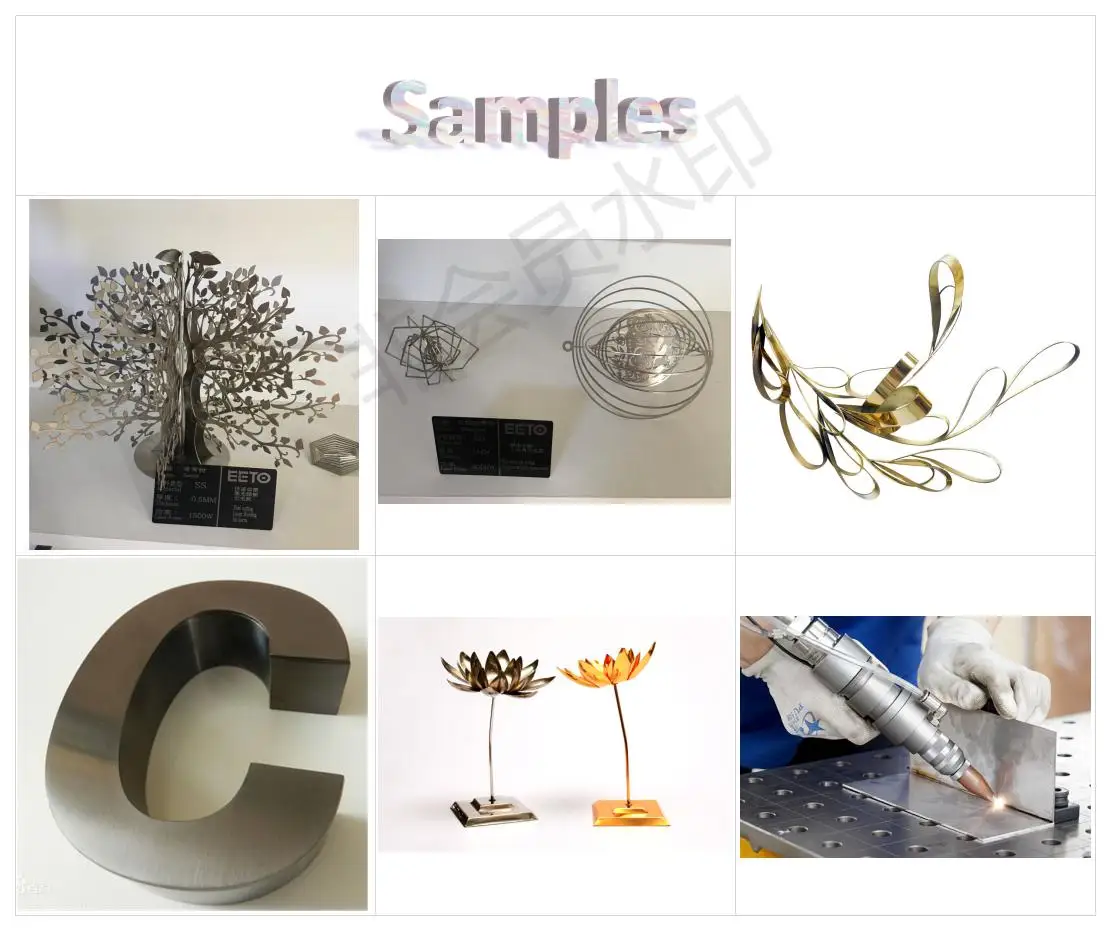

Application & Samples :
Applied for the welding of various metal letters, LED illuminated letters, customized metal signage, and exterior billboards.

Welding Materials:
Stainless steel, carbon steel, titanium, auminum, galvanized sheet, gold, silver and brass, etc


Q: What's the laser power of your fiber laser welding machine?
A:  We have laser power from 300-4000w, able to different metals with varied thickness
1. Low power 300W, 500W, 700W, 750W, 1000W, which welds metals lower than 2mm
2. Medium power 1500W, 2000W, able to weld steels up to 4mm

Q: What materials can we weld? What's welding thickness of fiber laser welding machine?
A: Fiber laser welding machine can weld  metal materials, including carbon steel/stainless steel/aluminum/galvanized sheet, but high reflective materials are restricted to be welded with fiber laser, like brass/silver/bronze, if you have such material to cut, please connect us for professional advice
B: Welding thickness from 0.5mm to 4mm according to different laser power.

Q: In case that machine has problem when customer use it, how to do after-sales service?
A: Two years warranty are guaranteed(Consumables are excluded) . Any problem occurs during warranty, you can connect us ASAP, we provide 24 hour on-line service, professional engineers are available at your service, if parts are needed for replacement, they will be sent out free-of-charge by express to ensure highest efficiency.
