plastic densifying machine/densifier details
Motor:SIEMENS Brand;Dimension(L*W*H):2200*1600*1700mm;
Product application:pelletizing;Warranty:2 years;
After-sales Service Provided:Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;Payment Terms:L/C,D/P,T/T;
Product name:plastic agglomerator;Place of Origin:Jiangsu China;
Condition:New;Packaging Detail:wooden case;
Key Selling Points:High Productivity;Certification:CE&ISO;
Brand Name:SEVENSTARS;Supply Ability:100 Set/Sets per Month;
Outputs:100-800kg/hr;Blade material:SKD-11;
Time of each batch:20min;MOTOR POWER:22-160kw;
Applicable Industries:Garment Shops,Building Material Shops,Manufacturing Plant,Farms,Restaurant,Home Use,Food Shop,Printing Shops,Construction works ,Advertising Company;Color:customized;
Port:Shanghai;Working way:automatic;
Raw material:PE/PP/PET;

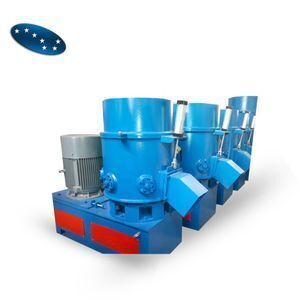

plastic densifying machine/densifier



Product Description



GHX Agglomerator makes waste plastic films and materials with less than 2mm wall thickness materials into granules. It is suitable for soft PVC, HDPE,LDPE, soft PE,PS, PP and other thermoplastic wastes and films and froth PS wastes. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is
sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing. The particles can be used for extrusion or injection mould machine directly. Also can be further pelletized for some advanced requirements.

We have the certification ISO9001:2000. So the quality of our products are reliable.

Technical parameter



+
ModelMotor powerOutput
GHL10037KW100KG/HR
GHX20055KW150KG/HR
GHX30075KW250KG/HR
GHX50090KW350K/HR
GHX800110KW550KG/HR
Detailed Images



Finished Products



Company Information



Contact information



My friend, if you want to know more details for this machine, welcome to contact with me:



Mobile phone number : +8618151137661 (Mr. Michael He) , thank you very much!
