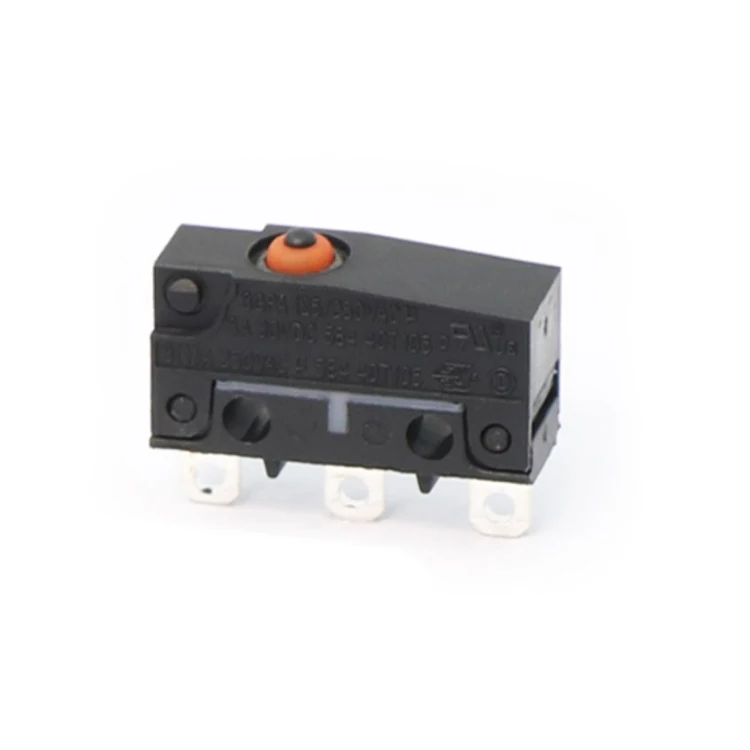

M132 Door 3 Pins Mini IP65 Waterproof 10T85 Micro Switch 5A 250VAC
- 0.60 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Detail: | M132 Door 3 Pins Mini IP65 Waterproof 10T85 Micro Switch 5A 250VAC 1: Neutral packing : inner box bubble+ inner box +carton 2:100 pcs/box; | Product Name: | 3 Pin Mini Micro Switch; |
| Circuit: | SPDT; | Cable soldering: | Acceptable; |
| Max. Voltage: | 250VAC; | Protection Level: | IP40; |
| Terminal Type: | Solder; | Sample Order: | Acceptable; |
| Place of Origin: | Zhejiang China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/ Alipay; |
| Max. Current: | 15A; | Supply Ability: | 1000000 Piece/Pieces per Week; |
| Housing Color: | Black(Green or Red available); | Actuator Form: | No Lever; |
| Port: | Ningbo, Shanghai,Wenzhou; | Operating Temperature: | -25℃ to +85℃; |
| Brand Name: | Aibeiken; | Contact: | Copper ( Silver available); |
| Model Number: | KS4-Z; | Enclosure Material: | Plastic; |
| Contact Resistance: | 30 mΩ max; |
M132 Door 3 Pins Mini IP65 Waterproof 10T85 Micro Switch 5A 250VAC
Product Description
| Product Name | Micro Switch |
| Brand | Aibeiken |
| Operating Speed | 0.1mm-1m/s |
| Actuator Form | No Lever |
| Circuit | SPDT |
| Terminal type | Solder Terminal |
| Delivery Time | 1-5 days |
| Contact | Copper (Silver available) |
| Housing Color | Black (Green or Red available) |
Our Services
About Us
Packing
micro switch 5a 250v,micro switch t85 5e4,kw10 mini micro switch,micro switch t125 5e4,kw3 oz micro switch,cherry micro switch,t85 micro switch,zippy micro switch,micro switch 16a 250v t85 5e4,waterproof micro switch, Short Lever Micro Switch
