FZG-15 High Quality Vacuum Food Dryers Vacuum Drying Machine

Product details
Type:Tray Dryer;Key Selling Points:Automatic;
Place of Origin:Zhejiang China;Capacity:64kg;
Batch Time:15-30 minute/bacth;Warranty:1 year;
Safety Protector:available;Condition:New;
Operation System:Touch Screen or Button operation;Packaging Detail:Vacuum Food Dryers packed into Anti moisture export standard wooden case can afford long time sea shipment;
Item Name:Vacuum Food Dryers;Port:Ningbo or Shanghai port;
Supply Ability:25 Set/Sets per Month Vacuum Food Dryers;Weight:2100KGS;
Working Principle:vacuum low temperature drying;After-sales Service Provided:Online support;
Material Consist:SS304(SS316 is available);Model:FZG-15;
Application:liquid and solid;Power(W):11kw;
Voltage:220V 50HZ;Application:Medicine Processing;
Control System:PLC control or Micro computer;Brand Name:LTPM CHINA;
Certification:CE;Dimension(L*W*H):2060*1513*1924mm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash for Vacuum Food Dryers is available;Applicable Industries:Farms,Restaurant,Printing Shops,Food & Beverage Shops;

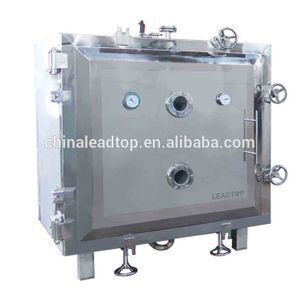

FZG-15 High Quality Vacuum Food Dryers

Description

Vacuum drying machine for vegetable is divided into static and dynamic, Model YZG round vacuum drier and Model FZG square vacuum drier belongs to static drier.
It is suitable for drying heat sensitive raw materials which often decompose, polymerize or metamorphose under high temperature. It is widely used in the final of pharmaceutical, chemical, foodstuff and electronic industry.

Principle

To heat and dry raw material under the state of vacuum is called vacuum drying. It use vacuum to pump air and humidity out. Making the work-room on the vacuum state. The drying rate increases greatly and energy is saved.
Note: if use condenser, the solvent in raw material can be recovered. If use SK series water ring vacuum pump or ZSWJ series hydraulic inject vacuum pump sets, condenser can not be used and the investment could be saved







+

Main Technical Data

Item Model

YZG-600

YZG-1000

YZG-1400

FZG-15

Interior size of chamber(mm)

Ø 600*976

Ø 1000*1527

Ø 1400*2054

1500*1220*1400

Exterior size of chamber(mm)

1153*810*1020

1740*1226*1385

2386*1657*1800

2060*1513*1924

Layers of baking shelf

4

6

8

8

Interval of baking shelf

81

98

102

122

Size of baking tray(mm)

310*600*45

460*640*45

460*640*45

460*640*45

Number of baking tray

4

12

32

32

Drying capacity(kg)

8

24

64

64

Permitted pressure inside the pipe of baking shelf

≤0.784

≤0.784

≤0.784

≤0.784

Temperature inside chamber(°C)

≤150

≤150

≤150

≤150

Vacuum level inside chamber without load

-0.09~0.096

-0.09~0.096

-0.09~0.096

-0.09~0.096

Type and powder of vacuum pump without condenser

SK-1.5 4w

SK-3 5.5w

SK-6 11w

SK-6 11w

Weight of drying chamber(kg)

250

800

1000

2100









Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



Q: What payment terms you take?

A: TT, LC, other terms are also workable.



Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.



Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
